Compatibility
This part will fit the following 16 machines. Confirm this part works with your model, and view the detailed model diagrams and repair help we have to offer.
ToroToro 13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A319H10001 - 1L319H19999) (2009 & After)42 Inch Deck Spindle and Belt Drive Assembly
ToroToro 13AX60RG848 (LX 423) - Toro Lawn Tractor (2009)42 Inch Deck Spindle and Belt Drive Assembly
ToroToro 13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A019H10001 - 1A309H19999) (2009 & Before)42 Inch Deck Spindle and Belt Drive Assembly
ToroToro 13AL60RG544 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008)Deck Assembly
ToroToro 13BX60RG748 (LX 425) - Toro Lawn Tractor (SN: 1E087H10251 & Above) (2007)Deck Assembly
Description

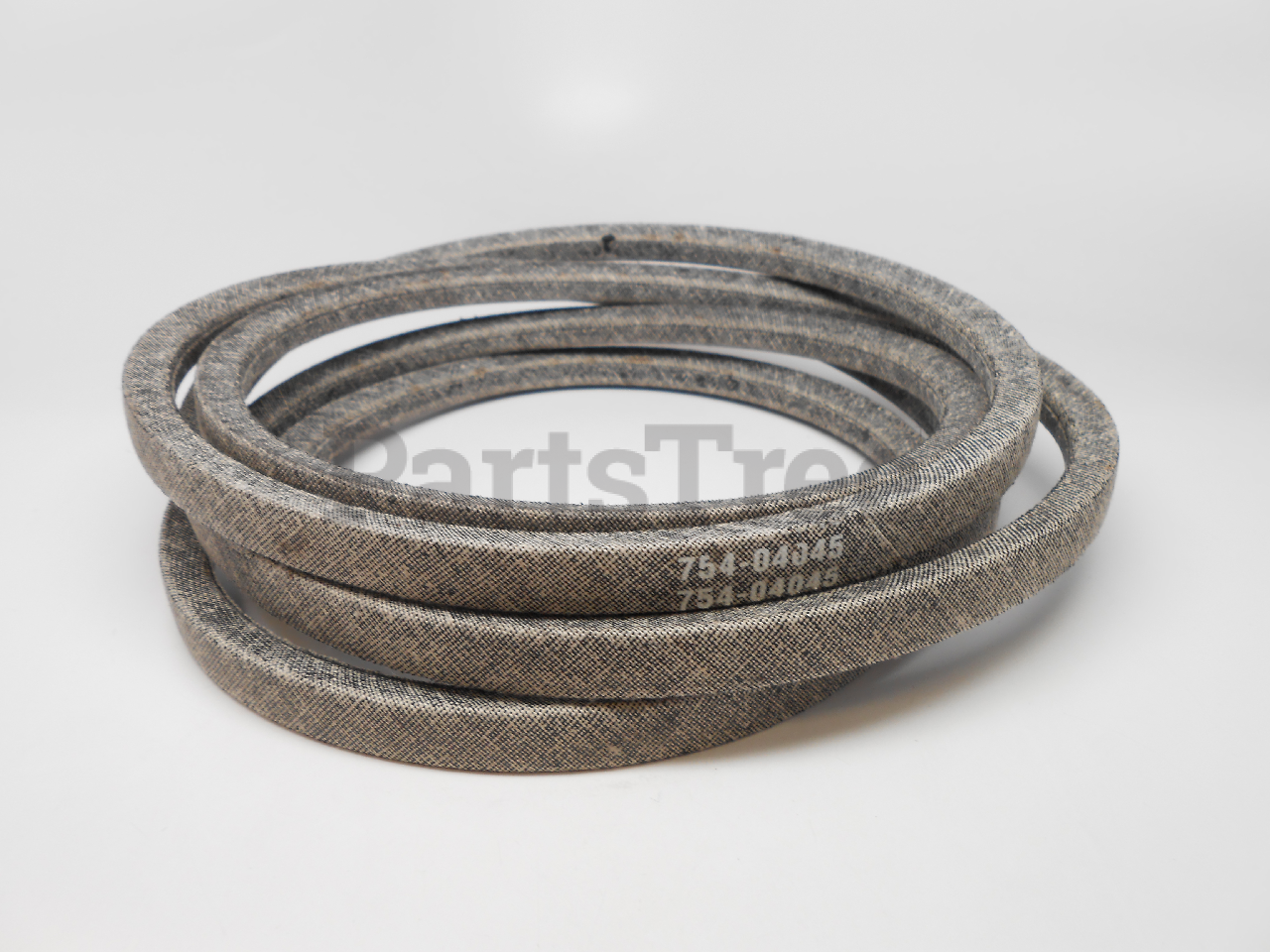

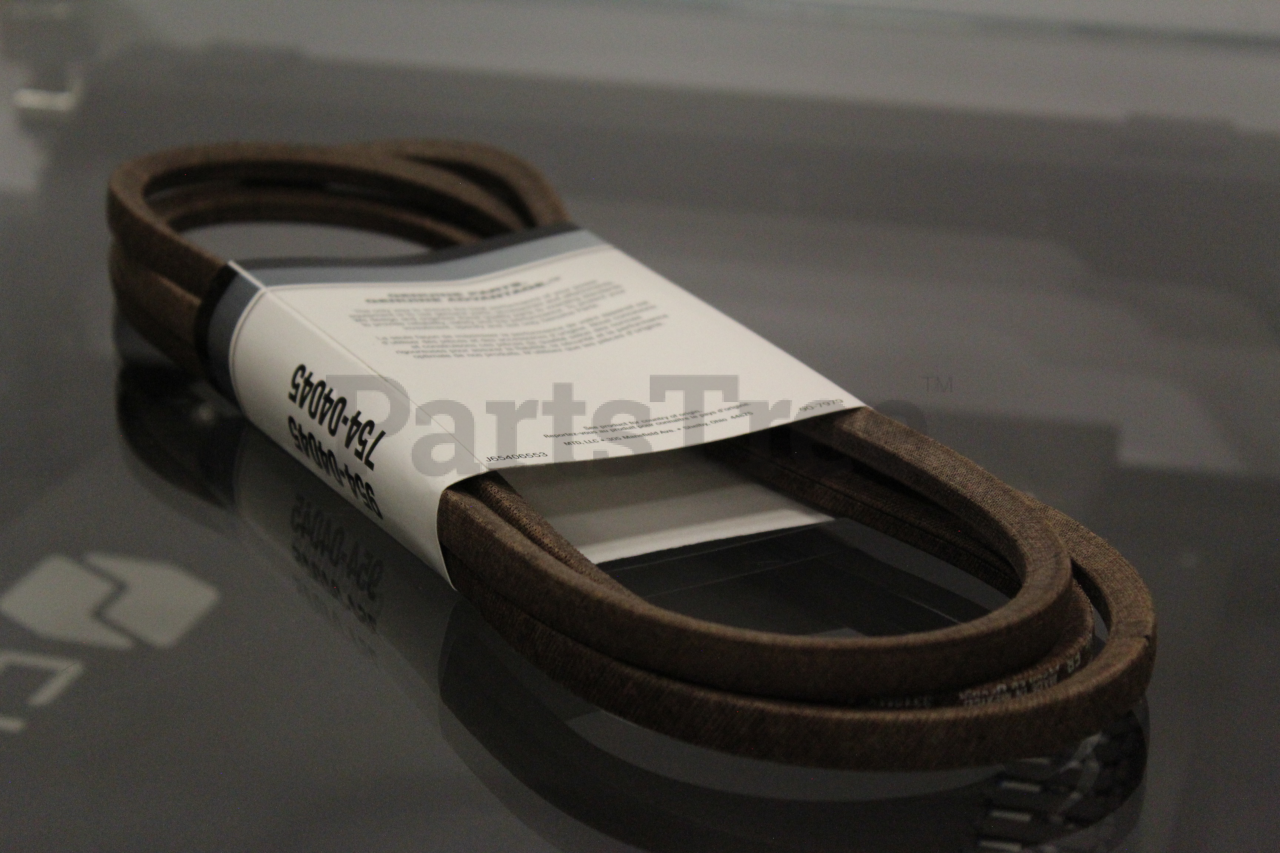

The purpose of the Belt is to drive smooth movement within your equipment. Belts are most often found within the engine and cutting deck. The belt length and shape varies based on the system, but most are V-shaped or Cogged. The most common signs that a belt needs to be replaced are the appearance of a shiny, glazed, or burned spot on the side wall or if the belt appears brittle or shows small cracks. Before removing a belt during your repair task, make note of its exact routing around the pulley system.
