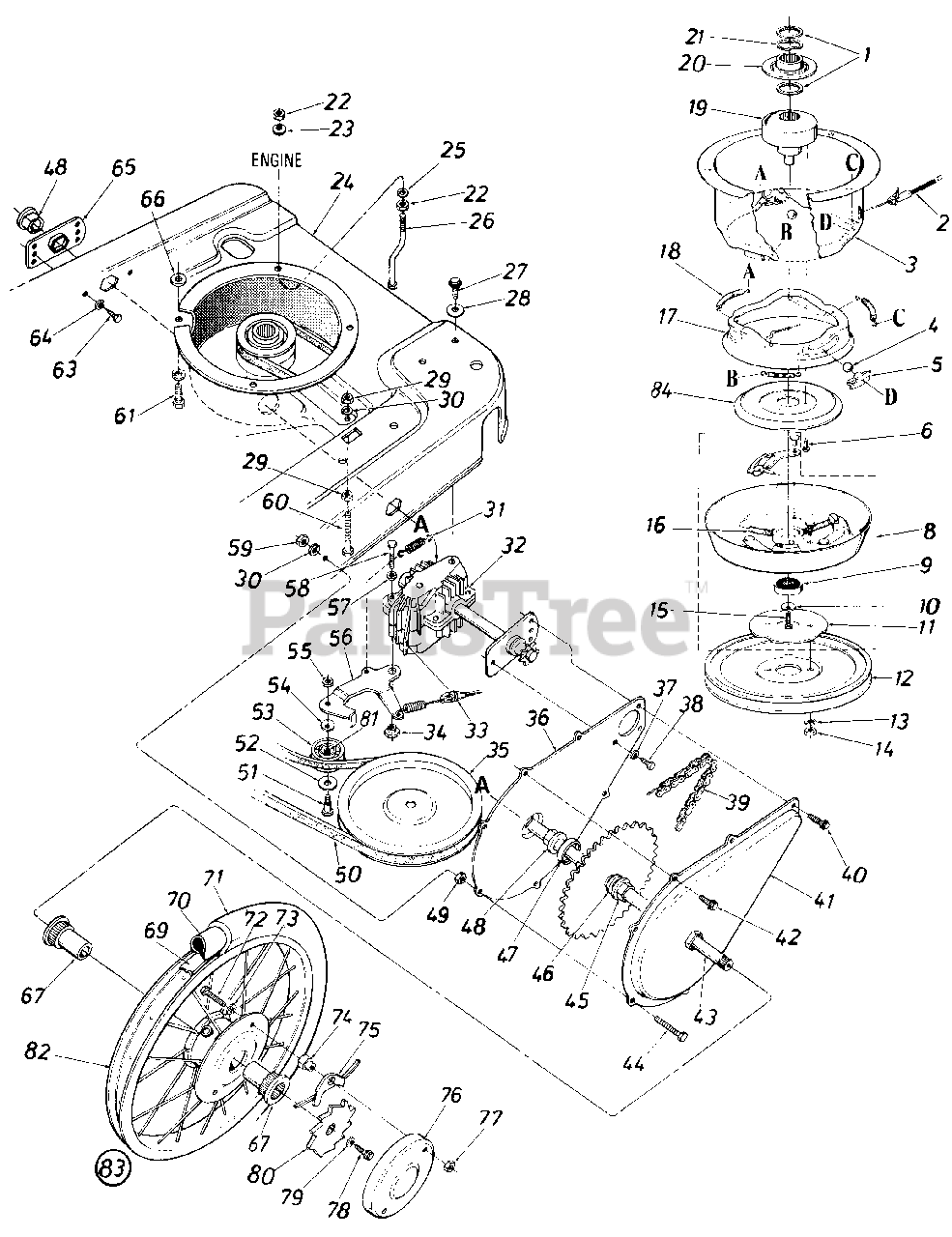

MTD 12560-7 - MTD Walk-Behind Mower (1987) Hi-Wheel Parts Lookup and Diagrams

Back to Walk-Behind Mowers

Search within parts diagrams

All Diagrams (4) Hi-Wheel Hi-Wheel Hi-Wheel Hi-Wheel

Hi-Wheel Parts

MTD 16509

Clutch Housing

Unavailable

MTD 736-0409

Serrated Washer

Superseded toMTD 936-0409

Unavailable

MTD 746-0400A

Clutch Cable

Superseded toMTD 946-0405

Unavailable

MTD 16509

Clutch Housing

Unavailable

MTD 741-0326

Steel Ball .500" Dia.

Unavailable

MTD 731-0520

Ball Block

Unavailable

MTD 710-0875

Hex Washer Head Screw, 1/4

In stock, only 1 left!

$4.49

MTD 717-0888

Clutch Blade Housing Ass'y.

(Incl. Ref. Nos. 19 & 84)

Currently unavailable

MTD 741-0124

Ball Bearing

Superseded toMTD 941-0600

In stock, 20+ on hand

$26.99

MTD 736-0412

Bell-Wash. 44" I.D. x .87" O.D.

Unavailable

MTD 14302

HOUSING ASSY-W/FPA

Currently unavailable

MTD 756-0483

5/8 "V"-Pulley 1.58 I.D. x 8.0" O.D.

Unavailable

MTD 736-0169

Lock Washer, .375"

Superseded toMTD 936-0169

Unavailable

MTD 712-0328

Hex Nut, 3/8-24

Superseded toMTD 712-0241

In Stock, Qty 14

$4.99

MTD 710-1002

Hex Screw, 7/16

Usually ships in 3 - 6 days

$7.49

MTD 732-0527

Comp. Spring .33" O.D. x 2.05" Lg.

Unavailable

MTD 14305

CONE-BRAKE CUP

Currently unavailable

MTD 732-0545

Extension Spring, .35" OD X 1.80"

Superseded toMTD 932-0545

Unavailable

MTD 756-0504

Fixed Pulley MBC Adapter

Unavailable

MTD 756-0503

PULLEY-MOVABLE

Usually ships in 3 - 6 days

$7.99

MTD 736-0408

Wave Washer

Superseded toMTD 936-0447

Unavailable

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 736-0242

Bell Washer, .337" X .867" X .057"

In stock, 20+ on hand

$4.99

MTD 16505

FRAME-HI WHEEL

Currently unavailable

MTD 736-0119

Lock Washer, .03125"

Superseded toMTD 936-0119

In stock, 20+ on hand

$4.99

MTD 710-0973

Belt Guard 5/16" Bolt

Unavailable

MTD 710-0603

SCREW-HEX WASH HD

Usually ships in 3 - 6 days

$5.49

MTD 736-0219

Bell Washer

Superseded toMTD 936-0219

In stock, only 1 left!

$4.49

MTD 712-0287

Hex Nut, 1/4-20

Superseded toMTD 912-0287

Unavailable

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 1 left!

$4.99

MTD 732-0357

Extension Spring

Superseded toMTD 932-0357A

Unavailable

MTD 717-0417

Transmission, Complete

(See Breakdown)

Superseded toMTD 917-0417B

Usually ships in 3 - 6 days

$234.99

MTD 746-0650

Clutch Cable, 50

Superseded toMTD 946-0650

Usually ships in 3 - 6 days

$47.99

MTD 738-0440

Shoulder Spacer

In stock, only 1 left!

$6.49

MTD 756-0330

PULLEY

Superseded toMTD 756-0330A

Unavailable

MTD 16504

45 Tooth Chain Cover

Unavailable

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 1 left!

$4.99

MTD 710-0352

B-Tap Hex Screw, 1/4 X .38

In stock, only 2 left!

$4.99

MTD 713-0257

#48 Chain .500" Pitch x 52 Links

Unavailable

MTD 710-0599

Self-Tapping Hex Washer Head Screw

In stock, 20+ on hand

$4.49

MTD 16503

45 Tooth Chain Case

Unavailable

MTD 710-0352

B-Tap Hex Screw, 1/4 X .38

In stock, only 2 left!

$4.99

MTD 713-0402

Rear Axle Ass'y. 26.82" Lg.

Unavailable

MTD 710-0281

SCREW-HEX 1/4-28 X

Usually ships in 3 - 6 days

$6.49

MTD 741-0481

BEARING-HEX FLANGE

Currently unavailable

MTD 736-0256

Flat Washer

Superseded toMTD 936-0256

Usually ships in 3 - 6 days

$7.99

MTD 748-0313

SPACER-.630 X 1.25

Usually ships in 3 - 6 days

$3.99

MTD 741-0413

Hex Flange Bearing

Superseded toMTD 941-0413

Usually ships in 3 - 6 days

$10.99

MTD 712-0314

Hex Jam Nut, 1/4-28

Usually ships in 3 - 6 days

$3.99

MTD 754-0327

"V"-Belt

Superseded toMTD 954-0327

Unavailable

MTD 738-0691

SCREW-SHLD

Superseded toMTD 938-0691

Unavailable

MTD 736-0344

Flat Washer

In stock, 20+ on hand

$4.99

MTD 756-0447

Pulley Kit

Superseded toMTD 753-0518

Usually ships in 3 - 6 days

$29.99

MTD 736-0270

Spring Bell Washer. .265 x .75 x .062

In stock, 20+ on hand

$4.49

MTD 712-0138

Hex Nut, 1/4-28

Superseded toMTD 912-0138

Unavailable

MTD 16502

Idler Brk't. Ass'y.

Unavailable

MTD 736-0722

WASHER-LOCK #10

Usually ships in 3 - 6 days

$7.49

MTD 710-0106

Hex Screw, 1/4-20 X 1.25

In Stock, Qty 8

$4.49

MTD 712-0138

Hex Nut, 1/4-28

Superseded toMTD 912-0138

Unavailable

MTD 710-0501

Hex Screw, 1/4"-20

In stock, only 2 left!

$7.99

MTD 710-0654

Hex Screw

Superseded toMTD 710-0654A

In stock, 20+ on hand

$4.99

MTD 710-0352

B-Tap Hex Screw, 1/4 X .38

In stock, only 2 left!

$4.99

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 1 left!

$4.99

MTD 16500

BEARING-CUP HEX

Superseded toMTD 16500A-0637

Usually ships in 3 - 6 days

$8.99

MTD 736-0185

Flat Washer

Superseded toMTD 936-0185

Unavailable

MTD 741-0485

Flange Bearing .630" I.D. x 2.83" Lg.

Unavailable

MTD 734-1400

RIM STRIP

Unavailable

MTD 734-1397

Inner Tube 16 x 2.12

Unavailable

MTD 734-1396

Chevron Tire 16 x 2.125

Unavailable

MTD 710-0376

Hex Screw, 5/16"-18 X 1.0" Grade 5

In Stock, Qty 16

$4.49

MTD 736-0104

WASHER-INTERN

Superseded toMTD 936-0104

Usually ships in 3 - 6 days

$5.49

MTD 712-0329

Special Hex Nut 5/16-18 Thd.

Unavailable

MTD 748-0315

Pawl

Usually ships in 3 - 6 days

$15.99

MTD 14967

Wheel Cover 4.75" I.D.

Unavailable

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 710-0782

Hex Wash. Hd. Self-Tap Screw 1/4" x 3/4" Lg.

Unavailable

MTD 736-0270

Spring Bell Washer. .265 x .75 x .062

In stock, 20+ on hand

$4.49

MTD 748-0312

RACHET-WHEEL

Unavailable

MTD 741-0482

Needle Brg. .375" x .31"

Superseded toMTD 741-0875

Unavailable

MTD 734-1399

Rim Ass'y. Only 16.0" x 2.1

Unavailable

MTD 734-1398

Wheel Ass'y. Comp. 16 x 2.12

Unavailable

MTD 14304

Clutching Cone

Unavailable
