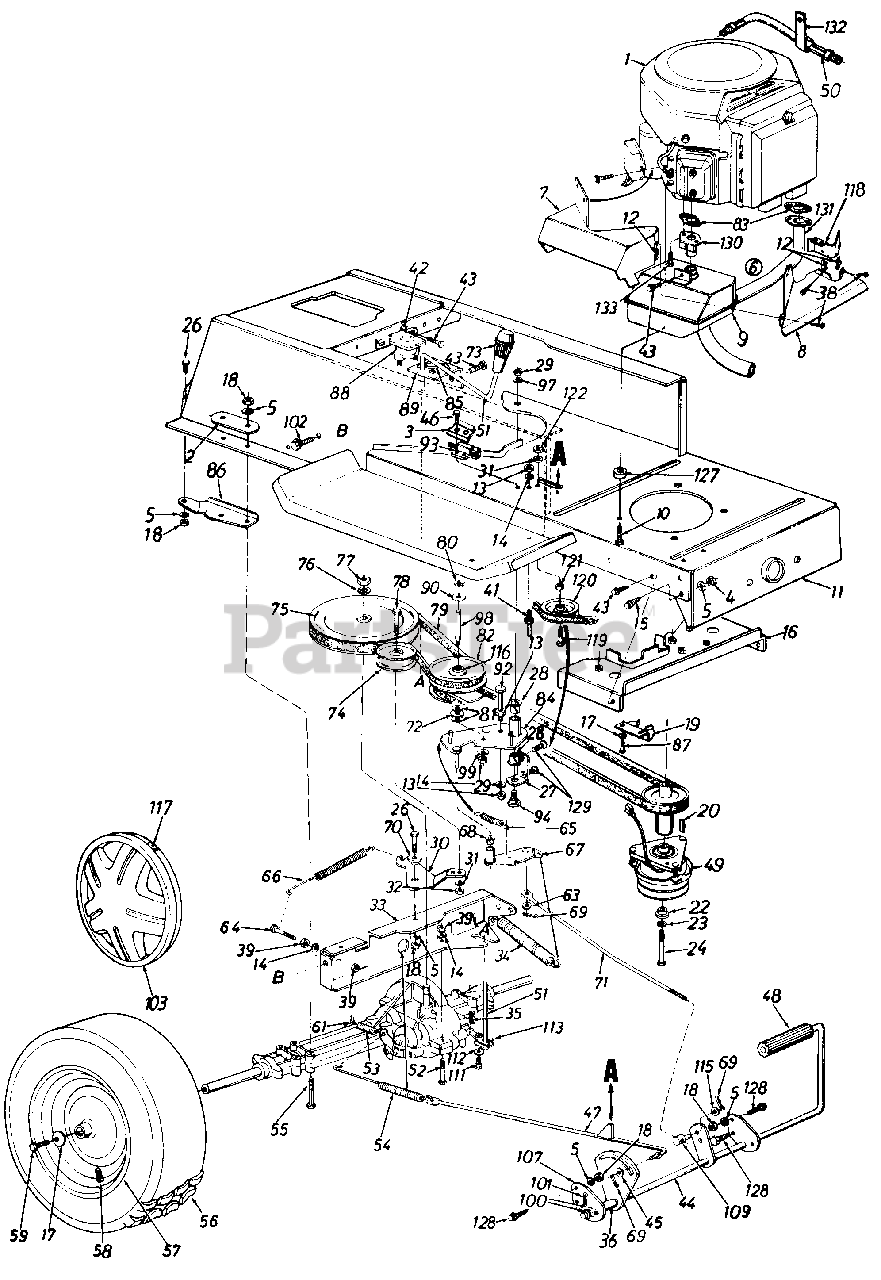

MTD 131-684G - MTD Lawn Tractor (1991) Lawn Parts Lookup and Diagrams

Back to Lawn & Garden Tractors

Search within parts diagrams

All Diagrams (9) 42" Electrical Lawn Lawn Lawn Lawn Lawn Single Single

Lawn Parts

MTD 714-0470

Cotter Pin, 1/8 X 1.25

Superseded toMTD 914-0470

Unavailable

MTD 736-0427

WASHR-BELL

(used with 618-0002 transaxle)

Superseded toMTD 936-0427

Unavailable

MTD 656-0004

Splined Transmission Pulley

Usually ships in 3 - 6 days

$127.99

MTD 712-3035

Hex Jam Nut, 9/16-1

(used with 618-0002 transaxle)

Usually ships in 3 - 6 days

$7.49

MTD 756-0565

Engine Pulley

Currently unavailable

MTD 754-0280

Belt, .700" X 53.17"

Superseded toMTD 954-0280A

In stock, 20+ on hand

$48.99

MTD 17669

Axle Support Bracket

(Not Shown)

Superseded toMTD 17669A-0637

Unavailable

MTD 734-1596

TIRE-TUBELESS 20X8

Superseded toMTD 734-1730-0901

In stock, only 2 left!

$105.99

MTD 710-0776

Hex Screw, B-Tap .1/4"-14 X .625"

Superseded toMTD 710-0896

In Stock, Qty 10

$4.49

MTD

Engine

MTD 17840

BRACKET-TRANS MTG

Usually ships in 3 - 6 days

$12.99

MTD 17962

Switch Plate

In Stock, Qty 11

$5.49

MTD 712-0123

Hex Nut, 5/16-24

Superseded toMTD 912-3057

In Stock, Qty 15

$7.49

MTD 736-0119

Lock Washer, .03125"

Superseded toMTD 936-0119

In stock, 20+ on hand

$4.99

MTD 751-0469A

Muffler Ass'y. Comp.

Unavailable

MTD 16875A

Muffler Heat Shield

Unavailable

MTD 16876A

Front Heat Shield

Unavailable

MTD 751-0472

Exhaust Muffler Sub Ass'y.

Unavailable

MTD 710-1035

Hex L-Washer Screw

Usually ships in 3 - 6 days

$10.99

MTD 17620B

Lower Frame Ass'y.

Unavailable

MTD 712-0147

NUT-SPEED-10-24

Usually ships in 3 - 6 days

$7.49

MTD 712-0287

Hex Nut, 1/4-20

Superseded toMTD 912-0287

Unavailable

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 1 left!

$4.99

MTD 710-0604

Hex Washer Head Screw, 5/16"-18

Superseded toMTD 710-0604A

In stock, 20+ on hand

$4.99

MTD 17358B

Belt Guard Bracket

Superseded toMTD 17358D-0637

Unavailable

MTD 736-0242

Bell Washer, .337" X .867" X .057"

In stock, 20+ on hand

$4.99

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 17418

Torque Bracket

Unavailable

MTD 714-0118

Square Key, 1/4 X 1.5"

In stock, only 2 left!

$7.49

MTD 738-0785

Spacer, 1.38 X .445 X .36

Superseded toMTD 938-0785

In Stock, Qty 8

$27.99

MTD 736-0171

Lock Washer, .4375"

In stock, 20+ on hand

$4.99

MTD 710-1067

BOLT-HEX 7/16-20X5

Usually ships in 3 - 6 days

$16.99

MTD 710-0118

Hex Screw, .313" X .75"

Superseded toMTD 710-3008

In Stock, Qty 11

$4.49

MTD 17963

Bearing Shaft Bracket Ass'y.

Unavailable

MTD 741-0295

Flange Bearing

Superseded toMTD 941-0591

Unavailable

MTD 712-0241

Hex Nut, 3/8-24

In Stock, Qty 14

$4.99

MTD 17643

Idler Bracket

In stock, only 4 left!

$11.99

MTD 736-0169

Lock Washer, .375"

Superseded toMTD 936-0169

Unavailable

MTD 712-0241

Hex Nut, 3/8-24

In Stock, Qty 14

$4.99

MTD 17629

Trans Support Bracket

Superseded toMTD 17629A-0637

Unavailable

MTD 732-0556

Extension Spring, 7.58"

Superseded toMTD 932-0556

In Stock, Qty 12

$22.99

MTD 714-0149B

Internal Cotter Pin

Superseded toMTD 914-0149B

Unavailable

MTD 750-0802

SPACER-5/8 ID X 2.

Usually ships in 3 - 6 days

$7.49

MTD 710-0224

Screw, Hex Ab-Tap

Superseded toMTD 910-0224

In Stock, Qty 13

$3.99

MTD 712-0138

Hex Nut, 1/4-28

Superseded toMTD 912-0138

Unavailable

MTD 711-0747

Belt Guard Rod

Superseded toMTD 911-0747

Usually ships in 3 - 6 days

$10.99

MTD 736-0222

External Washer

Superseded toMTD 936-0222

Unavailable

MTD 710-0599

Self-Tapping Hex Washer Head Screw

In stock, 20+ on hand

$4.49

MTD 17715A

Clutch/Brake Pedal Ass'y.

Unavailable

MTD 736-0117

Flat Washer

Superseded toMTD 936-0117

In stock, only 1 left!

$7.49

MTD 710-0351

Truss Machines Screw, #10-16

In Stock, Qty 19

$4.99

MTD 17686

Brake Rod Ass'y.

Unavailable

MTD 735-0196

Foot Pad, 4.0" Lg

Superseded toMTD 735-0239A

Usually ships in 3 - 6 days

$12.99

MTD 717-0983

Electric Clutch

Unavailable

MTD 727-0434

Oil Drain

Unavailable

MTD 17705

Shift Lever Assembly

Unavailable

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

Unavailable

MTD 732-0264

Extension Spring, .375" X 2.50"

Superseded toMTD 932-0264

In Stock, Qty 5

$5.49

MTD 732-0413

Spring

Superseded toMTD 932-0413

Unavailable

MTD 710-0176

Hex Screw, 5/16"-18

In stock, only 3 left!

$4.99

MTD 734-1675

WHEEL ASSY W/TIRE-

Superseded toMTD 634-0104-0941

Usually ships in 3 - 6 days

$540.99

MTD 734-0603A

WHEEL RIM

Superseded toMTD 634-04369

Usually ships in 3 - 6 days

$142.99

MTD 734-0255

Air Valve, Tubeless

(Service Only)

Superseded toMTD 934-0255

In stock, 20+ on hand

$4.49

MTD 710-0627

Lock Cap Screw, 5/16"-24 X .75"

In stock, 20+ on hand

$4.49

MTD 732-0454

Brake Return Spring

Superseded toMTD 932-0722A

In stock, only 2 left!

$13.99

MTD 736-0275

Flat Washer

Superseded toMTD 936-0275

Unavailable

MTD 710-0428

Hex Screw, 1/4-28

Usually ships in 3 - 6 days

$2.49

MTD 732-0568

Extension Spring

Superseded toMTD 932-0568

Unavailable

MTD 732-0384

Extension Spring, .62" X 6.12"

Superseded toMTD 932-0384

Unavailable

MTD 16554A

Torque Bracket Assembly

Usually ships in 3 - 6 days

$21.99

MTD 741-0419

Flange Bearing

Unavailable

MTD 714-0111

Cotter Pin, 3/32 X 7/8

Superseded toMTD 914-0111

Unavailable

MTD 748-0234

Shoulder Spacer

In stock, only 4 left!

$4.99

MTD 747-0530

Control Link

Superseded toMTD 747-0530A

Usually ships in 3 - 6 days

$14.99

MTD 741-0405

Thrust Bearing

Superseded toMTD 941-0405

Unavailable

MTD 720-0232

Shift Knob

Superseded toMTD 920-0232

In Stock, Qty 8

$11.99

MTD 756-0437

Flat Idler Pulley, 3.12" Dia

Superseded toMTD 756-0643A

In Stock, Qty 15

$43.99

MTD 756-0557

"V"-Pulley

Unavailable

MTD 736-0921

Lock Washer, .50"

(used with 717-0542 transaxle)

In stock, 20+ on hand

$4.99

MTD 712-0922

Nut

(used with 717-0542 transaxle)

Superseded toMTD 712-3029

In Stock, Qty 5

$7.49

MTD 710-0539

Hex Screw, 3/8"-24

In Stock, Qty 10

$4.99

MTD 754-0370

Belt, .715" X 48.50"

Superseded toMTD 954-0370

In stock, 20+ on hand

$43.99

MTD 716-0114

Snap Ring, .562

Superseded toMTD 916-0114

In stock, only 3 left!

$7.49

MTD 736-0355

Washer, .575 X 1.05

In Stock, Qty 12

$4.49

MTD 717-0800

Variable Speed Pulley, 5"

Superseded toMTD 917-0800A

In stock, only 4 left!

$260.99

MTD 721-0218

Exhaust Gasket

Superseded toMTD BS-691613

In stock, 20+ on hand

$5.49

MTD 16354B

Variable Speed Brkt. Ass'y.

Unavailable

MTD 732-0525

Spring Clip, Comp

In stock, only 2 left!

$10.99

MTD 17668

Axle Support Bracket

Superseded toMTD 17668A-0637

Unavailable

MTD 710-3008

Hex Screw, .313" X .75"

In Stock, Qty 11

$4.49

MTD 725-1426

Solenoid, 12 Volt 100 Amp

Superseded toMTD 925-1426A

In stock, 20+ on hand

$28.99

MTD 17630

BRACKET-SHIFT LEVER

Superseded toMTD 17630A-0637

Usually ships in 3 - 6 days

$16.99

MTD 736-0414

Washer, Teflon .565

Superseded toMTD 936-0414

Unavailable

MTD 710-1136

Hex Bolt 1/4-20 x 3.25" Lg.

Unavailable

MTD 725-3169A

Screw Mount Interlock Switch

Superseded toMTD 925-04039

In Stock, Qty 9

$25.99

MTD 738-0755

Shoulder Screw

Superseded toMTD 938-0755

In stock, only 2 left!

$15.99

MTD 736-0105

Bell Washer, .400" X .060" X .88"

In stock, 20+ on hand

$4.99

MTD 738-0569

Shaft, .56" Dia X 3.875"

Superseded toMTD 938-0569

In stock, only 4 left!

$35.99

MTD 736-0331

Bell Washer

In stock, 20+ on hand

$3.99

100

MTD 736-0256

Flat Washer

Superseded toMTD 936-0256

Usually ships in 3 - 6 days

$7.99

101

MTD 714-0470

Cotter Pin, 1/8 X 1.25

Superseded toMTD 914-0470

Unavailable

102

MTD 710-0604

Hex Washer Head Screw, 5/16"-18

Superseded toMTD 710-0604A

In stock, 20+ on hand

$4.99

103

MTD 734-1614

Hub Cap-Beige

Unavailable

107

MTD 17860

BRACKET-PEDAL

Unavailable

109

MTD 711-0198

Adjustment Ferrule, 3/8 X 24

Superseded toMTD 911-0198

In Stock, Qty 7

$14.99

111

MTD 710-0195

Hex Screw, 1/4-28

Superseded toMTD 910-0195

Usually ships in 3 - 6 days

$3.99

112

MTD 736-0270

Spring Bell Washer. .265 x .75 x .062

In stock, 20+ on hand

$4.49

113

MTD 17707

Shift Lever Link Assembly

Unavailable

115

MTD 736-0140

Flat Washer

Superseded toMTD 936-0140

Unavailable

116

MTD 741-0404

Needle Bearing, V/S

Superseded toMTD 941-0404

Unavailable

117

MTD 727-0425

Clip Spring

(Used w/Ref. No. 103)

Superseded toMTD 927-0425A

Unavailable

118

MTD 16877

Front Heat Shield Ext.

Unavailable

119

MTD 710-0427

Hex Screw, 3/8"-16 X 2.0"

Superseded toMTD 710-3144

In stock, 20+ on hand

$4.99

120

MTD 756-0217

Flat Idler Pulley, 2.75" OD

Superseded toMTD 956-0217

In stock, only 4 left!

$23.99

121

MTD 736-0280

Flat Washer, .395X1

Superseded toMTD 736-04005

Usually ships in 3 - 6 days

$9.49

122

MTD 712-0798

Hex Nut, 3/8-16

In stock, 20+ on hand

$4.49

127

MTD 750-0748

Spacer

Usually ships in 3 - 6 days

$9.99

128

MTD 710-0650

Hex Head Self-Tapping Screw

In stock, 20+ on hand

$4.49

129

MTD 710-0726

Hex Head Self-Tapping Screw

In stock, 20+ on hand

$4.49

130

MTD 751-0470

Inlet Tube Ass'y.

Unavailable

131

MTD 751-0471

Formed Tube Ass'y.

Currently unavailable

132

MTD 726-3009

Clamp

Unavailable

133

MTD 710-1037

Hex Bolt w/Washer

Currently unavailable
