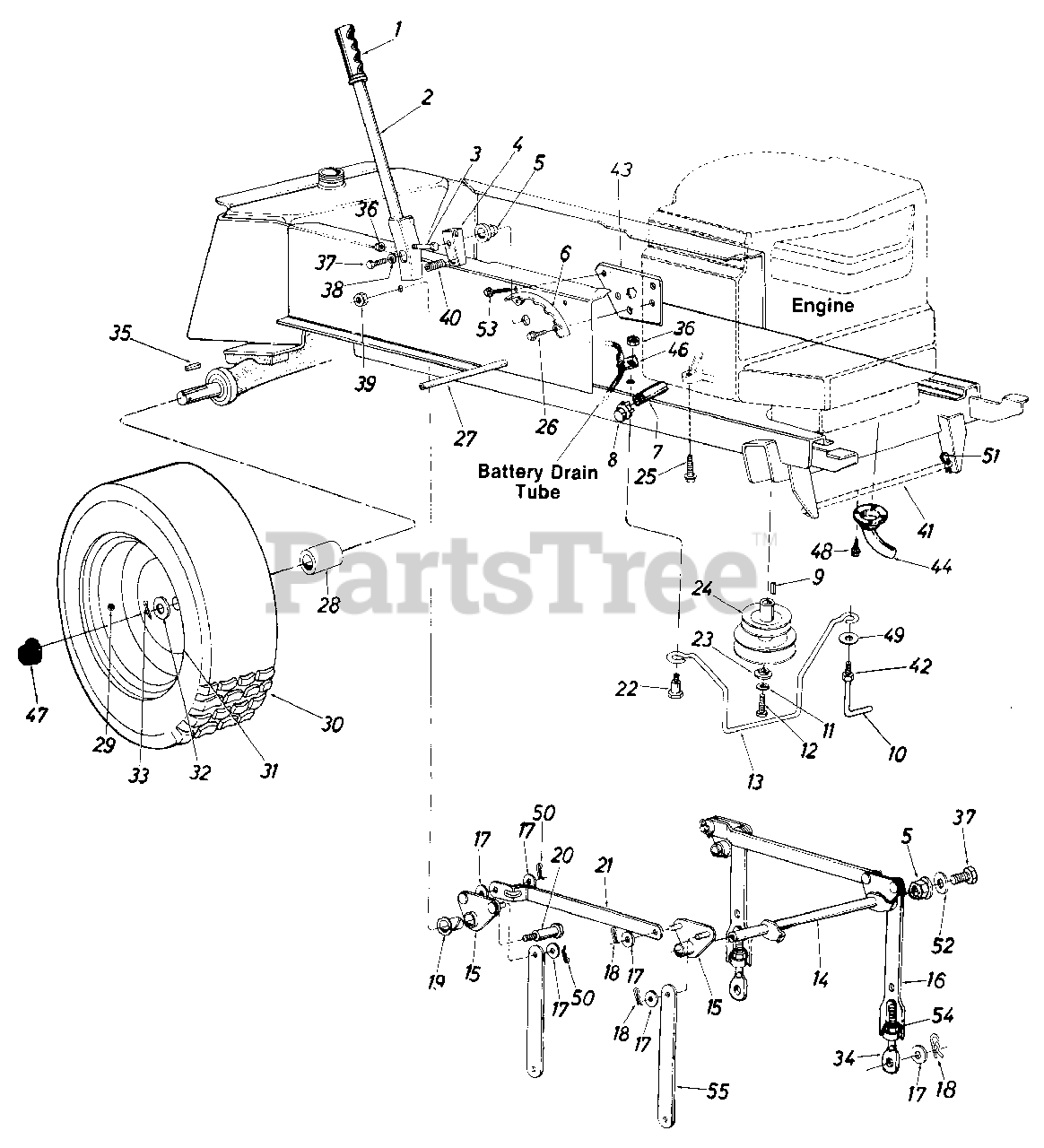

MTD 13785S - MTD Lawn Tractor (1985) Lawn Parts Lookup and Diagrams

Back to Lawn & Garden Tractors

Search within parts diagrams

All Diagrams (8) Electrical Hydrostatic Lawn Lawn Lawn Lawn Lawn Transaxle

Lawn Parts

MTD 734-0967

Rear Wheel Tire Only

Unavailable

MTD 720-0157

Lift Handle Grip

Superseded toMTD 920-0233

Unavailable

MTD 14233

Lift Handle Ass'y.

Unavailable

MTD 710-0442

Hex Capscrew, 5/16"-18 X 1.5"

Superseded toMTD 710-0805A

In Stock, Qty 11

$4.99

MTD 748-0274

SHAFT-LIFT

Superseded toMTD 748-0274A

Unavailable

MTD 741-0225

Flange Bearing

Superseded toMTD 941-0225

In stock, 20+ on hand

$7.49

MTD 14231

Index Deck Bracket

Unavailable

MTD 737-0164

NIPPLE-PIPE

Superseded toMTD 937-0164

Unavailable

MTD 737-0143

Pipe Cap 3/8-18 Npt.

Unavailable

MTD 714-0118

Square Key, 1/4 X 1.5"

In stock, only 2 left!

$7.49

MTD 747-0216

Locking Pin

Unavailable

MTD 736-0171

Lock Washer, .4375"

In stock, 20+ on hand

$4.99

MTD 710-0757

Hex Screw, 7/16-20

In Stock, Qty 10

$10.99

MTD 747-0299

Belt Guard

Currently unavailable

MTD 13889

SHAFT-LIFT

Unavailable

MTD 13895

Lift Pivot Bracket Assembly

Unavailable

MTD 16092

Adj. Deck Lift Link

Unavailable

MTD 736-0192

Flat Washer, .531 ID

Superseded toMTD 936-0192

In Stock, Qty 12

$4.99

MTD 714-0101

Internal Cotter Pin, 1/2"

Superseded toMTD 914-0101

Unavailable

MTD 741-0295

Flange Bearing

Superseded toMTD 941-0591

Unavailable

MTD 738-0445

Shoulder Bolt, 3/8-16 X .62 X .92

Superseded toMTD 938-0445A

Unavailable

MTD 13790

LINK-CONNECTING

Unavailable

MTD 738-0296

Shoulder Screw, .437 Dia

In stock, 20+ on hand

$4.49

MTD 736-0322

Flat Washer, .445" X 1.248" X .170"

In stock, 20+ on hand

$9.99

MTD 756-0328

Engine Pulley

Unavailable

MTD 710-0502

Hex Head Self-Tapping Screw

Superseded toMTD 710-0502A

In Stock, Qty 15

$6.99

MTD 710-0600

SCREW-HEX WASH SF

Unavailable

MTD 738-0435

Running Board Rod

Unavailable

MTD 750-0490

Spacer 1.0" I.D. x 1.25" O.D. x 2.12" Lg.

Unavailable

MTD 734-0255

Air Valve, Tubeless

Superseded toMTD 934-0255

In stock, 20+ on hand

$4.49

MTD 734-1004

Wheel Ass'y. Comp. (22 x 7.50)

Currently unavailable

MTD 734-1015

Rim Only-23 x 9.50

Unavailable

MTD 736-0345

Flat Washer, 1.0 X

Superseded toMTD 936-0345

In Stock, Qty 14

$4.49

MTD 714-0142

Cotter Pin, 3/16 Dia

Usually ships in 3 - 6 days

$6.49

MTD 711-0773

Eye Bolt Adj. Link 1/2-13 Thd.

Unavailable

MTD 714-0120

Sq. Key 1/4 x 3.0"

Unavailable

MTD 712-0158

Hex Center Lock Nut, 5/16-18

Superseded toMTD 912-0158

In stock, only 2 left!

$3.49

MTD 710-0237

Hex Screw, 5/16"-24

In stock, only 2 left!

$4.99

MTD 736-0119

Lock Washer, .03125"

Superseded toMTD 936-0119

In stock, 20+ on hand

$4.99

MTD 712-0181

Hex Top Lock Nut

Superseded toMTD 912-0181

Unavailable

MTD 732-0369

Spring

Superseded toMTD 932-0369

Usually ships in 3 - 6 days

$10.99

MTD 738-0392

ROD-CONNECTING

Unavailable

MTD 712-0123

Hex Nut, 5/16-24

Superseded toMTD 912-3057

In Stock, Qty 15

$7.49

MTD 14170

PLATE-REINFORCEMENT

Unavailable

MTD 751-0275

Exhaust Pipe

Currently unavailable

MTD 726-0175

CLAMP

Unavailable

MTD 731-0556

Hub Cap

In stock, only 3 left!

$5.49

MTD 710-0224

Screw, Hex Ab-Tap

Superseded toMTD 910-0224

In Stock, Qty 13

$3.99

MTD 736-0242

Bell Washer, .337" X .867" X .057"

In stock, 20+ on hand

$4.99

MTD 714-0111

Cotter Pin, 3/32 X 7/8

Superseded toMTD 914-0111

Unavailable

MTD 714-0149

Internal Cotter Pin

Superseded toMTD 914-0149B

Unavailable

MTD 736-0231

Flat Washer

Superseded toMTD 936-0231

Unavailable

MTD 710-0726

Hex Head Self-Tapping Screw

In stock, 20+ on hand

$4.49

MTD 712-0206

Hex Nut, 1/2"-13

Superseded toMTD 912-0206

Unavailable

MTD 14399

Deck Link

Usually ships in 3 - 6 days

$18.99
