146Y834P401 - Yard-Man Garden Tractor (1996) Drive/Pedal Assembly/PTO Clutch/Speed Control Parts Diagram

Garden Tractor

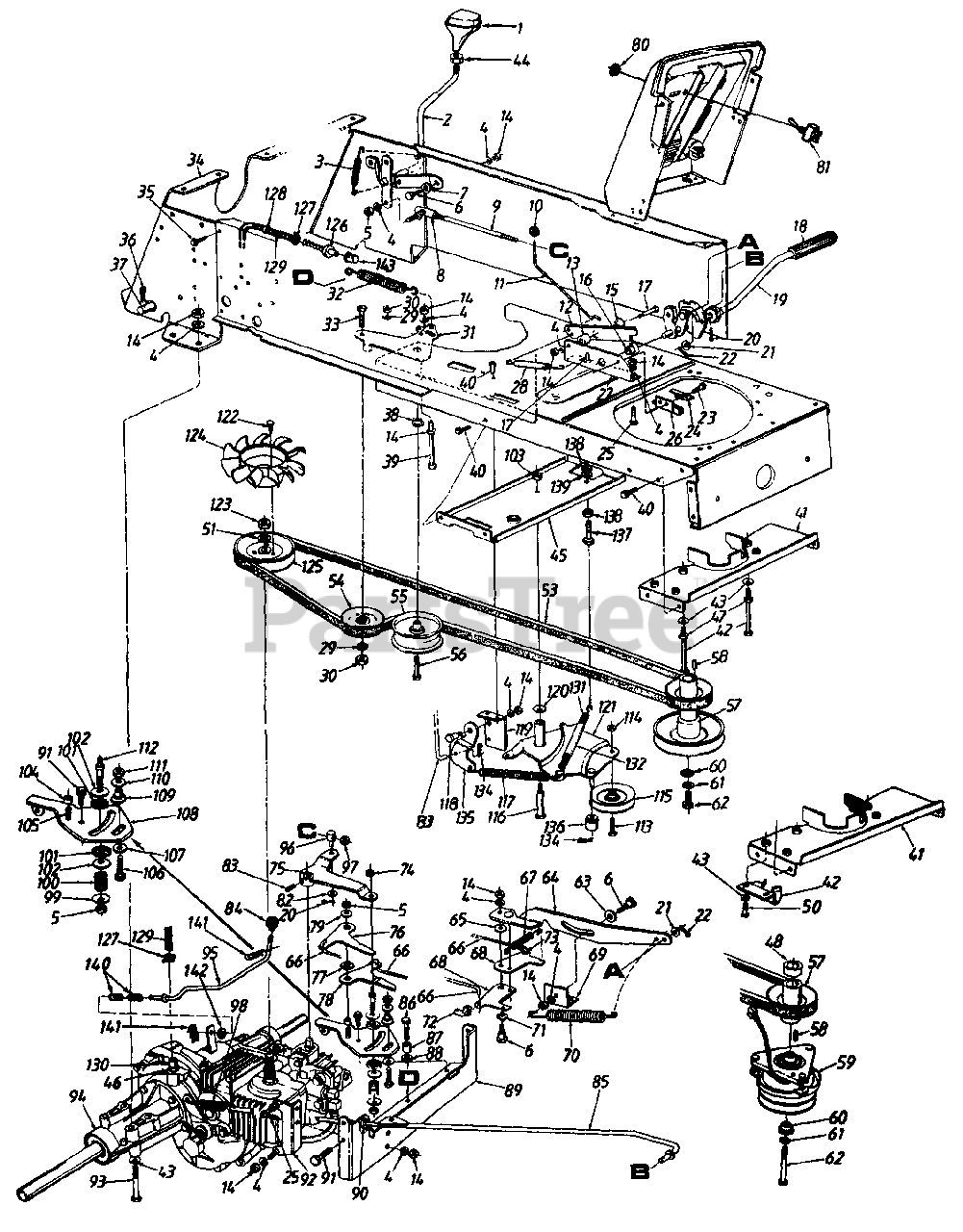

Drive/Pedal Assembly/PTO Clutch/Speed Control Parts Diagram

  • Title

1

MTD 631-0009

Shift Knob
(Superseded to 931-0009A)

$13.99

$

In Stock, Qty 5

0

2

MTD 647-0010

Speed Control Lever Ass'y.

$

$

Not available

3

MTD 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

4

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

6

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$3.99

$

In Stock, Qty 12

0

7

MTD 736-0141

Spr. Wash .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

8

MTD 723-3012

Ball Joint 5/16-24 Thd.
(Superseded to 923-3012)

$39.99

$

In Stock, only 2 left!

0

9

MTD 747-0857

Speed Selector Adjusting Rod

$

$

Not available

10

MTD 720-0166

Ball Knob

$

$

Not available

11

MTD 747-0876

Brake Lockout Rod

$

$

Not available

12

MTD 16980

Brake Lockout Brkt.

Variations

MTD 16980-0637

No Longer Available BRACKET-LO - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 750-0214

Spacer.34" I.D. x .88" O.D.

$

$

Not available

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 748-0234

Shld. Spacer .27" Lg.

$4.49

$

In Stock, Qty 10

0

16

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

17

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 8

0

19

MTD 17911

Foot Pedal Ass'y.

Variations

MTD 17911-0637

No Longer Available PEDAL-ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0275

Fl-Wash .34" I.D. x .68" O.D.

$6.49

$

Usually ships in 3-6 days

0

22

MTD 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 1 left!

0

23

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

24

MTD 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

25

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

26

MTD 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

27

MTD 16924A

Clutch Ass'y. Mtg. Brkt.

$

$

Not available

28

MTD 732-0395

Ext. Spring 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

29

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

30

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

31

MTD 783-0056

idler Brkt.

$

$

Currently unavailable

32

MTD 732-0470

Ext. Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

33

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.49

$

In Stock, only 2 left!

0

34

MTD 17344A

Hitch Plate

Variations

MTD 17344A-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

36

MTD 714-0147

Hitch Pin

$4.49

$

In Stock, Qty 12

0

37

MTD 738-0482

Hitch Rod

$

$

Not available

38

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 13

0

39

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

40

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

41

MTD 17358D

Belt Guard Brkt.
(Superseded to 17358D-0637)

Variations

MTD 17358D-0637

Belt Guard Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 710-0833

Hex Bolt 5/16-18 x 5.25" Lg.

$8.99

$

In Stock, only 2 left!

0

MTD 17418

Torque Bracket

Variations

MTD 17418-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 736-0242

Bell-Wash .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

44

MTD 712-3008

Hex Jam Nut 3/8-16 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

45

MTD 16888A

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

Variations

MTD 16888A-0637

Idler Support Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

46

MTD 721-0330

O-Ring

$3.49

$

Usually ships in 3-6 days

0

47

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

48

MTD 711-3301

Clutch Spacer

$

$

Not available

50

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

51

UNKNOWN

$

$

Not available

53

MTD 754-0435

"V"-Belt
(Superseded to 954-0435)

$70.99

$

In Stock, only 4 left!

0

54

MTD 756-0116

Idler Pulley
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

55

MTD 756-0515

Fl-Idler Pulley

$

$

Not available

56

MTD 710-3096

Hex Bolt 3/8-16 x 2" Lg. (Gr. 8)

$7.49

$

In Stock, Qty 20+

0

57

MTD 756-0636

Engine Pulley

$

$

Not available

MTD 756-0637

Engine Pulley

$

$

Not available

58

MTD 714-0118

Sq.-Key 1/4" x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

MTD 714-0128

Sq.-Key 1/4" x 1" Lg.

$4.49

$

In Stock, Qty 6

0

59

MTD 717-1434

Electric Clutch
(Superseded to 917-1434)

$590.99

$

Usually ships in 3-6 days

0

60

MTD 732-0322

Fl-Wash .44" I.D. x 1.25"

$

$

Currently unavailable

MTD 738-0785

Shld. Spacer
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 5

0

61

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$8.99

$

In Stock, Qty 5

0

MTD 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.

$9.99

$

Usually ships in 3-6 days

0

63

MTD 736-0179

Fl-Wash .531" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

64

MTD 683-0030

Neutral Return Link Ass'y.

$

$

Not available

65

MTD 736-3074

Fl-Wash .344" I.D. x 1.12" O.D. (Hdn.)

$

$

Not available

66

MTD 747-0880

Connecting Rod

$

$

Not available

67

MTD 732-0387

Ext. Spring 2.5" Lg.

$

$

Not available

68

MTD 17757

Balancer Brkt.

$

$

Not available

69

MTD 17755A

Bracket

$

$

Not available

70

MTD 732-0717

Ext. Spring 3.94" Lg.

$

$

Not available

71

MTD 736-0141

Spr.-Wash .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

72

MTD 726-0281

Rod End Clevis Clip - R.H.

$

$

Not available

73

MTD 726-0280

Rod End Clevis Clip - L.H.

$

$

Not available

74

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

75

MTD 683-0032A

Pintle Bracket Ass'y.

$

$

Not available

76

MTD 783-0053

Flat Scissors

$

$

Not available

77

MTD 736-0174

Spr. Wash .625" I.D. x .885" O.D.

$6.49

$

Usually ships in 3-6 days

0

78

MTD 783-0054

Offset Scissors

$

$

Not available

79

MTD 736-3078

Fl-Wash .344" I.D. x 1" O.D. (Hdn.)

$3.99

$

In Stock, Qty 15

0

80

MTD 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

81

MTD 725-0893

Toggle Switch f f
(Superseded to 925-0893)

$76.99

$

In Stock, Qty 15

0

82

MTD 736-0185

Fl-Wash .406" I.D. x .75" O.D.

$3.49

$

In Stock, Qty 15

0

83

MTD 710-0257

Hex Socket Set Screw

$

$

Not available

84

MTD 720-0187

Ball Knob

$9.99

$

Usually ships in 3-6 days

0

85

MTD 747-0859

Brake Rod

Note: New Part

$

$

Not available

86

MTD 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5"

$3.99

$

In Stock, Qty 16

0

87

MTD 750-0555

Spacer .39" Lg.

$

$

Not available

88

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

89

MTD 783-0051

Transaxle Torque Brkt.

Variations

MTD 783-0051-0637

No Longer Available BRKT-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 731-0555A

Grommet

$

$

Not available

91

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 783-0050

Transaxle Torque Brace

Variations

MTD 783-0050-0637

No Longer Available BRACE-TRAN - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$5.99

$

In Stock, Qty 5

0

94

MTD 718-0241A

Transaxle

Note: See Breakdown

$

$

Not available

95

MTD 747-0909

Bypass Rod

$

$

Not available

96

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

97

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

98

MTD 732-0716

Ext. Spring 4.01" Lg.
(Superseded to 732-0716D)

$12.99

$

In Stock, Qty 20+

0

99

MTD 736-3008

Fl-Wash .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

100

MTD 732-0718

Comp. Spring 1.19" Lg.

$

$

Not available

101

MTD 761-0196

Friction Washer
(Superseded to 961-0196)

$8.99

$

Usually ships in 3-6 days

0

102

MTD 736-0219

Bell-Wash .40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

103

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

104

MTD 750-0808

Spacer

$

$

Not available

105

MTD 710-1012

Rib Neck Bolt 5/16-18 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

106

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

107

MTD 736-3090

Fl-Wash .26" I.D. x .72" O.D.

$6.49

$

In Stock, only 2 left!

0

108

MTD 783-0052

Scissors Mtg. Brkt.

$

$

Not available

109

MTD 750-0918

Centering Gauge Spacer

$

$

Not available

110

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

111

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

112

MTD 738-0879

Friction Disc Stud
(Superseded to 938-0879)

$15.99

$

In Stock, only 1 left!

0

113

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

114

MTD 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$5.99

$

In Stock, Qty 20+

0

115

MTD 756-0293A

V-Belt Idler
(Superseded to 756-0487)

$45.99

$

In Stock, only 4 left!

0

116

MTD 738-0129

Shld. Bolt .498" Dia. x 2.05

$10.99

$

In Stock, only 1 left!

0

117

MTD 732-0478

Ext. Spring 6.12" Lg.
(Superseded to 932-0478)

$11.99

$

In Stock, Qty 18

0

MTD 732-0180

Ext. Spring 4" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, Qty 6

0

118

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

MTD 13833

Parking Brake Mtg. Brkt.

$

$

Not available

120

MTD 736-0105

Bell-Wash .38" I,D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

121

MTD 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$68.99

$

In Stock, only 1 left!

0

122

MTD 710-3007

Hex Tap Scr. #12 x 3/8" Lg.

$3.99

$

In Stock, Qty 20+

0

123

MTD 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

124

MTD 731-1449

Fan
(Superseded to 931-1449A)

$32.99

$

In Stock, Qty 19

0

125

MTD 756-0635A

Input Pulley

$61.99

$

Usually ships in 3-6 days

0

126

MTD 731-1480

Plastic Vent

$14.99

$

Usually ships in 3-6 days

0

127

MTD 726-0324

Hose Clamp
(Superseded to 926-0324)

$6.99

$

Usually ships in 3-6 days

0

128

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

129

MTD 751-0588

Hose 1/2" I.D. x 18" Lg.

$27.99

$

Usually ships in 3-6 days

0

130

MTD 731-1485

Hose Fltting

$

$

Not available

131

MTD 732-0308

Ext. Spring 6.37" Lg.
(Superseded to 732-0308A)

$10.99

$

In Stock, Qty 12

0

132

MTD 731-0757

Convoluted Conduit

$3.49

$

Usually ships in 3-6 days

0

133

MTD 747-0708A

Deck Control Rod

$

$

Not available

134

MTD 714-0104

Internal Cotter Pin

$3.99

$

In Stock, Qty 20+

0

135

MTD 13887

Deck Control Pivot Brkt.
(Superseded to 13887A)

$

$

Not available

136

MTD 748-0278

Spacer
(Superseded to 948-0278)

$10.99

$

In Stock, Qty 14

0

137

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

138

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

139

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

140

MTD 732-0145

Comp. Spring 1" Lg.

$3.99

$

In Stock, only 1 left!

0

141

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

142

MTD 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 2 left!

0

143

MTD 731-1481

Plastic Vent Cap

$9.99

$

Usually ships in 3-6 days

0
