Simplicity 1695965 - Simplicity Sleeve Hitch Kit Sleeve Hitch Assembly (1695965) Parts Lookup and Diagrams

Back to Accessories

Search within parts diagrams

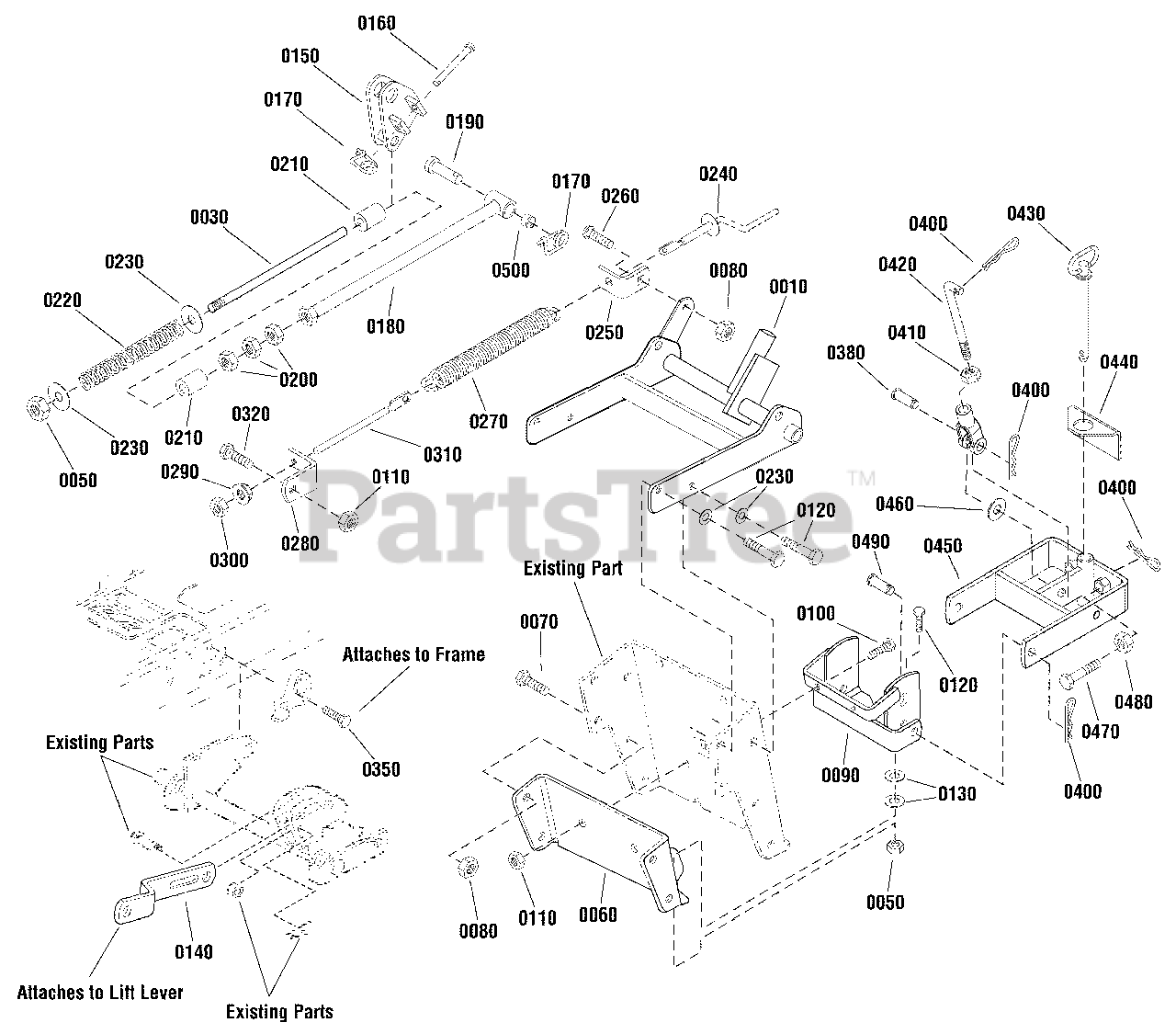

All Diagrams (1) Sleeve Hitch Assembly (1695965)

Sleeve Hitch Assembly (1695965) Parts

0010

Simplicity 1723107A

HITCH ASMY-TILLER CON

Superseded toSimplicity 1723107ASM

Usually ships in 2 - 12 days

$347.99

0030

Simplicity 1723836

USE 1723836SM: ROD-THREADED .500-13X17.5LG GR 8 BLK

Superseded toSimplicity 1723836SM

Usually ships in 2 - 12 days

$38.99

0050

Simplicity 1960355

NUT LOCK 1/2-13

Superseded toSimplicity 703567

Usually ships in 2 - 12 days

$4.49

0060

Simplicity 1722608A

HITCH SUPPORT ASSEMBLY

Superseded toSimplicity 1722608ASM

Unavailable

0070

Simplicity 1921210

Capscrew, 3/8-16 X 1

Superseded toSimplicity 703407

Usually ships in 2 - 12 days

$11.99

0080

Simplicity 1919439

Hex Nut, 3/?8

Superseded toSimplicity 703117

In stock, 20+ on hand

$3.99

0090

Simplicity 1707470A

HITCH ASMY-REAR LANDL

Superseded toSimplicity 1707470ASM

Usually ships in 2 - 12 days

$217.99

0100

Simplicity 1921977

Hex Head Cap Screw, 5/16-18 X 1 1/4

Superseded toSimplicity 1921977SM

In stock, 20+ on hand

$4.99

0110

Simplicity 1919438

Hex Lock Nut, Nylon Insert, 5/16-18

Superseded toSimplicity 1919438SM

In stock, 20+ on hand

$3.99

0120

Simplicity 1920328

Capscrew, 1/2-13X1.5

Superseded toSimplicity 703571

In stock, only 1 left!

$4.49

0130

Simplicity 1960170

Washer, 0.516 ID X 1 OD

Superseded toSimplicity 703853

In stock, 20+ on hand

$5.49

0140

Simplicity 1723795A

BAR LIFT.8-15/16 LON

Superseded toSimplicity 1723795ASM

Usually ships in 2 - 12 days

$16.99

0150

Simplicity 1723790A

LEVER ASMY-LIFT REAR

Superseded toSimplicity 1723790ASM

Unavailable

0160

Simplicity 2105249

Drilled Round Head Pin, .3

Superseded toSimplicity 2105249SM

Usually ships in 2 - 12 days

$17.99

0170

Simplicity 2176012

Pin, 5/16 X 0.375

Superseded toSimplicity 703852

In Stock, Qty 16

$4.49

0180

Simplicity 1724358A

USE 1724358ASM: WELD LIFT ROD ASSY.

Superseded toSimplicity 1724358ASM

Unavailable

0190

Simplicity 1960277

PIN-YOKE .618 DIA X 2

Superseded toSimplicity 1960277SM

Usually ships in 2 - 12 days

$12.99

0200

Simplicity 1916951

Hex Nut, 1/2-13 Gr5 Hex Zc

Superseded toSimplicity 703340

In stock, only 2 left!

$8.49

0210

Simplicity 1668662

SPACER-0.52 IDX0.738O

Superseded toSimplicity 1668662SM

Usually ships in 2 - 12 days

$34.99

0220

Simplicity 2171011

Compression Spring

Superseded toSimplicity 2171011SM

Usually ships in 2 - 12 days

$80.99

0230

Simplicity 1918431

Plow Bolt, 7/16"-14 X 2"

Superseded toSimplicity 704011

In Stock, Qty 10

$4.49

0240

Simplicity 1723840A

CRANK & WASHERS ASMY-

Superseded toSimplicity 1723840ASM

Usually ships in 2 - 12 days

$310.99

0250

Simplicity 1723841A

BRACKET-L .250TH 1.25

Superseded toSimplicity 1723841ASM

Usually ships in 2 - 12 days

$77.99

0260

Simplicity 1931350

Carriage Bolt, 3/8-16 X 1

Superseded toSimplicity 703815

In Stock, Qty 18

$4.49

0270

Simplicity 1723412

SPRING-EXTN 1.14 ODX

Superseded toSimplicity 1723412SM

Usually ships in 2 - 12 days

$62.99

0280

Simplicity 1723842A

BRACKET-L .250TH 1.75

Superseded toSimplicity 1723842ASM

Usually ships in 2 - 12 days

$26.99

0290

Simplicity 1960515

Flange Hex Nut, 1/2-1

Superseded toSimplicity 1960515SM

In stock, only 1 left!

$5.99

0300

Simplicity 1924650

NUT-HEX CENTERLOCK JA

Superseded toSimplicity 1924650SM

Usually ships in 2 - 12 days

$3.49

0310

Simplicity 1723844

ROD-THREADED .500-13X

Superseded toSimplicity 1723844SM

In stock, only 1 left!

$39.99

0320

Simplicity 1921333

Hex Head Cap Screw, 5/16-18 X 1

Superseded toSimplicity 703585

Usually ships in 2 - 12 days

$4.99

0350

Simplicity 1926149

Hex Head Capscrew, 5/16-18 X 1, G8 Black

Superseded toSimplicity 1926149SM

In stock, only 2 left!

$4.49

0380

Simplicity 1960116

Yoke Pin, .494 Dia

Superseded toSimplicity 1960116SM

In stock, 20+ on hand

$3.99

0400

Simplicity 1960033

Hair Pin Clip

Superseded toSimplicity 1960033SM

In stock, 20+ on hand

$3.49

0410

Simplicity 1919262

Hex Nut, 1/2-20

Superseded toSimplicity 703903

In stock, 20+ on hand

$3.49

0420

Simplicity 1604349

ROD-.500DIA 06.750LG

Superseded toSimplicity 1604349SM

Unavailable

0430

Simplicity 1716179

PIN-HITCH .625DIA 6.5

Superseded toSimplicity 1716179SM

Usually ships in 2 - 12 days

$35.99

0440

Simplicity 1603816

PLATE-STABILIZER 1 PT

Superseded toSimplicity 1603816SM

Usually ships in 2 - 12 days

$24.99

0450

Simplicity 1675373

CLEVIS ASSEMBLY

Superseded toSimplicity 1675373SM

Unavailable

0460

Simplicity 1924361

Flat Washer

Superseded toSimplicity 703451

In Stock, Qty 18

$4.49

0470

Simplicity 1927430

CAPSCREW-HEX HD 5/8-

Superseded toSimplicity 1927430SM

Usually ships in 2 - 12 days

$9.49

0480

Simplicity 1915726

Hex Nut, 5/8-11

Superseded toSimplicity 703912

Usually ships in 2 - 12 days

$3.49

0490

Simplicity 1753526

PIN, Round Head Drilled, 7/16 x 1-3/4

Unavailable

0500

Simplicity 2175647

SPACER-0.635IDX0.875O

Superseded toSimplicity 2175647SM

Usually ships in 2 - 12 days

$13.99
