181-184D000 - MTD Walk-Behind Mower, Electric (1991) Switch Detail Parts Diagram

Walk-Behind Mower, Electric

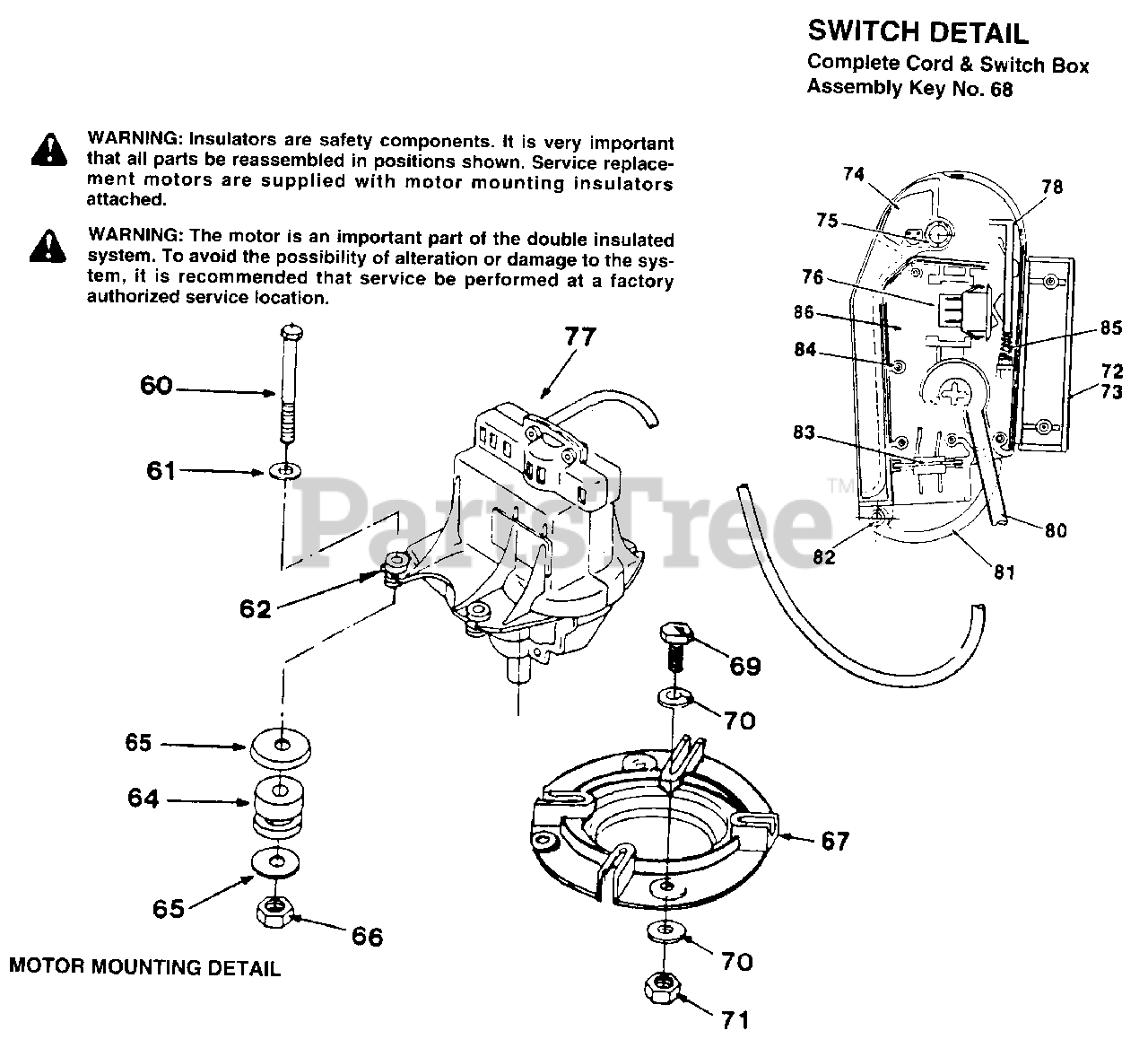

Switch Detail Parts Diagram

  • Title

60

MTD 710-1121

Hex Bolt 1/4-20 x 2" (Grade 5)

$

$

Currently unavailable

61

MTD 736-0142

Flat Washer 1/4"

$4.49

$

In Stock, only 1 left!

0

62

MTD 731-1216

Insulator-Motor Housing

$

$

Not available

64

MTD 721-0277

Grommet Assembly

$

$

Not available

65

MTD 736-0483

Flat Washer
(Superseded to 936-0176)

$3.99

$

In Stock, Qty 20+

0

66

MTD 712-0324

Nut 1/4-20 Locking

$3.49

$

In Stock, Qty 20+

0

67

MTD 724-0173

Adaptor-Motor Mtg.

$

$

Currently unavailable

MTD 818-60000

Cord & Switch Box (Complete)

$

$

Not available

69

MTD 710-0342

Hex Bolt 3/8-16 x 1-1/4"
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

70

MTD 736-0262

Flat Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-0431

Nut 3/8-16 Locking
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

72

MTD 731-1208

Housing-Upper Half

$

$

Not available

73

MTD 731-1209

Housing-Lower Half

Note: (Not Shown)

$

$

Not available

74

MTD 731-1210

Handle-Switch Actuator

$

$

Not available

75

MTD 732-0694

Spring-Switch Handle

$

$

Not available

76

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

77

MTD 818-60100

Motor & Switch Assembly

$

$

Currently unavailable

78

MTD 731-1198

Latch

$

$

Not available

80

MTD 818-60001

Cord Assembly

Note: (Includes #83)

$

$

Not available

81

MTD 731-1211

Plug Retainer

$

$

Not available

82

MTD 732-0680

Spring-Plug Retainer
(Superseded to 932-0680)

$

$

Not available

83

MTD 729-0304

Plug Assembly
(Superseded to 929-0304)

$

$

Not available

84

MTD 710-1147

Screw-Switch Box

Note: (Not Shown)

$

$

Not available

85

MTD 732-0681

Latch Spring

$

$

Not available

86

MTD 818-60002

Jumper Wire

Note: (Not Shown)

$

$

Currently unavailable
