190-083-190 - White Outdoor Triple Bag Grass Collector (1995) Grass Collector Parts Diagram

Triple Bag Grass Collector

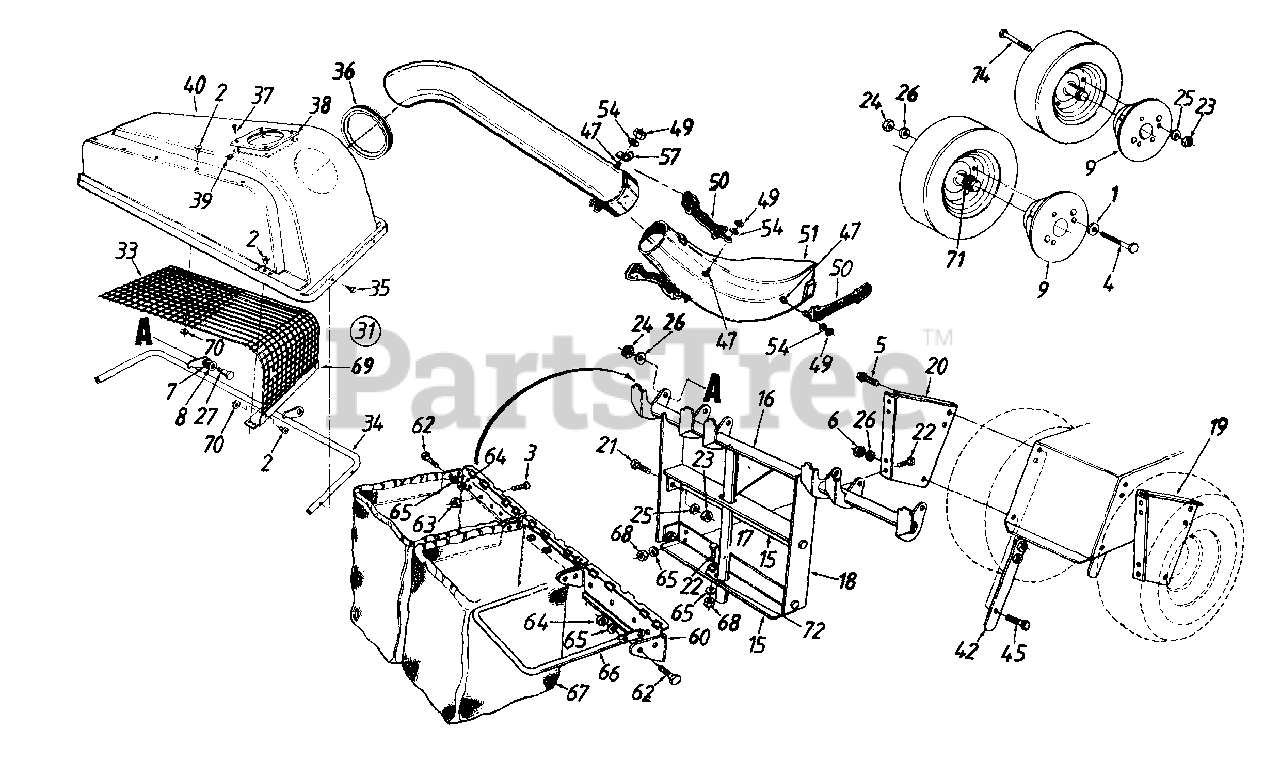

Grass Collector Parts Diagram

  • Title

1

MTD 936-0300

Fl-Wash. .385" I.D.
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

2

MTD 928-0123

Pop Rivet

$4.99

$

Usually ships in 3-6 days

0

3

MTD 710-0192

Truss Mach. Scr. #10-24 x .38"

$3.49

$

In Stock, Qty 11

0

4

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$13.99

$

In Stock, only 2 left!

0

5

MTD 710-0604A

Hex Wash. Hd. Tap Scr. 5/16-18 x .62"

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

7

MTD 936-0255

Bell-Wash. .515" I.D.
(Superseded to 736-0255)

$

$

Not available

8

MTD 936-0108

Fl-Wash. .510" I.D.

$6.49

$

In Stock, Qty 7

0

9

MTD 723-0414B

Wheel Weight

Note: NLA

Variations

MTD 723-0414B-0637

No Longer Available WEIGHT-WHE - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 16810

Wheel Weight Snap Ring

Note: NLA

$

$

Not available

15

MTD 17200A

Catcher Support Tube Mtg. Brkt.

Note: NLA

Variations

MTD 17200A-0637

No Longer Available BRKT. CATC - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 689-00002-0637

Catcher Support Tube Ass'y.

$

$

Not available

17

MTD 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 15

0

18

MTD 783-0601-0637

Catcher Latch and Support Brkt.

$32.99

$

Usually ships in 3-6 days

0

19

MTD 17190

Grass Catcher Support Brkt. - R H.

Note: NLA

Variations

MTD 17190-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 17191-0637

Grass Catcher Support Brkt. - L. H.

$

$

Not available

21

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. - Grade 5

$3.99

$

In Stock, Qty 20+

0

23

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

25

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

27

MTD 938-0380

Shld. Bolt 3/8-16 x .500" Dia.
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 20+

0

28

MTD 936-0253

Bell-Wash. .505" I.D. x 1.0" O.D.
(Superseded to 736-0253)

$

$

Not available

31

MTD 17204

Grass Catcher Cover Ass'y. Comp.

Note: NLA

$

$

Not available

33

MTD 723-0407

Screen

$

$

Not available

34

MTD 749-0747-0637

Hinge Brkt. Ass'y.

$

$

Not available

35

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

36

MTD 723-0413

Tube Seal

$28.99

$

In Stock, only 2 left!

0

37

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

38

MTD 731-0824

Plastic Plate

Note: NLA

$

$

Not available

39

MTD 712-0147

Speed Nut

$6.49

$

Usually ships in 3-6 days

0

40

MTD 731-0896

Grass Catcher Cover

Note: NLA

$

$

Not available

42

MTD 17192

Retainer Brkt. Ass'y.

Note: NLA

Variations

MTD 17192-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

47

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

49

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

50

MTD 923-0383

Retainer Strap Ass'y.

$14.99

$

In Stock, Qty 13

0

51

MTD 731-0925C

Discharge Chute

$151.99

$

In Stock, only 2 left!

0

53

MTD 731-0926B

Catcher Elbow Tube

$132.99

$

Usually ships in 3-6 days

0

54

MTD 936-0175

L-Wash. .270" I.D. x .57" O.D.

$3.99

$

In Stock, only 3 left!

0

57

MTD 96606

Retainer Hook Brkt.

$6.99

$

In Stock, Qty 14

0

60

MTD 17201A-0637

Bag Frame Hanger Brkt.

$66.99

$

Usually ships in 3-6 days

0

62

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

63

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

64

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

65

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

66

MTD 749-0745A-0637

Catcher Bag Frame

$56.99

$

In Stock, only 1 left!

0

67

MTD 964-0251

Grass Catcher Bag

$83.99

$

In Stock, Qty 20+

0

68

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

69

MTD 17202

Screen Mtg. Brkt.

Note: NLA

Variations

MTD 17202-0637

No Longer Available BRACKET SC - POWDER BLACK (0637)

$

$

Not available

$

$

70

MTD 936-0400

Flat Wash. 1/4" I.D.
(Superseded to 736-0400)

$

$

Not available

71

MTD 722-0157

Foam Strip 1-1/8" x 1-1/2" x 3/8"

$4.49

$

Usually ships in 3-6 days

0

72

MTD 17247-0637

Support Tubing Adapter Brkt.

$16.99

$

Usually ships in 3-6 days

0

74

MTD 710-0190

Hex Bolt 5/16-18 x 4" Lg.

$7.49

$

Usually ships in 3-6 days

0
