190-491-190 - White Outdoor 36" Snow Thrower Attachment (1996) Snow Thrower Attachment (Part 2) Parts Diagram

36" Snow Thrower Attachment

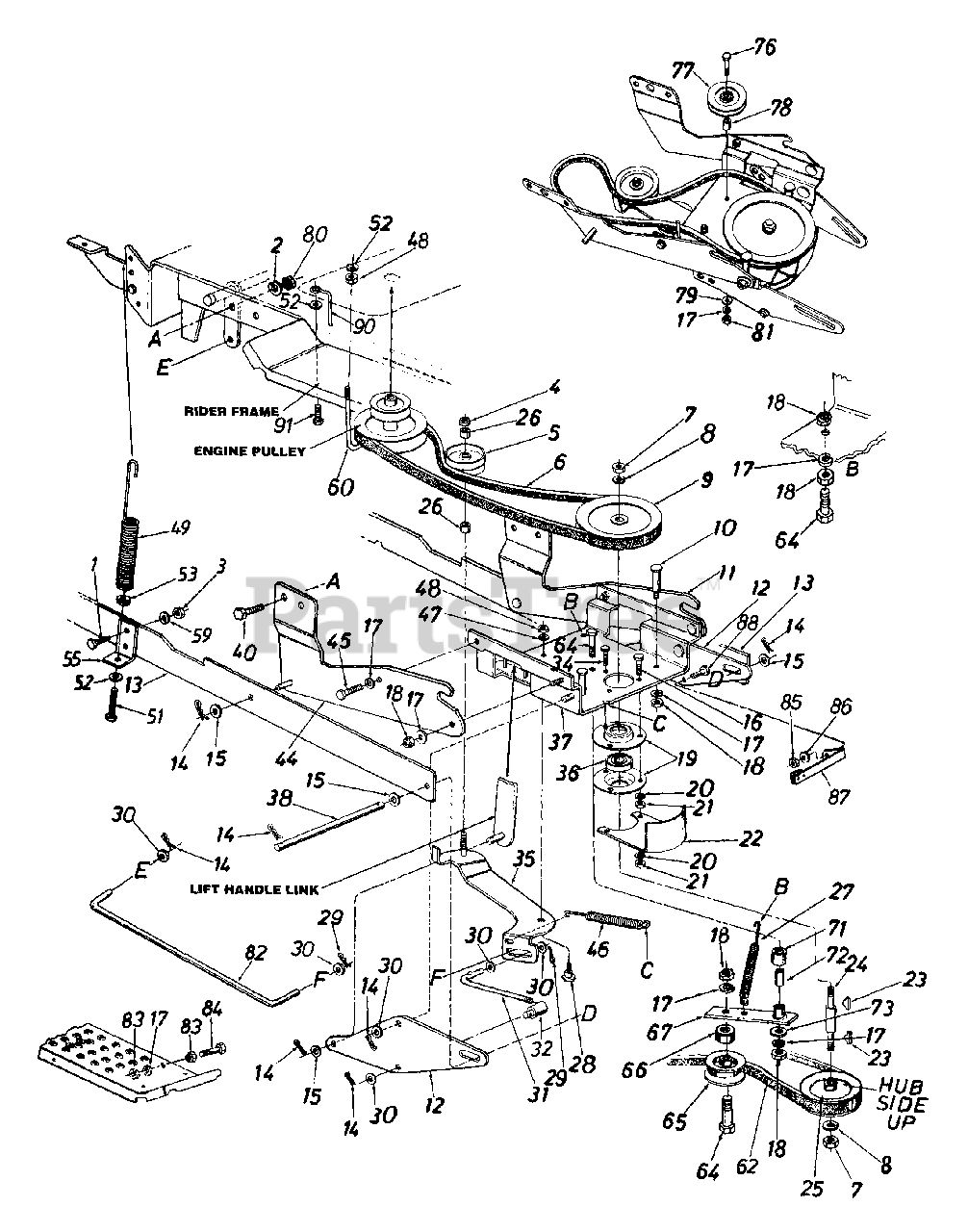

Snow Thrower Attachment (Part 2) Parts Diagram

  • Title

1

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg. Grade 5

$4.49

$

Usually ships in 3-6 days

0

2

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

3

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

4

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

5

MTD 956-0417

Idler Pulley

$

$

Not available

6

MTD 754-0299

V-Belt

Note: NLA

$

$

Not available

7

MTD 912-0261

Hex Jam Nut 5/8-11 Thd.

$

$

Not available

8

MTD 936-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 15

0

9

MTD 756-0216

Pulley .627" I.D. x 6.5" O.D.

$

$

Not available

10

MTD 738-0129

Shoulder Bolt

$10.99

$

In Stock, only 1 left!

0

11

MTD 05826B

Channel Support Brkt. R.H.

Note: NLA

Variations

MTD 05826B-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 05835

Linkage Brkt.

Note: NLA

$

$

Currently unavailable

13

MTD 05836A

Linkage Arm Ass'y.

Note: NLA

Variations

MTD 05836A-0637

No Longer Available ARM ASM.L - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 914-0101

Intern. Cotter Pin .5" Dia.
(Superseded to 714-0101)

$

$

Not available

15

MTD 936-0192

Fl-Wash.

$3.99

$

In Stock, Qty 18

0

16

MTD 710-0528

Hex Bolt 5/16 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

18

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 08253B

Bearing Housing

$17.99

$

In Stock, only 3 left!

0

20

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 05406-0637

Belt Guard

$

$

Not available

23

MTD 914-0388

#Hi-Pro-Key 3/16" x 5/8" Dia.

$7.49

$

In Stock, Qty 8

0

24

MTD 738-0246

Pulley Spindle

Note: NLA

$

$

Not available

25

MTD 756-0457

Pulley .628" I.D. x 5.56" O.D.

Note: NLA

$

$

Not available

26

MTD 950-0503

Spacer .383" I D. x .503"

$

$

Not available

27

MTD 932-0470A

Extension Spring 5.25" Lg.

$9.49

$

In Stock, Qty 20+

0

28

MTD 938-0140

Shoulder Bolt
(Superseded to 738-0140)

$

$

Not available

29

MTD 914-0111

Cotter Pin 3/32" Dia.
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0300

Fl-Wash. .385" I.D. x .87"
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

31

MTD 747-0533A

Control Rod (Clutch)

$

$

Not available

32

MTD 911-0723A

Ferrule

$15.99

$

Usually ships in 3-6 days

0

34

MTD 910-0198

Hex Sems Scr. 5/16-18 x .75" Lg.

$

$

Not available

35

MTD 05409A

Clutch Idler Brkt. Ass'y.

Note: NLA

$

$

Not available

36

MTD 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

37

MTD 05411B

Channel Ass'y.

Note: NLA

$

$

Not available

38

MTD 738-0242

Lift Handle Shaft

$

$

Not available

40

MTD 710-0642

Hex Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 05827B-0637

Channel Supporting Brkt. - L.H.

$

$

Not available

45

MTD 910-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

46

MTD 732-0146

Extension Spring

Note: NLA

$

$

Not available

47

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

48

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 732-0323

Helper Spring

$

$

Not available

51

MTD 710-0959

Hex Bolt 5/16-18 x 1.5" Lg. (Special)

$7.49

$

Usually ships in 3-6 days

0

52

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

53

MTD 711-0509

Spring Insert

$55.99

$

Usually ships in 3-6 days

0

55

MTD 05933

Helper Spring Brkt.

Note: NLA

Variations

MTD 05933-0637

No Longer Available BRACKET-HE - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

60

MTD 710-0836

J-Bolt 5/16-18 Thd.

Note: NLA

$

$

Not available

62

MTD 954-0294

V-Belt

$68.99

$

Usually ships in 3-6 days

0

64

MTD 710-3144

Hex Bolt 3/8-16 x 2.0" Lg.

$4.49

$

In Stock, Qty 20+

0

65

MTD 956-0417

Idler Pulley

$

$

Not available

66

MTD 950-0503

Spacer .385" I.D. x .503"

$

$

Not available

67

MTD 703-1396-0637

Idler Arm Ass'y.

$161.99

$

Usually ships in 3-6 days

0

71

MTD 911-0242

Spacer .380" I.D.

$3.99

$

In Stock, Qty 14

0

72

MTD 950-0252

Spacer .3775" I.D.

$19.99

$

In Stock, Qty 5

0

73

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 2 left!

0

76

MTD 710-0859

Hex Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$6.49

$

In Stock, Qty 20+

0

77

MTD 756-04209

Idler Pulley .38" I.D. x 3.06" O.D.

Note: Units with twin cylinder engines Only.

$20.99

$

In Stock, Qty 20+

0

78

MTD 711-0396

Spacer .385" I.D. x .76" Lg

Note: Units with twin cylinder engines Only.

$10.99

$

Usually ships in 3-6 days

0

79

MTD 07386

Fl-Wash. .39" I.D. x 1-3/4" O.D.

Note: Units with twin cylinder engines Only.

$

$

Not available

80

MTD 912-0287

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

81

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

82

MTD 747-0532

Clutch Control Rod

Note: NLA

$

$

Not available

83

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.49

$

In Stock, Qty 7

0

85

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

86

MTD 936-0356

Bell-Wash. 3/8" I.D.

$

$

Not available

87

MTD 761-0195

Auger Brake Brkt. Ass'y.

Note: NLA

$

$

Not available

88

MTD 710-0201

Hex Bolt 3/8-16 x 5/8" Lg.

Note: NLA

$

$

Not available

90

MTD 747-0760

Belt Guard

Note: NLA

$

$

Not available

91

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

MTD 14632

Index Brkt. (Hardened)

Note: NLA

$

$

Currently unavailable

MTD 14802A-0637

Lift Link

Note: Not shown

$

$

Not available

MTD 930-3000

Reflectors

Note: Not shown

$16.99

$

In Stock, Qty 7

0
