White Outdoor 196-485-000 - White Outdoor 42" Snow Blade (1986) 42-Inch Snow Blade Parts Lookup and Diagrams | PartsTree

Need guidance? Find by Model

Back to Accessories & Attachments

Search within parts diagrams

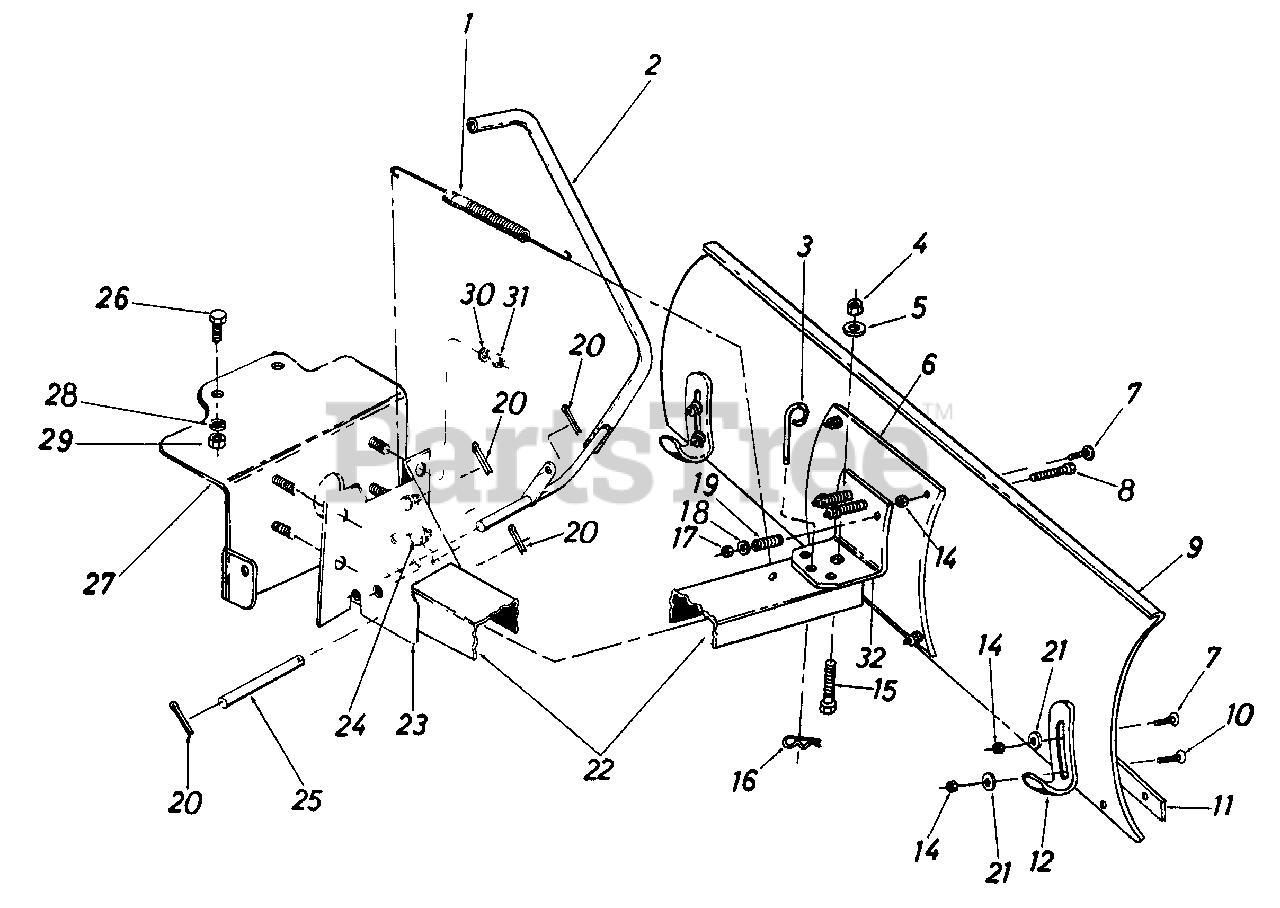

All Diagrams (1) 42-Inch Snow Blade

42-Inch Snow Blade Parts

Spring 8.65" Lg.

Unavailable

Lift Handle Ass'y.

NLA

Unavailable

Pivot Lock Pin

NLA

Currently unavailable

NUT-HEX CENTER

In stock, only 3 left!

$7.49

Flat Washer

Superseded toMTD 736-0179

In Stock, Qty 9

$4.99

Reinforcement Plate

NLA

Currently unavailable

Carriage Bolt, 5/16-18 X .75"

In stock, 20+ on hand

$4.49

Hex Scr. 3/8-16 x 3.75" Lg. G rade 5

NLA

Currently unavailable

42" Blade

NLA

Currently unavailable

Carriage Bolt, 5/16-18 X 1"

In Stock, Qty 18

$4.49

42" Wear Plate

NLA

Currently unavailable

Shoe Skid

NLA

Currently unavailable

Hex Center Lock Nut, 5/16-18

In stock, only 2 left!

$3.49

Hex Screw, 1/2-13

Unavailable

Internal Cotter Pin, 1/2"

Superseded toMTD 714-0101

Unavailable

Hex Center Lock Nut, 3/8-16

Usually ships in 3 - 6 days

$4.99

Flat Washer, .385" X 1.00" X .135"

In stock, 20+ on hand

$4.99

Compression Spring

NLA

Currently unavailable

Cotter Pin, 5/32 Dia

Unavailable

Washer, 5/16" Std.

NLA

Currently unavailable

Push Bar Channel

NLA

Currently unavailable

Pivot Support Bracket

NLA

Unavailable

Lift Link

NLA

Unavailable

PIN-PIVOT

Unavailable

Hex Screw, 3/8"-16 X 1.0"

Superseded toMTD 710-0514

In stock, 20+ on hand

$4.49

Support Bracket Ass'y.

NLA

Unavailable

Lock Washer, .375"

Superseded toMTD 736-0169

Unavailable

Hex Nut, 3/8-16

In stock, 20+ on hand

$4.49

Lock Washer, .375"

Superseded toMTD 736-0169

Unavailable

Hex Jam Nut, 3/18-1

Superseded toMTD 912-3008

In Stock, Qty 9

$4.99

Support Bracket

NLA

Currently unavailable
