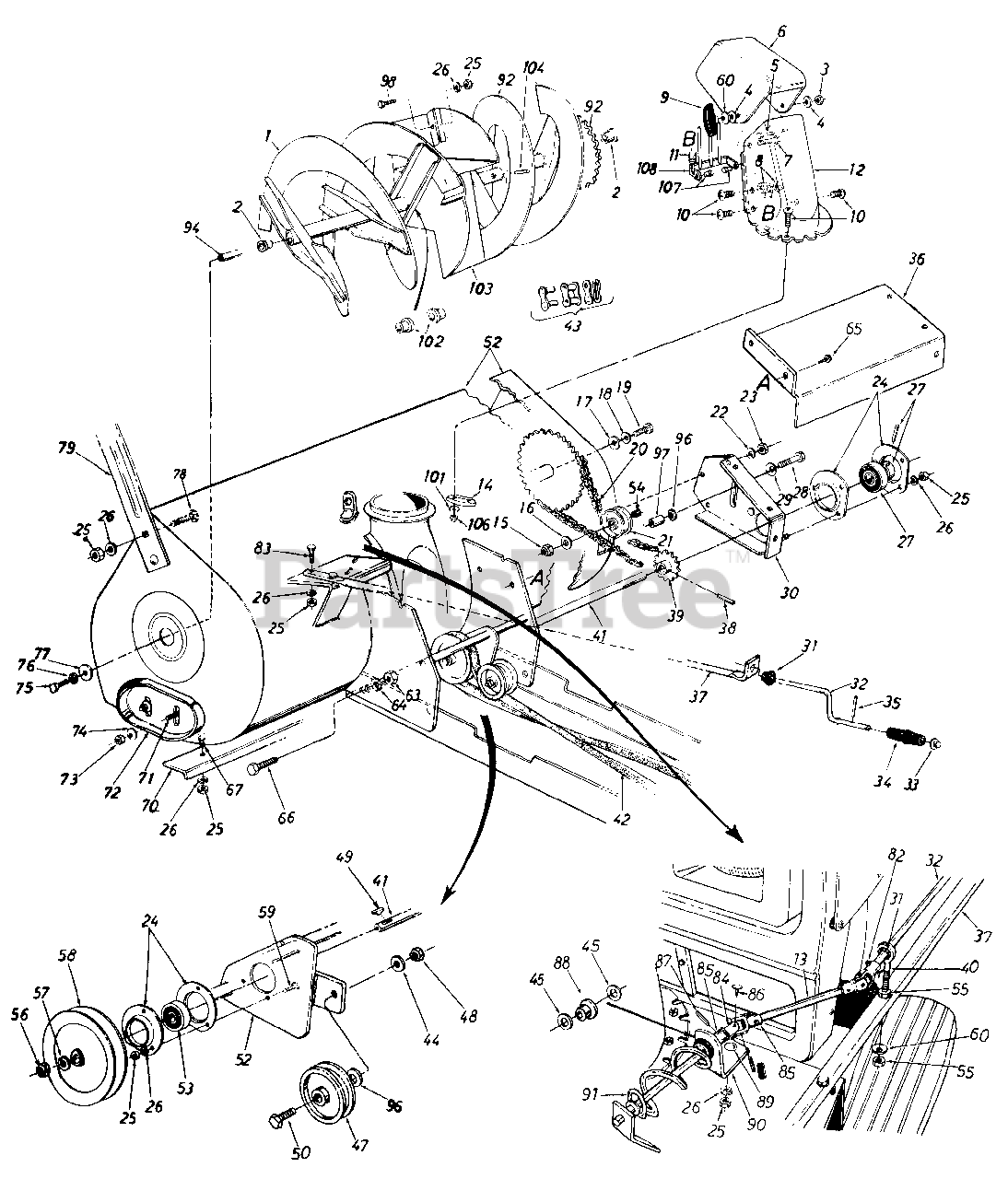

MTD 19930-9 - MTD 40" Snow Thrower Attachment (1989) 40" Parts Lookup and Diagrams

Back to Accessories & Attachments

Search within parts diagrams

All Diagrams (2) 40" 40"

40" Parts

MTD 784-5221

SPIRAL-LH

(L.H.)

Unavailable

MTD 741-0227

Flange Bearing

In Stock, Qty 13

$12.99

MTD 712-0158

Hex Center Lock Nut, 5/16-18

Superseded toMTD 912-0158

In stock, only 2 left!

$3.49

MTD 736-0231

Flat Washer

Superseded toMTD 936-0231

Unavailable

MTD 710-0323

Truss Machines Screw, 5/16"-18 X .75

In stock, only 2 left!

$4.99

MTD 731-0846B

Upper Chute

Superseded toMTD 731-0846C

In stock, only 2 left!

$55.99

MTD 710-0276

Carriage Bolt, 5/16-18 X 1"

In Stock, Qty 18

$4.49

MTD 712-0291

Hex Lock Nut, 1/4-20

Superseded toMTD 912-0291

Unavailable

MTD 09966

Star Knob, 5/16"-18

Superseded toMTD 720-04072A

In stock, only 3 left!

$7.49

MTD 710-0255

Machine Screw, 1/4-20 X 0.75

Superseded toMTD 710-0924

In Stock, Qty 17

$4.99

MTD 732-0118

SPRING-EXTENSION

Superseded toMTD 732-0118A

Usually ships in 3 - 6 days

$11.99

MTD 731-0843B

Lower Chute, 6 In B

Superseded toMTD 931-0843B

Unavailable

MTD 747-0523A

Chute Crank Ext. Rod

Unavailable

MTD 731-0851

Chute Keeper Flange

Superseded toMTD 731-0851A

In Stock, Qty 13

$4.49

MTD 712-0375

Hex Center Lock Nut, 3/8-16

Usually ships in 3 - 6 days

$4.99

MTD 736-0300

Flat Washer, .406" X .875" X .059"

Superseded toMTD 936-0300

Usually ships in 3 - 6 days

$4.99

MTD 736-0179

Flat Washer

In Stock, Qty 9

$4.99

MTD 736-0253

Bell Washer

Superseded toMTD 936-0253

Unavailable

MTD 710-0493

Hex Capscrew

Superseded toMTD 710-3131

In stock, only 1 left!

$5.99

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

Unavailable

MTD 756-0358A

Fl.-ldlere w/Flanges 1.875

Unavailable

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 1 left!

$4.99

MTD 712-0287

Hex Nut, 1/4-20

Superseded toMTD 912-0287

Unavailable

MTD 741-0311

BEARING FLANGE

Superseded toMTD 941-0311

Unavailable

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 736-0119

Lock Washer, .03125"

Superseded toMTD 936-0119

In stock, 20+ on hand

$4.99

MTD 741-0310

Ball Brg. .75" I.D.

Unavailable

MTD 710-0347

Hex Screw, 3/8"-16 X 1.75"

In stock, 20+ on hand

$5.49

MTD 736-0105

Bell Washer, .400" X .060" X .88"

In stock, 20+ on hand

$4.99

MTD 05721A

Chain Guard Ass'y.

Unavailable

MTD 741-0475

Bushing, .380 ID

Superseded toMTD 941-0475

In stock, 20+ on hand

$4.49

MTD 747-0438

Chute Crank 375" Dia. x 34.5" Lg.

Unavailable

MTD 726-0100

Push Nut

Superseded toMTD 926-0100

Unavailable

MTD 720-0201A

Chute Crank Knob

(Black)

In stock, only 2 left!

$11.99

MTD 715-0138

Roll Pin, 1/18 Dia

Superseded toMTD 915-0138

In Stock, Qty 12

$5.49

MTD 784-5092A

Drive Shaft Cover

Unavailable

MTD 749-0675

Chute Crank Support Tubing

Unavailable

MTD 715-0118

Spiral Pin, 5/16 X 1.75"

Superseded toMTD 915-0118

Unavailable

MTD 713-0188

Sprocket Assembly, 14 Teeth

Unavailable

MTD 747-0481A

Eyebolt

Unavailable

MTD 784-5078

Drive Shaft

Unavailable

MTD 754-0291

Belt, 1/2" X 88"

Superseded toMTD 954-0291A

In stock, only 2 left!

$60.99

MTD 713-0154

Master Link, #420

Superseded toMTD 913-0154

Unavailable

MTD 736-0169

Lock Washer, .375"

Superseded toMTD 936-0169

Unavailable

MTD 736-0140

Flat Washer

Superseded toMTD 936-0140

Unavailable

MTD 756-0417

Idler Pulley

Unavailable

MTD 712-0342

Hex Jam Nut, 3/18-1

Superseded toMTD 912-3008

In Stock, Qty 9

$4.99

MTD 714-0388

Key, 3/16 X 5/8

Superseded toMTD 914-0388

In stock, only 1 left!

$8.49

MTD 710-0347

Hex Screw, 3/8"-16 X 1.75"

In stock, 20+ on hand

$5.49

MTD 784-5081A

Spiral Housing Ass'y.

Unavailable

MTD 741-0309

Flange Bearing

Superseded toMTD 941-0309

In Stock, Qty 6

$79.99

MTD 741-0322

Sleeve Bearing

Unavailable

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 712-0301

Hex Jam Nut, 3/4-10

Usually ships in 3 - 6 days

$8.49

MTD 736-0367

WASHER

Superseded toMTD 936-0364

Unavailable

MTD 756-0456

5/8 V Pulley .75" I.D. x 6.0" O.D.

Unavailable

MTD 710-0198

SCREW-HEX SEMS 5/1

Superseded toMTD 910-0198

Unavailable

MTD 736-0242

Bell Washer, .337" X .867" X .057"

In stock, 20+ on hand

$4.99

MTD 712-0206

Hex Nut, 1/2"-13

Superseded toMTD 912-0206

Unavailable

MTD 736-0921

Lock Washer, .50"

In stock, 20+ on hand

$4.99

MTD 710-0599

Self-Tapping Hex Washer Head Screw

In stock, 20+ on hand

$4.49

MTD 710-0490

Hex Scr. 1/2-13 x 2.75" Lg.

Unavailable

MTD 710-0451

Carriage Bolt, 5/16-18 X .75"

In stock, 20+ on hand

$4.49

MTD 05723

Shave Plate

Unavailable

MTD 710-0790

Carriage Bolt, 3/8-16 X .750

Superseded toMTD 710-0389

Usually ships in 3 - 6 days

$4.99

MTD 784-5038A

Snow Slide Shoe, Black

Superseded toMTD 784-5038B-0637

In Stock, Qty 10

$29.99

MTD 712-0342

Hex Jam Nut, 3/18-1

Superseded toMTD 912-3008

In Stock, Qty 9

$4.99

MTD 736-0105

Bell Washer, .400" X .060" X .88"

In stock, 20+ on hand

$4.99

MTD 710-0493

Hex Capscrew

Superseded toMTD 710-3131

In stock, only 1 left!

$5.99

MTD 736-0253

Bell Washer

Superseded toMTD 936-0253

Unavailable

MTD 736-0179

Flat Washer

In Stock, Qty 9

$4.99

MTD 710-0260

Carriage Bolt, 5/16 X .625

Superseded toMTD 710-0260A

In Stock, Qty 5

$4.49

MTD 05139A

BLADE-GUIDE (DRIFT

Superseded toMTD 790-00181-0637

Usually ships in 3 - 6 days

$45.99

MTD 714-0111

Cotter Pin, 3/32 X 7/8

Superseded toMTD 914-0111

Unavailable

MTD 710-0442

Hex Capscrew, 5/16"-18 X 1.5"

Superseded toMTD 710-0805A

In Stock, Qty 11

$4.99

MTD 711-0584

Joint Block

Unavailable

MTD 05066

Joint Brkt. Ass'y.

Unavailable

MTD 728-0147

RIVET

Unavailable

MTD 715-0129

Spirol Spring Pin

Usually ships in 3 - 6 days

$4.99

MTD 741-0475

Bushing, .380 ID

Superseded toMTD 941-0475

In stock, 20+ on hand

$4.49

MTD 710-0451

Carriage Bolt, 5/16-18 X .75"

In stock, 20+ on hand

$4.49

MTD 784-5085A

Chute Crank Brkt.

Unavailable

MTD 784-5084A

CRANK ASM. CHUTE

Superseded toMTD 784-5084

Unavailable

MTD 784-5222

Spiral Ass'y.

(R.H.)

Unavailable

MTD 05737

Spiral Axle

Unavailable

MTD 736-0247

Flat Washer, .41 Honda

In Stock, Qty 8

$10.99

MTD 750-0252

Idler Spacer

Superseded toMTD 950-0252

In Stock, Qty 5

$22.99

MTD 710-0451

Carriage Bolt, 5/16-18 X .75"

In stock, 20+ on hand

$4.49

101

MTD 736-0142

Flat Washer

In stock, only 4 left!

$4.99

102

MTD 741-0227

Flange Bearing

In Stock, Qty 13

$12.99

103

MTD 784-5216

PADDLE ASSY-ROTOR

Unavailable

104

MTD 715-0118

Spiral Pin, 5/16 X 1.75"

Superseded toMTD 915-0118

Unavailable

106

MTD 712-0107

Hex Center Lock Nut, 1/4-20

Superseded toMTD 912-0107

In stock, only 4 left!

$4.99

107

MTD 738-0561

Shield Nut

Superseded toMTD 938-0561

Unavailable

108

MTD 784-5192

GUARD ASSY-CHUTE

Usually ships in 3 - 6 days

$99.99
