30941 - Toro 41cc Backpack Blower (SN: 006000001 - 006002183) (1986) CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

41cc Backpack Blower

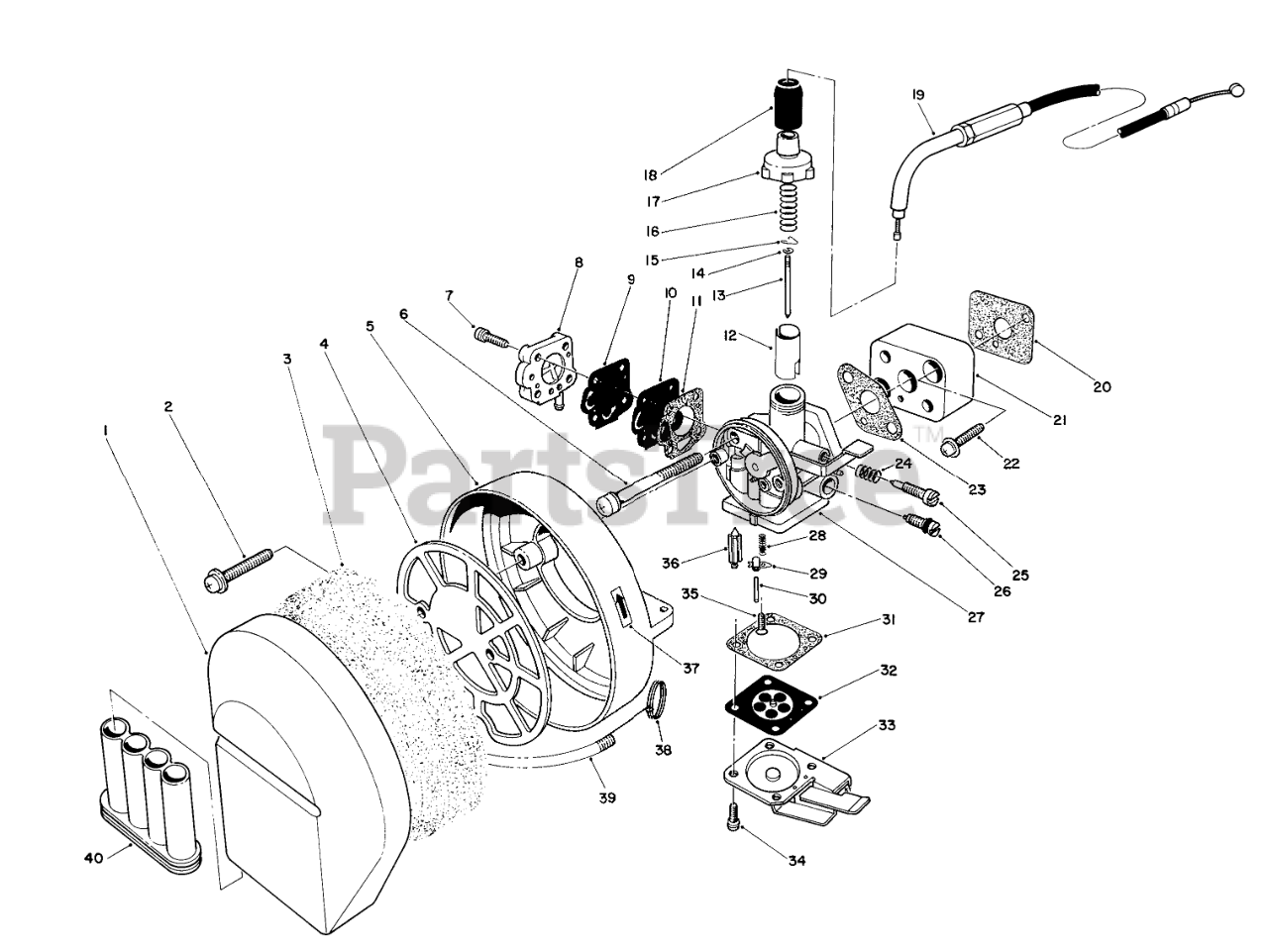

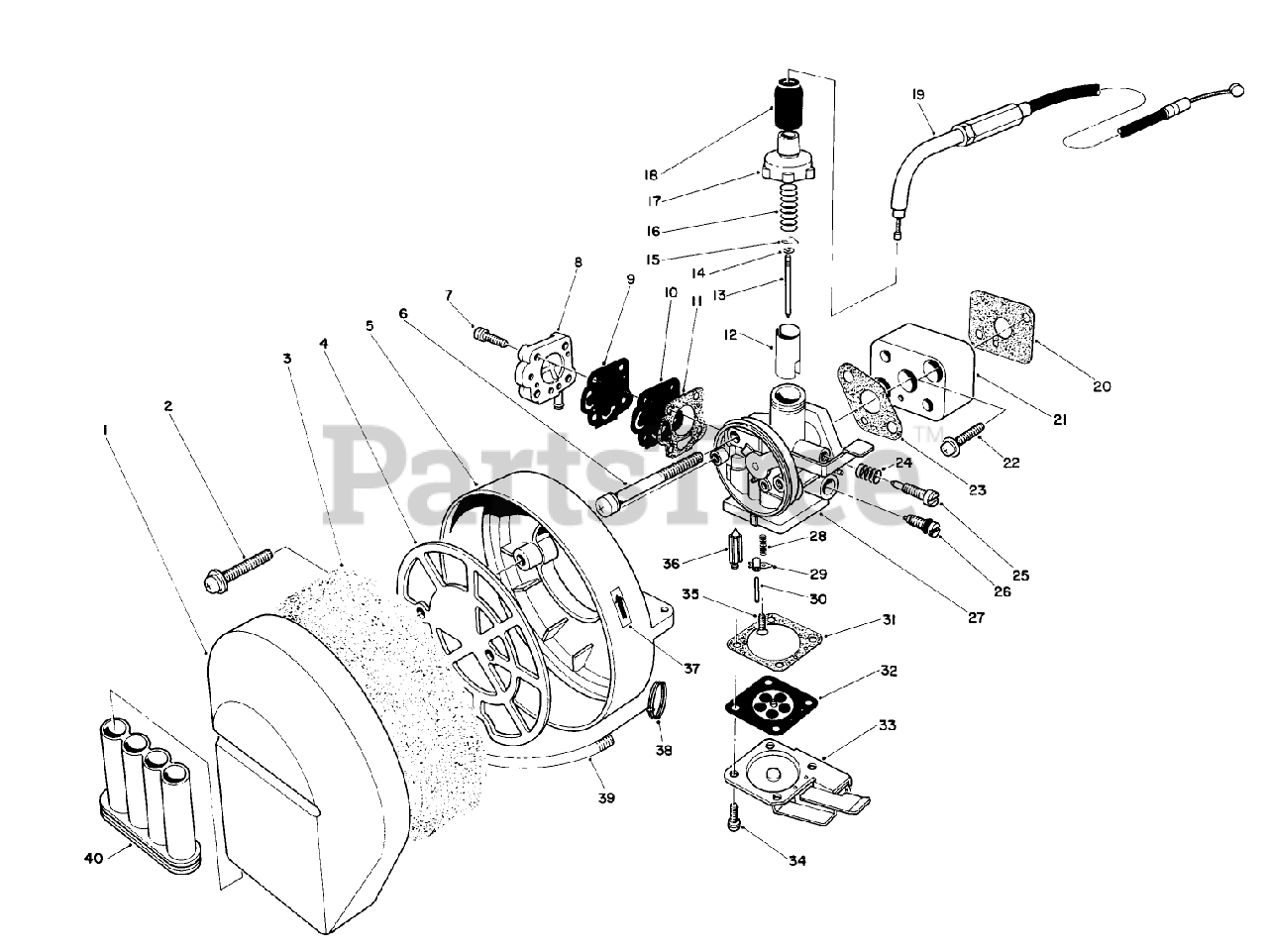

CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 56-8690

CLEANER COVER
Usually ships in 1 day

$

$16.87

0

2

Toro Part# 56-8720

SCREW & WASHER
Usually ships in 5 to 8 days

$

$2.99

0

3

Toro Part# 56-8700

CLEANER ELEMENT
Usually ships in 1 day

$

$44.62

0

Usually ships same day

Not available

$

$

5

Toro Part# 56-8730

CLEANER CASE
Usually ships in 5 to 8 days

$

$87.33

0

6

Toro Part# 56-8360

SCREW & WASHER
Usually ships same day

Not available

$

$

7

Toro Part# 56-8440

Screw
(Superseded to 54-5040)
Usually ships same day

Not available

$

$

8

Toro Part# 56-8450

PUMP COVER ASM
Usually ships same day

Not available

$

$

9

Toro Part# 56-8460

PUMP DIAPHRAGM
Usually ships in 5 to 8 days

$

$76.05

0

10

Toro Part# 56-8470

PUMP CHECK VALVE
Usually ships in 5 to 8 days

$

$43.01

0

11

Toro Part# 56-8480

PUMP COVER GASKET
Usually ships in 5 to 8 days

$

$7.11

0

12

Toro Part# 56-8570

THROTTLE VALVE
Usually ships same day

Not available

$

$

13

Toro Part# 56-8560

Needle-Jet
Usually ships same day

Not available

$

$

14

Toro Part# 56-8550

SPRING RETAINER
Usually ships same day

Not available

$

$

15

Toro Part# 56-8540

Clip-Needle
Usually ships same day

Not available

$

$

16

Toro Part# 56-8530

Spring-Throttle
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$16.73

0

18
Usually ships same day

Not available

$

$

19

Toro Part# 56-8640

THROTTLE WIRE
Usually ships in 5 to 8 days

$

$56.20

0

20
Usually ships same day

Not available

$

$

21

Toro Part# 56-8400

INSULATOR
Usually ships in 5 to 8 days

$

$71.11

0

22

Toro Part# 56-8350

SCREW & WASHER
Usually ships same day

Not available

$

$

23

Toro Part# 56-8390

CARBURETOR GASKET
Usually ships in 5 to 8 days

$

$4.29

0

24
Usually ships in 5 to 8 days

$

$9.49

0

25

Toro Part# 56-8590

Screw-Adjusting
Usually ships same day

Not available

$

$

26

Toro Part# 56-8600

MAIN JET NEEDLE ASM
Usually ships in 5 to 8 days

$

$55.70

0

27

Toro Part# 56-8370

Carburetor Assembly (Incl. Ref. #7-18, 24-26, & 28-36)
Usually ships same day

Not available

$

$

28
Usually ships same day

Not available

$

$

29

Toro Part# 56-8490

FLOAT ARM
Usually ships same day

Not available

$

$

30

Toro Part# 56-8500

FLOAT PIN
Usually ships same day

Not available

$

$

31
Usually ships in 5 to 8 days

$

$19.78

0

32

Toro Part# 56-8630

MAIN DIAPHRAGM ASM
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

34

Toro Part# 54-5110

SCREW W/ WASHER
Usually ships same day

Not available

$

$

35

Toro Part# 54-5080

FLOAT SCREW
Usually ships same day

Not available

$

$

36

Toro Part# 54-5050

FLOAT VALVE
Usually ships in 1 day

$

$27.70

0

37

Toro Part# 54-5170

CHOKE LABEL
Usually ships same day

Not available

$

$

38
Usually ships same day

Not available

$

$

39
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$20.53

0

Toro Part# 56-8650

Air Cleaner Assembly (Incl. Ref. #1, 3-5, 37-40)

Note: Not illustrated

Usually ships same day

Not available

$

$
