3410 (990755) - Simplicity Landlord Garden Tractor CLUTCH AND BRAKE GROUP Parts Diagram

Landlord Garden Tractor

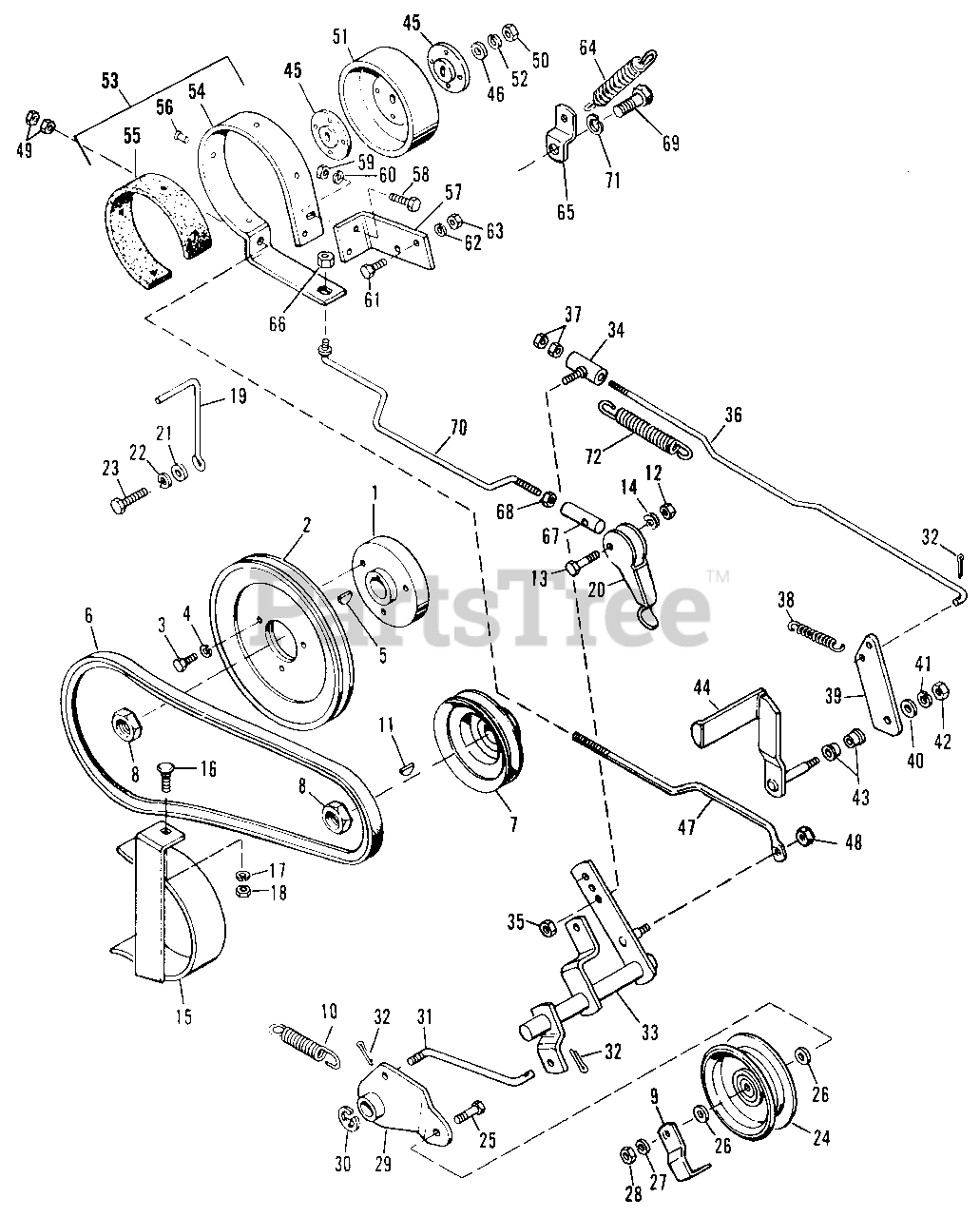

CLUTCH AND BRAKE GROUP Parts Diagram

  • Title

1

Simplicity 174336

Hub Pulley

$

$

Not available

2

Simplicity 174356

Pulley Drive

$

$

Not available

3

Simplicity 2705001

Hex Capscrew, 5/16"-18 x 7/8"

$

$

Not available

4

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

5

Simplicity 2725003

Key, Woodruff, No. 9

$

$

Not available

6

Simplicity 2174364SM

V-BELT, 49.1"

$31.99

$

In Stock, only 1 left!

0

7

Simplicity 2174359SM

Pulley

$98.99

$

Usually ships in 2-12 days

0

8

Simplicity 2717517

Hex Jam Nut, 3/4"-16

$

$

Not available

9

Simplicity 2106717

Belt Guide

$

$

Not available

10

Simplicity 2121037SM

Spring

$

$

Not available

11

Simplicity 2725003

Key, Woodruff, No. 9

$

$

Not available

12

Simplicity 2717509

Full Hex Lock Nut, 1/4"-20

$

$

Not available

13

Simplicity 2715062

Hex Capscrew, 1/4"-20 x 1-1/4"

$

$

Not available

14

Simplicity 721702

Double Lockwasher, 1/4"

$

$

Not available

15

Simplicity 174424

Guard Belt Assembly

$

$

Not available

16

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

17

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

18

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

19

Simplicity 2106707SM

Belt Stop

$

$

Not available

20

Simplicity 2172108SM

Parking Brake Lever

$

$

Not available

21

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

22

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

23

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

24

Simplicity 2174497

Idler Pulley
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

25

Simplicity 2705009

Hex Capscrew, 3/8"-16 x 1-1/2"

$

$

Not available

26

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

27

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

28

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

29

Simplicity 2173861SM

Idler Lever Assembly
(Superseded to 2173861ASM)

$104.99

$

Usually ships in 2-12 days

0

30

Simplicity 2827793SM

Retaining Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 2164088SM

Clutch Link

$

$

Not available

32

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

33

Simplicity 172724

Pivot Lever Assembly

$

$

Not available

34

Simplicity 2164094SM

Rod Guide Assembly

$45.99

$

Usually ships in 2-12 days

0

35

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

36

Simplicity 174105

Brake & Clutch Rod Assy.

$

$

Not available

37

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

38

Simplicity 2121037SM

Spring

$

$

Not available

39

Simplicity 2157300SM

Pedal Foot Arm

$13.99

$

Usually ships in 2-12 days

0

40

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

41

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

42

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

43

Simplicity 2108419

Bushing

$

$

Not available

44

Simplicity 2171178

Foot Pedal Assembly

$

$

Not available

45

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

46

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

47

Simplicity 172722

Brake Rod

$

$

Not available

48

Simplicity 2717511

Full Hex Nut, 5/16"-18

$

$

Not available

49

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

50

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available

51

Simplicity 2157282

Brake Drum

$

$

Not available

52

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

53

Simplicity 2171497

Brake Band & Lining Assy.

$

$

Not available

54

Simplicity 1679359SM

Brake Band

$59.99

$

Usually ships in 2-12 days

0

55

Simplicity 2154133

Brake Lining

$

$

Not available

56

Simplicity 724501

Rivet No. 7 x 5/16"

$

$

Not available

57

Simplicity 164113

Brake Band Bracket

$

$

Not available

58

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

59

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

60

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

61

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4"

$

$

Not available

62

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

63

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

64

Simplicity 2174896SM

Tension Spring

$20.99

$

In Stock, only 2 left!

0

65

Simplicity 174893

Spring Clip

$

$

Not available

66

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

67

Simplicity 2171994SM

Rod End

$15.99

$

In Stock, only 1 left!

0

68

Simplicity 2717508

Full Hex Lock Nut, 5/16"-18

$

$

Not available

69

Simplicity 2705042

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

70

Simplicity 174708

Parking Brake Rod Assembly

$

$

Not available

71

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

72

Simplicity 2121037SM

Spring

$

$

Not available
