7060801 - Snapper Quick Height Adjust Kit

Quick Height Adjust Kit

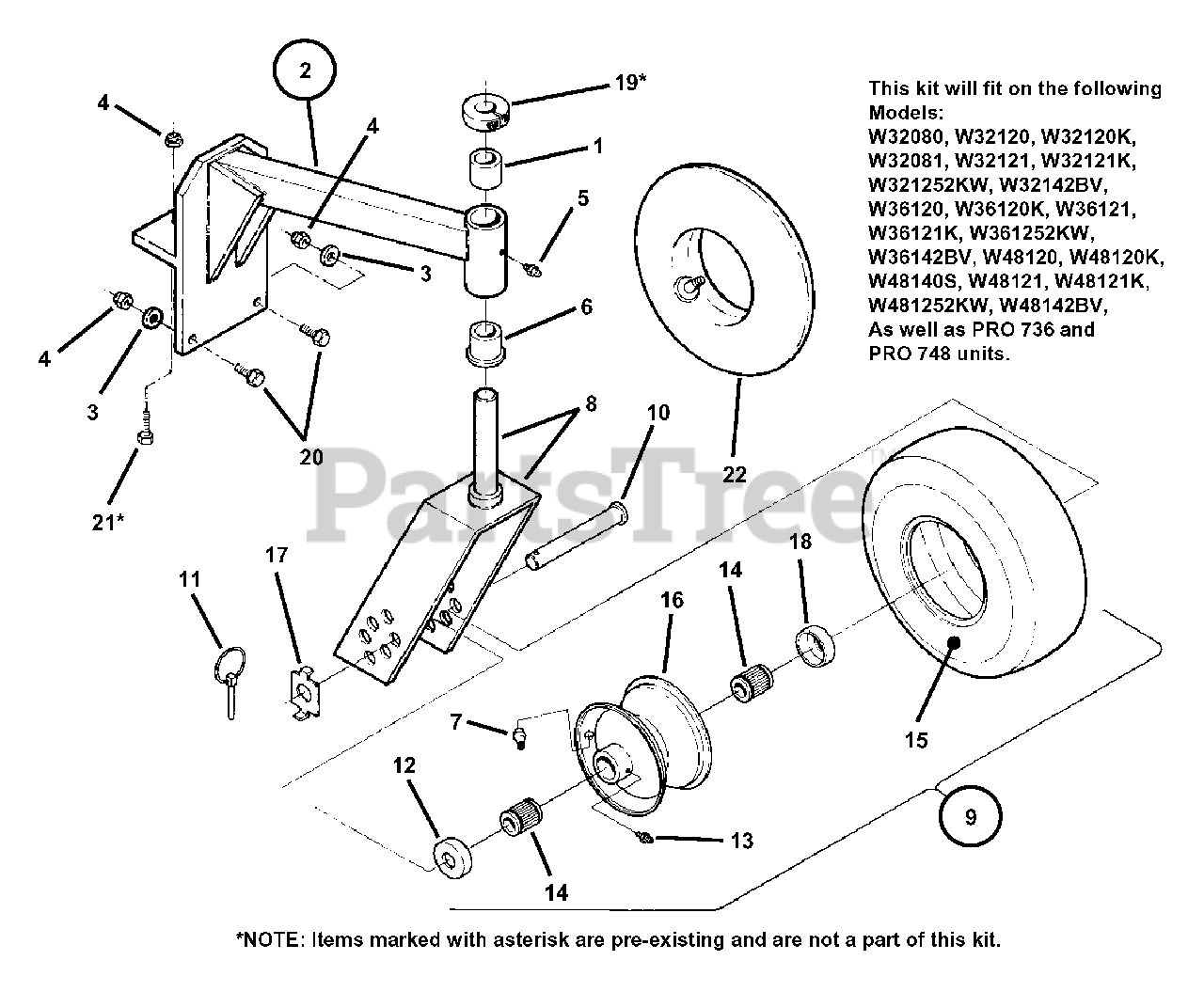

7060801 - Snapper Quick Height Adjust Kit > Parts Diagrams (1) > Caster Height Adjustment (Pneumatic)

  • Title
7060801

KIT, Quick Height Adjust (Pneu.)

Part# 7060801

Note: (Incl. 1-18 & 20)

OEM Warranty Repair Part for Snapper

Currently unavailable

7076516

1

BUSHING, Straight

Part# 7076516

OEM Warranty Repair Part for Snapper

Currently unavailable

7076399

2

SUPPORT, Caster w/Bushings (7-6514 & 7-6515) (2)

Part# 7076399

OEM Warranty Repair Part for Snapper

Currently unavailable

7090517

3

WASHER, 3/8" Flat

Part# 7090517 (Superseded to 7090517SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7091299

4

NUT, 3/8-16 Hex Nyloc

Part# 7091299 (Superseded to 703117)

Note: Was 76979

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7076997

5

FITTING, Lube, 1/8 NPT Straight

Part# 7076997

OEM Warranty Repair Part for Snapper

Currently unavailable

7076514

6

BEARING, Flange Thrust (powdered metal)

Part# 7076514 (Superseded to 7076514YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.09

7012234

7

STEM, Air Valve

Part# 7012234 (Superseded to 7012234SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $4.30

7076401

8

YOKE, Caster (weldment)

Part# 7076401

OEM Warranty Repair Part for Snapper

Not available

7076408

9

ASSEMBLY, Pneumatic Tire

Part# 7076408

Note: (Incl. 7, 12-16 & 18)

OEM Warranty Repair Part for Snapper

Not available

7076549

10

AXLE, Caster

Part# 7076549 (Superseded to 7076549YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $21.91

7076967

11

LYNCH PIN, 3/16" Diameter

Part# 7076967 (Superseded to 7076967YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.30

7077356

12

CAP, End

Part# 7077356

OEM Warranty Repair Part for Snapper

Currently unavailable

7076998

13

FITTING, Lube, 1/4-28, Straight

Part# 7076998 (Superseded to 703153)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.52

7077353

14

BEARING, Roller

Part# 7077353 (Superseded to 7077353YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $11.91

7077346

15

TIRE, Pneumatic

Part# 7077346 (Superseded to 7077346YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $65.40

7077350

16

RIM, Pneumatic Tire

Part# 7077350 (Superseded to 7077350YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $60.93

7077720

17

WASHER, Tab

Part# 7077720 (Superseded to 7077720YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.96

23557

18

CAP, End

Part# 23557

OEM Warranty Repair Part for Snapper

Currently unavailable

7077000

19

COLLAR, Clamp 7/8" (existing)

Part# 7077000 (Superseded to 7077000YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $22.92

7091304

20

SCREW, 3/8-16 x 1" Hex Head Cap

Part# 7091304 (Superseded to 703407)

Note: Was 90563

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $8.83

7076949

21

BOLT, 3/8-16 x 1-3/4" Hex Head Cap (existing)

Part# 7076949

OEM Warranty Repair Part for Snapper

Currently unavailable

7010821

22

TUBE, Inner

Part# 7010821 (Superseded to 7010821YP)

Note: (optional)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $12.97
