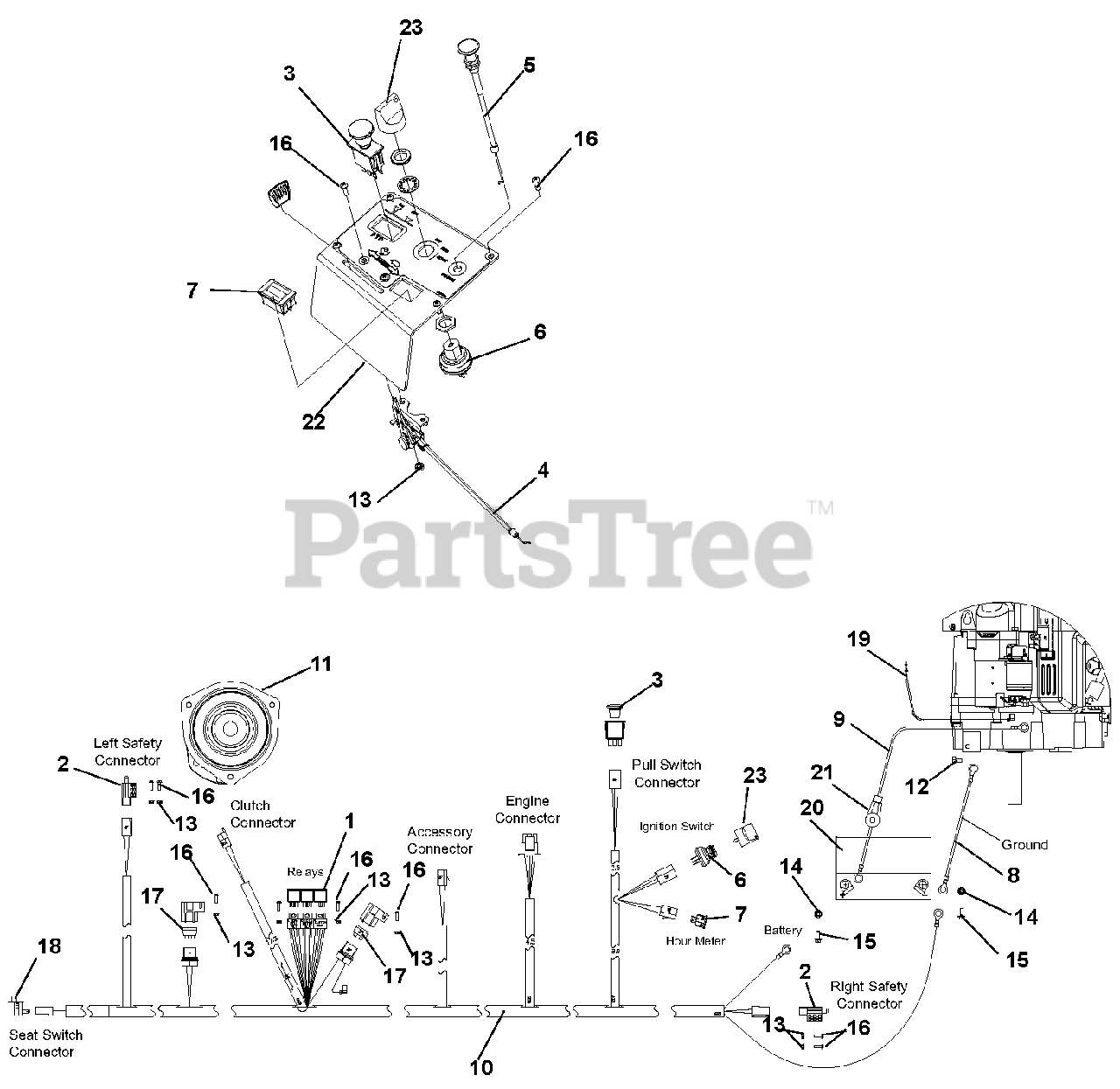

992407 - EverRide Warrior 60" ZT Zero-Turn Mower (SN: 000101 & Above) Electrical System Parts Diagram

Warrior 60" ZT Zero-Turn Mower

Electrical System Parts Diagram

  • Title

1

Gravely 00102770

Relay, ISO Mini Electric

$21.99

$

In Stock, only 1 left!

0

2

Gravely 00191256

Switch, Plunger
(Superseded to 08828100)

$20.99

$

Usually ships in 4-12 days

0

3

Gravely 00136574

Switch, PTO Engagement

$28.99

$

In Stock, only 1 left!

0

4

Gravely 03858700

Cable, Throttle

$59.99

$

In Stock, only 1 left!

0

5

Gravely 00180273

Cable, Choke 48"

$52.99

$

In Stock, only 1 left!

0

6

Gravely 00464000

Switch, Ignition (Includes item 23)
(Superseded to 04331600)

Note: (Includes item 23)

$42.99

$

In Stock, Qty 11

0

7

Gravely 00192296

Meter, Hour-LCD ALT

$68.99

$

Usually ships in 4-12 days

0

8

Gravely AA201019

Cable, Battery - 25" Ground

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 03821000

Cable, Battery - 42" Positive

$

$

Not available

10

Gravely 03798600

Harness, Wiring

$

$

Not available

11

Gravely 00180923

Clutch, Electric - OGURA, GT3

$491.99

$

Usually ships in 4-12 days

0

12

Gravely 00961281

Bolt, M8 x 1.25 x14 Hex 8.8
(Superseded to 05970001)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00130923

Locknut, 10-24 KEPS
(Superseded to 06500704)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 00964040

Locknut, 1/4-20 WHIZ

$

$

Not available

15

Gravely 00963001

Bolt, 1/4-20 x .625 WSH

$

$

Not available

16

Gravely 00967340

Screw, Pan Head Phillips #10-24 x 5/8

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 00191262

Fuse, 20 AMP Blade S/O

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 02754100

Seat Switch

$9.49

$

In Stock, Qty 20+

0

19

Gravely 03286700

Lead, Starter Solenoid

$9.49

$

In Stock, only 1 left!

0

20

Gravely 00181779

Battery, 12V

$

$

Not available

21

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 03816551

Control Panel

$

$

Not available

23

Gravely 09287000

Key, w/Shield

$15.99

$

In Stock, Qty 20+

0
