EG2200Z A (GE200) - Honda Generator, Made in Japan (SN: GE200-1036167 - GE200-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

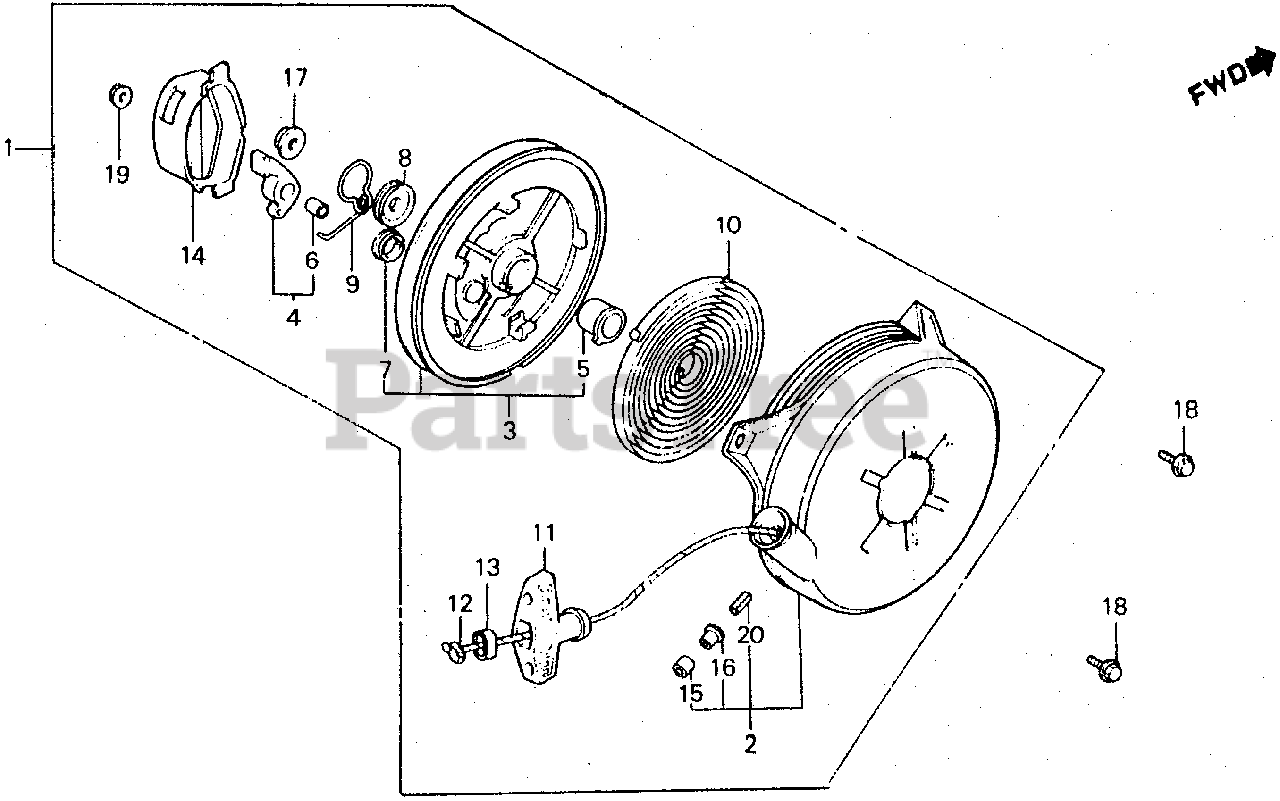

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-888-040H

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 28410-888-030H

CASE, STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-889-010

REEL, STARTER

$36.99

$

Usually ships in 3-6 days

0

4

Honda 28422-883-020

RATCHET

$

$

Not available

5

Honda 28424-883-000

BOSS, REEL

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28425-889-300

BUSH, RATCHET

$4.49

$

In Stock, only 1 left!

0

7

Honda 28427-883-300

BUSH, REEL STARTER

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28432-883-000

PLATE, FRICTION

$5.49

$

Usually ships in 3-6 days

0

9

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION

$9.49

$

In Stock, only 1 left!

0

10

Honda 28442-883-000

SPRING, RETURN

$19.99

$

In Stock, only 2 left!

0

11

Honda 28461-883-000

GRIP, STARTER

$8.99

$

In Stock, only 1 left!

0

12

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$11.99

$

In Stock, Qty 15

0

12

Honda 28462-888-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55")
(Superseded to 28462-ZH8-003)

$11.99

$

In Stock, Qty 15

0

13

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

14

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-YA0-N40)

$11.99

$

In Stock, only 1 left!

0

15

Honda 28476-888-300

ROLLER, GUIDE

$

$

Currently unavailable

16

Honda 28477-888-300

BUSH, ROLLER

$

$

Not available

17

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$1.99

$

In Stock, Qty 5

0

18

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$1.99

$

In Stock, Qty 5

0

19

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94305-30182

PIN, SPRING (3X18)

$1.49

$

Usually ships in 3-6 days

0
