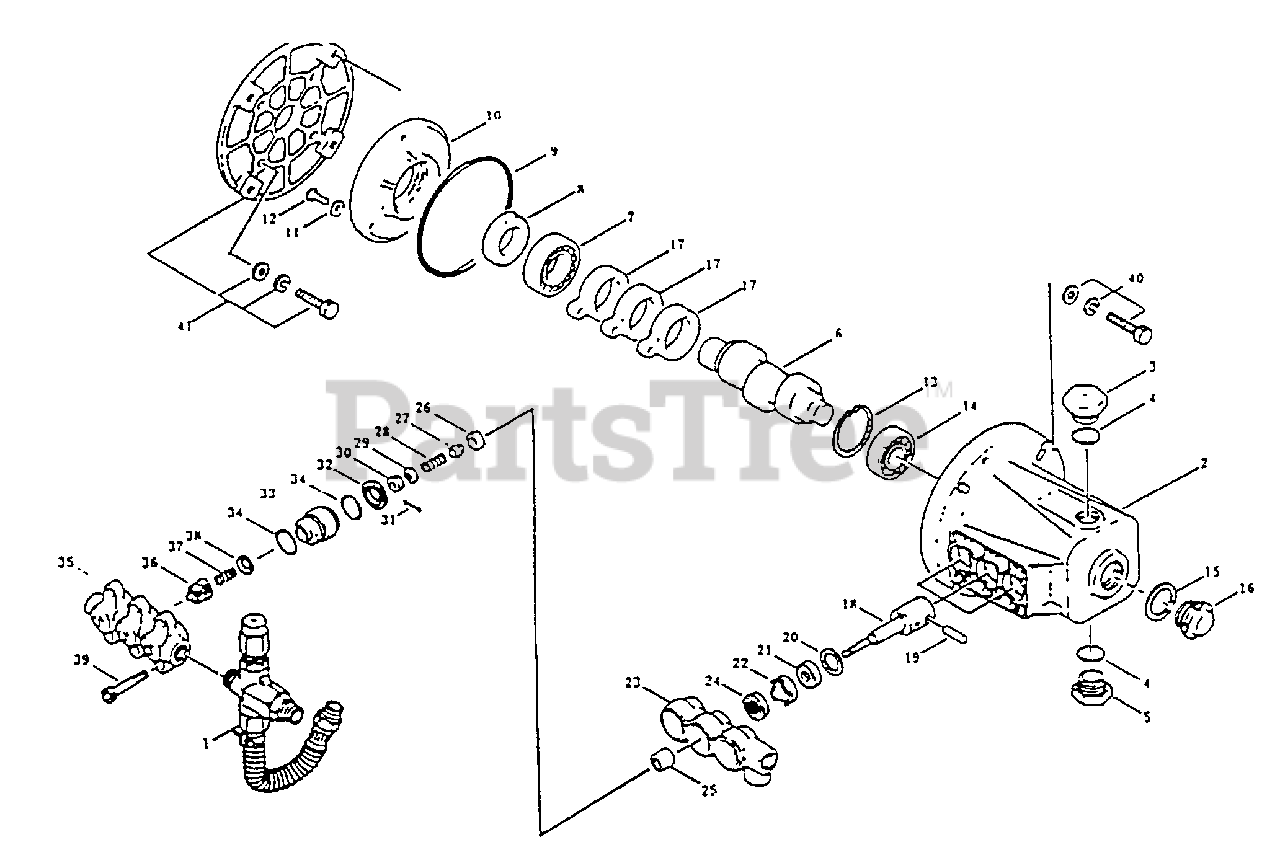

HPW 1550 B (UT-01811) - Homelite Pressure Washer SFX Plunger Pump Parts Diagram

Pressure Washer

SFX Plunger Pump Parts Diagram

  • Title

1

Homelite E07500X

Regulating Unloader

Note: All Models

$

$

Currently unavailable

2

Homelite E45702

Crankcase

Note: All Models

$

$

Currently unavailable

3

Homelite E44839

Oil Filter Cap

Note: All Models

$

$

Currently unavailable

4

Homelite E14179

O-Ring

Note: Buna. All Models

$

$

Currently unavailable

5

Homelite E44842

Drain Plug - 1/2" NPT

Note: All Models

$

$

Currently unavailable

6

Homelite E44929

Crankshaft - 3450 RPM

Note: 2SFX22E

$

$

Currently unavailable

Homelite E45844

Crankshaft - 3450 RPM

Note: 2SFX25E

$

$

Currently unavailable

Homelite E45426

Crankshaft - 1725 RPM

Note: 2SFX29EL

$

$

Currently unavailable

Homelite E44934

Crankshaft - 3450 RPM

Note: 2SFX30G

$

$

Currently unavailable

Homelite E45100

Crankshaft - 3450 RPM

Note: 2SFX35G

$

$

Currently unavailable

7

Homelite E14488

Bearing - Inner

Note: All Models

$

$

Currently unavailable

8

Homelite E44859

Oil Seal

Note: Buna. All Models

$

$

Currently unavailable

9

Homelite E14044

O-Ring, Bearing Case

Note: Buna. All Models

$

$

Currently unavailable

10

Homelite E44857

Bearing Case - Inner

Note: All Models

$

$

Currently unavailable

11

Homelite E150810

Seal Washer (M6)

Note: All Models

$

$

Currently unavailable

12

Homelite E81455

Phil. Head Screw (M6 x 16)

Note: Zinc Plated

$

$

Currently unavailable

13

Homelite E12385

Retaining Ring

Note: All Models

$

$

Currently unavailable

14

Homelite E15710

Bearing Outer -

Note: All Models

$

$

Currently unavailable

15

Homelite E44428

Flat Flex, Gasket, Oil Gauge

Note: All Models

$4.49

$

Usually ships in 3-7 days

0

16

Homelite E43987

Bubble Oil Guage

Note: All Models

$

$

Currently unavailable

17

Homelite E45876

Connecting Rod "H"

Note: All Models

$

$

Currently unavailable

18

Homelite E45999

Piston Rod - Unchromed

Note: All Models

$

$

Currently unavailable

Homelite E45578

Piston Rod - Unchromed

Note: 2SRX29EL

$

$

Currently unavailable

19

Homelite E16948

Piston Rod Pin

Note: All Models

$

$

Currently unavailable

20

Homelite E20017

Washer

Note: 304SS. All Models

$

$

Currently unavailable

21

Homelite E25461

Oil Seal

Note: Buna. All Models

$

$

Currently unavailable

22

Homelite E44869

Seal Retainer

Note: PVDF. All Models

$

$

Currently unavailable

23

Homelite E44874

Inlet Manifold

Note: Brass. All Models

$

$

Currently unavailable

24

Homelite E44875

Lo-Pressure Seal

Note: Buna. All Models

$

$

Currently unavailable

25

Homelite E45847

Ceramic Plunger

Note: All Models

$

$

Currently unavailable

Homelite E45429

Ceramic Plunger

Note: 2SFX29EL

$

$

Currently unavailable

26

Homelite E44873

Inlet Valve

Note: PVDF. All Models

$

$

Currently unavailable

27

Homelite E44871

Spacer

Note: 304SS. All Models

$

$

Currently unavailable

28

Homelite E44872

Inlet Valve Spring

Note: 304SS. All Models

$

$

Currently unavailable

29

Homelite E88575

Conical Washer - (M6)

Note: 304SS. All Models

$

$

Currently unavailable

30

Homelite E27000

Nut (M6)

Note: 304SS. All Models

$

$

Currently unavailable

31

Homelite E14158

Cotter Pin

Note: 304SS. All Models

$

$

Currently unavailable

32

Homelite E43245

Hi-Pressure Seal

Note: All Models

$

$

Currently unavailable

33

Homelite E45859

Discharge Adapter Seat

Note: Brass. All Models

$

$

Currently unavailable

Homelite E45923

Discharge Adapter Seat

Note: Brass. 2SFX29EL

$

$

Currently unavailable

34

Homelite E23172

O-Ring Adapter

Note: Buna. All Models

$

$

Currently unavailable

35

Homelite E44879

Discharge Manifold

Note: Brass. All Models

$

$

Currently unavailable

36

Homelite E44565

Valve Spring Retainer

Note: PVDF. All Models

$

$

Currently unavailable

37

Homelite E43360

Discharge Valve Spring

Note: 304SS. All Models

$

$

Currently unavailable

38

Homelite E43723

Discharge Valve

Note: 304SS. All Models

$

$

Currently unavailable

39

Homelite E87859

Hex Socket Head Screw (M8 x 75. Dschg. Mlld.)

Note: Zinc Plated. All Models

$

$

Currently unavailable

40

Homelite E30517

Bolt Mount Kit

Note: Zinc Plated. All Models

$

$

Currently unavailable

Homelite E30980

Flat Washer-3/8"

$

$

Currently unavailable

Homelite E30921

Split Lock Washer - 3/8"

$

$

Currently unavailable

Homelite E34100

Hex Bolt (3/8"-16 x 1-3/8")

$

$

Currently unavailable

Homelite E06106

Antiseize Lubricant

$

$

Currently unavailable

Homelite E30050

Key (3/16 x 3/16 x 1-1/4" HD)

$

$

Currently unavailable

41

Homelite E30968

Adapter Mount Kit - Gas

Note: All Gas Models

$

$

Currently unavailable

Homelite E15845

Split Lock Washer (M8)

$

$

Currently unavailable

Homelite E44843

Hex Head Screw - 5/16-24

$

$

Currently unavailable

Homelite E44942

Flange

Note: All Models

$

$

Currently unavailable

Homelite E12489

Washer (M8)

Note: All Models

$

$

Currently unavailable

Homelite E34056

Valve Kit

Note: (Includes 33, 34, 36, 37, 38) All Models

$

$

Currently unavailable

Homelite E34053

Seal Kit

Note: (Includes 24, 31, 32, 34) All Models

$

$

Currently unavailable
