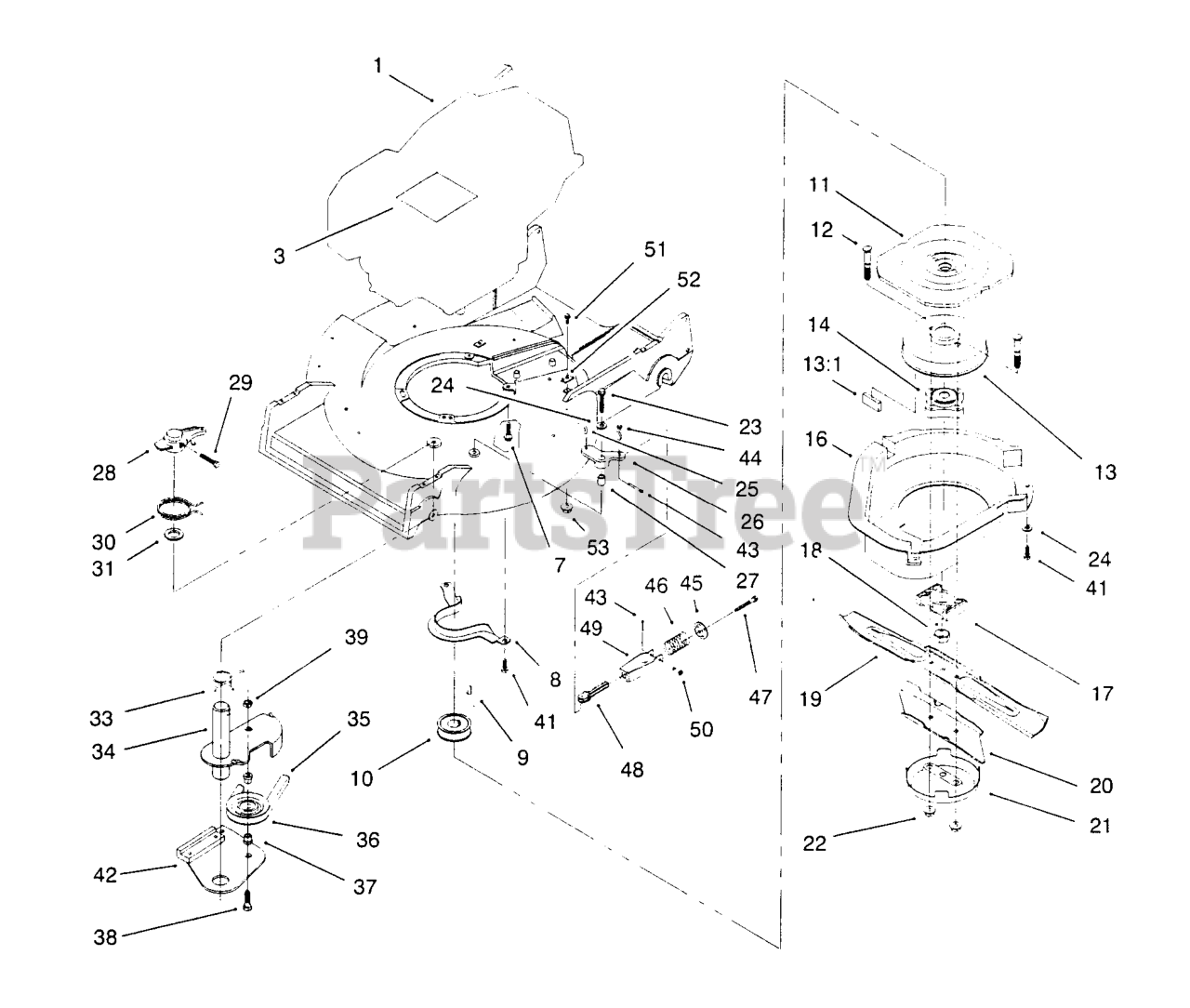

M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 220000 - 259999) (2000) Engine And BBC Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

Engine And BBC Assembly Parts Diagram

  • Title

1

Engine - Kawasaki

$

$

Not available

Fc150v Es - 33

$

$

Not available

3

Exmark 1-213387

DISCONTINUED

$

$

Not available

7

Exmark 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

8

Exmark 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

9

Exmark 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, Qty 10

0

10

Exmark 56-6180

PULLEY-DRIVER

$51.99

$

In Stock, Qty 18

0

11

Exmark 56-6160

56-6160-03
(Superseded to 56-6160-03)

$104.99

$

In Stock, only 2 left!

0

12

Exmark 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 20+

0

13

Exmark 94-9431

BRAKE DRUM ASM

$44.99

$

In Stock, Qty 20+

0

13:1

Exmark 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 8

0

14

Exmark 42-6890

HUB ASM

$93.99

$

In Stock, only 1 left!

0

16

Exmark 46-5693

SHIELD

$31.99

$

In Stock, Qty 11

0

17

Exmark 62-4280

107-4275
(Superseded to 107-4275)

$23.99

$

In Stock, only 1 left!

0

18

Exmark 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 42-1000-03

107-4276-03
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

20

Exmark 91-2255-03

STIFFENER-BLADE

$76.99

$

In Stock, Qty 7

0

21

Exmark 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

22

Exmark 54-9190

Nut - Lock
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Exmark 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Exmark 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

26

Exmark 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

27

Exmark 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0

29

Exmark 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

30

Exmark 49-7970

SPRING-TORSION

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 85-6880

SPRING-TORSION

$6.49

$

In Stock, only 1 left!

0

34

Exmark 84-9130

ARM-IDLER

$42.99

$

In Stock, only 2 left!

0

35

Exmark 100-6486

V-BELTNSP
(Superseded to 100-6486-SL)

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 46-5650

117-5299
(Superseded to 117-5299)

$42.99

$

In Stock, Qty 16

0

37

Exmark 46-5631

SPACER-PULLEY, IDLER

$2.99

$

In Stock, only 2 left!

0

38

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

41

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

42

Exmark 84-9180

125-1065
(Superseded to 125-1065)

$25.99

$

In Stock, only 4 left!

0

43

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

44

Exmark 84-9050

PIN-SPRING

$13.99

$

Usually ships in 3-6 days

0

45

Exmark 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

46

Exmark 84-9100

SPRING

$12.99

$

Usually ships in 3-6 days

0

47

Exmark 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 84-8870

106-0842
(Superseded to 106-0842)

$

$

Not available

49

Exmark 84-8880-03

BRACKET-SPRING

$

$

Not available

50

Exmark 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

51

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

52

Exmark 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 4 left!

0

53

Exmark 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0
