Ryobi RY 30040 B - Ryobi String Trimmer, 30cc Engine Assembly Parts Lookup and Diagrams

Back to String Trimmers & Brush Cutters

Search within parts diagrams

All Diagrams (3) Engine Assembly Lower Boom Assembly Upper Boom/Handle Assembly

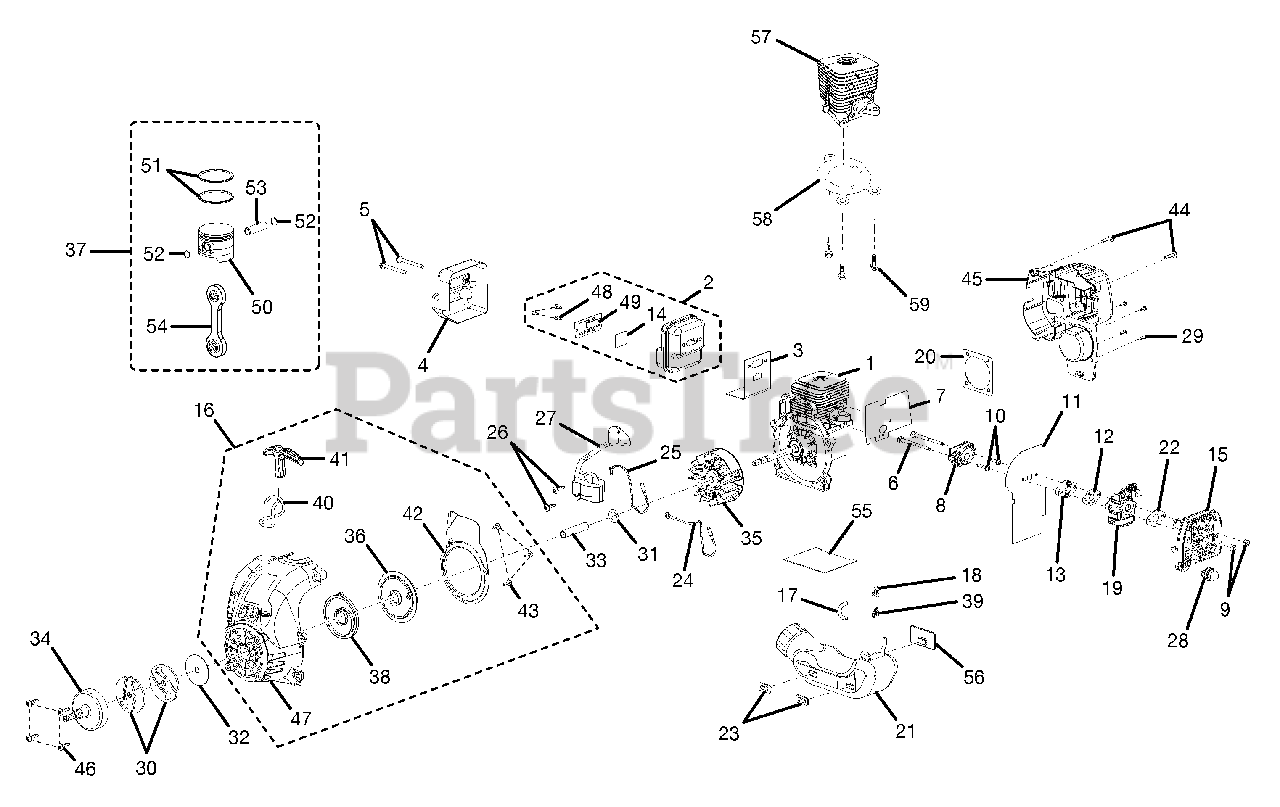

Engine Assembly Parts

Homelite 985873001

SHORT BLOCK ASSEMBLY

Superseded toHomelite 984867001

Unavailable

Homelite 308092008

CATALYTIC MUFFLER ASSY- 2005 TRIMMERS

Superseded toHomelite 985869001

Unavailable

Homelite 984760001

MUFFLER GASKET

Superseded toHomelite 900994006

Unavailable

Homelite 984743001

HEAT SHIELD

Unavailable

Homelite 88083

SCREW TORX TRUSS HD SEMS

PURCHASED LOCALLY

Superseded toHomelite PS03999

Unavailable

Homelite 660346002

Carburetor Bolt

Unavailable

Homelite 985248001

Intake Gasket

Unavailable

Homelite 985430001

HEAT DAM

Unavailable

Homelite 81208

Hex Lock Nut, 10-24

PURCHASED LOCALLY

Unavailable

Homelite 093221

PAN HEAD SEMS SCREW

PURCHASED LOCALLY

Superseded toHomelite 660662001

Unavailable

Homelite 984834001

Carburetor Gasket

Usually ships in 3 - 7 days

$1.49

Homelite 9071103

Carburetor Gasket, Non-Strato

Unavailable

Homelite 984738001

SPACER

Unavailable

Homelite 984753001

SCREEN

Usually ships in 3 - 7 days

$3.49

Homelite 985530002

Air Filter Base

Unavailable

Homelite 985544001

COMPLETE STARTER ASSEMBLY (SVC/RP)

(INC. KEY NOS. 36,38,40-43, AND 47)

Unavailable

Homelite 0143908

Rubber Tubing, 50.80mm 2.00"

Usually ships in 3 - 7 days

$2.99

Homelite 6970001

Clip

In stock, only 2 left!

$2.49

Homelite 985893001

Carburetor Assembly, WYC-4 Walbro Rotary Valve

Unavailable

Homelite 06443A

GASKET C/C COVER

Superseded toHomelite 900954001

Unavailable

Homelite 308181003

Fuel Tank and Cap Assembly

Unavailable

Homelite 984747001

Gasket

Usually ships in 3 - 7 days

$1.49

Homelite 98792

Bumper

Unavailable

Homelite A06964

LEAD

Unavailable

Homelite A06963

ELECTRICAL LEAD

Usually ships in 3 - 7 days

$4.49

Homelite 82540

SCREW THD FORMING

PURCHASED LOCALLY

Usually ships in 3 - 7 days

$2.49

Homelite 850080001

Ignition Module, Walbro with 3-Se

Unavailable

Homelite 3078001

Primer Assembly

Superseded toHomelite 01183

Unavailable

Homelite 984812001

10-24X.75 PAN HD TORX SEMS W/LOCKWASHER

PURCHASED LOCALLY

Usually ships in 3 - 7 days

$1.49

Homelite 00242

CLUTCH(ST185&ST385)

Unavailable

Homelite PS05268

Washer

In stock, only 2 left!

$2.49

Homelite 98929A

WASHER

Superseded toHomelite 638090001

In stock, only 4 left!

$2.49

Homelite PS05267

SPACER

Unavailable

Homelite PA01613

Drum and Connector

Superseded toHomelite 308177001

Unavailable

Homelite 986153001

ROTOR W/PAWLS

Superseded toHomelite 300952002

Unavailable

Homelite 308374001

Pulley Assembly

Superseded toHomelite 308386001

Unavailable

Homelite 985871001

PISTON ASSY- STEEL RINGS

(INCL. KEY NO.50-54)

Superseded toHomelite 985902001

Unavailable

Homelite A98773A

SPRING & CONTAINER

Superseded toHomelite 638033001

In stock, only 3 left!

$6.49

Homelite 6969901

Clip

Usually ships in 3 - 7 days

$2.49

Homelite 9789902

STARTER ROPE

Superseded toHomelite 900849002

In stock, only 2 left!

$2.49

Homelite PS06114

Ergo Grip, Ryobi Yellow

Unavailable

Homelite 984837001

BAFFLE/ISOLATOR

Unavailable

Homelite 82543

SCREW, THREAD FORM

PURCHASED LOCALLY

Unavailable

Homelite 82537

Screw, T.H.10-14X.875 Thd F

PURCHASED LOCALLY

Unavailable

Homelite 984829001

HOUSING, REAR

Unavailable

Homelite 82538

Screw, St 155

In stock, only 2 left!

$2.49

Homelite PA01641

STARTER HSG & EYELET MASS

Unavailable

Homelite 984759001

SCREW (6-20 x 1/4 in. PAN HD.)

PURCHASED LOCALLY

Unavailable

Homelite 985596001

OUTLET TUBE

Unavailable

Homelite 985872001

PISTON ASSY- STEEL RINGS

Unavailable

Homelite 03179

PISTON RING 30CC

Superseded toHomelite 690161005

Unavailable

Homelite 65261

RING, RETAINING TBO

Unavailable

Homelite 00238A

PIN, PISTON

Unavailable

Homelite PA00190

CONNECTING ROD ASSY

Unavailable

Homelite 900999002

Insulator Gasket

Unavailable

Homelite 985767001

BIG BUMPER

Superseded toHomelite 570549001

Unavailable

Homelite 985524002

30cc CYLINDER

Superseded toHomelite 640841008

Unavailable

Homelite PS02807

SCREW 12-24X.660 PAN TORX

PURCHASED LOCALLY

In Stock, Qty 6

$2.49

Homelite 985259001

CYL. GASKET(PKG)

Superseded toHomelite 900953001

Unavailable
