Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 440000 - 509999) (2004) Hood And Bag Assembly Parts Diagram

Ultra Vac Bagger for LHP Mower

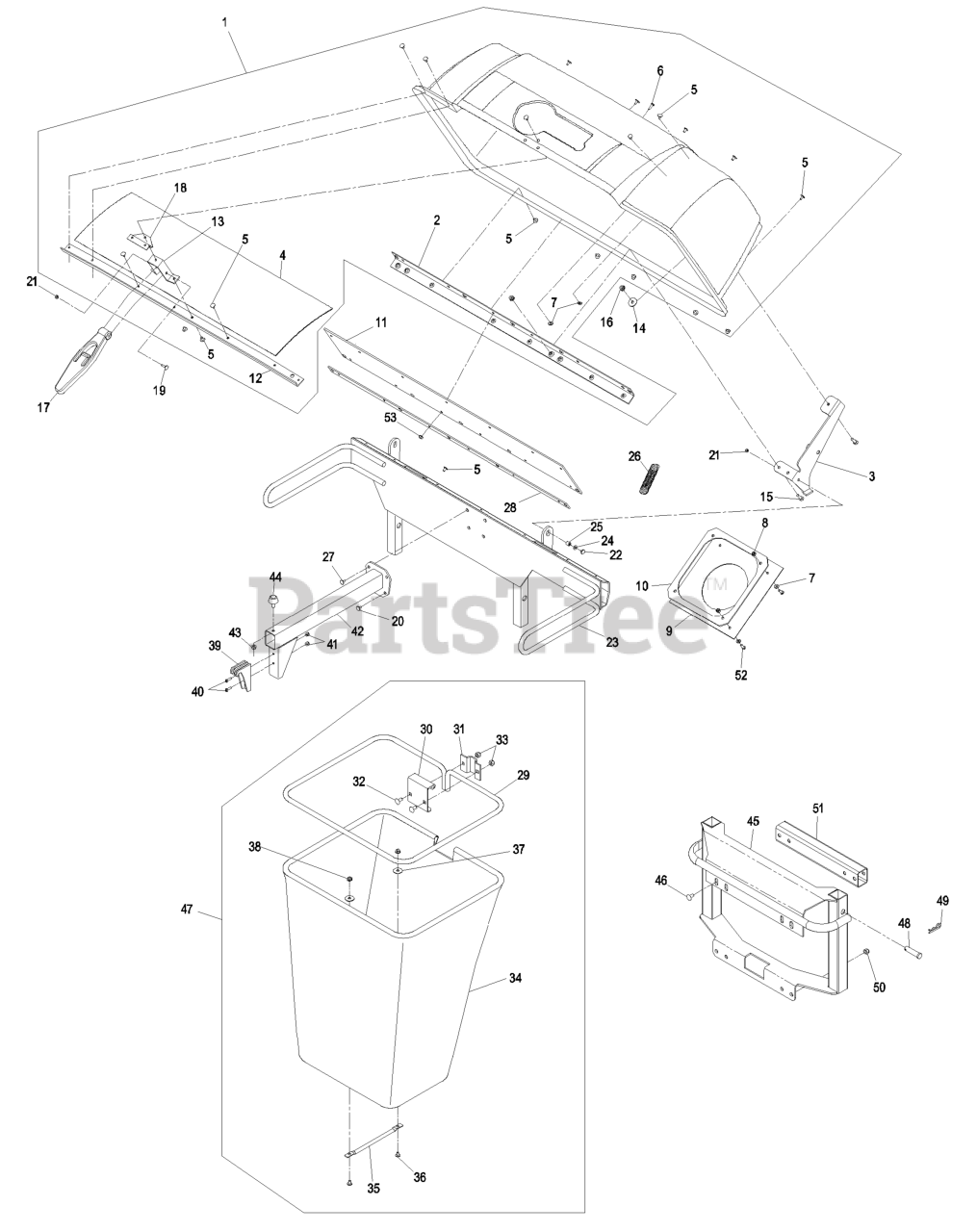

Hood And Bag Assembly Parts Diagram

  • Title
1

Exmark 1-654597

ASM, HOOD

Note: Includes items 2,4,7,12,13,18 riveted together and Decal.

$684.99

$

Usually ships in 3-6 days

0

2

Exmark 1-653397-03

STIFFENER-BAGGER, TOP

$80.99

$

Usually ships in 3-6 days

0

3

Exmark 1-652395-03

HINGE ASM

$94.99

$

Usually ships in 3-6 days

0

4

Exmark 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 4 left!

0

5

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 6

0

7

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 3 left!

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 2 left!

0

10

Exmark 1-653598-03

CLAMP-SEAL

$79.99

$

Usually ships in 3-6 days

0

11

$84.99

$

Usually ships in 3-6 days

0

12

Exmark 1-653400-03

SUPPORT-SCREEN

$85.99

$

Usually ships in 3-6 days

0

13

Exmark 1-653519

ANCHOR-LATCH

$86.99

$

Usually ships in 3-6 days

0

14

$5.49

$

In Stock, Qty 5

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

$0.99

$

In Stock, Qty 20+

0

17

$78.99

$

In Stock, Qty 12

0

18

Exmark 1-653535

REINFORCEMENT-LATCH

$47.99

$

Usually ships in 3-6 days

0

19

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-4738-03

BAGGER UPRIGHT ASM

$707.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

25

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-653544

SPRING-EXTENSION

$7.99

$

In Stock, Qty 5

0

27

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

28

Exmark 1-653528-03

PLATE-BACKING

$66.99

$

Usually ships in 3-6 days

0

29

Exmark 1-653529-03

FRAME-BAG

$117.99

$

In Stock, only 2 left!

0

30

Exmark 114973-03

HANGER-BAG

$25.99

$

In Stock, Qty 7

0

31

$14.99

$

In Stock, only 2 left!

0

32

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-654389

116-3518
(Superseded to 116-3518)

$111.99

$

In Stock, Qty 6

0

35

Exmark 1-653566

HANDLE-BAG

$12.99

$

In Stock, Qty 6

0

36

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 17

0

37

$5.49

$

In Stock, Qty 5

0

38

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

$36.99

$

In Stock, Qty 14

0

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

41

$0.99

$

In Stock, Qty 15

0

42

Exmark 103-5124-03

SUPPORT-BAG

$161.99

$

Usually ships in 3-6 days

0

43

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 1-652308-03

BAGGER MOUNT ASM

$508.99

$

In Stock, only 1 left!

0

46

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

Exmark 322-12

SCREW-HH

Note: Used in Adapter Kit 103-0328 for Lazer HP model LHP4818KC below Serial Number 176621 only.

$1.99

$

In Stock, Qty 14

0

47

Exmark 1-654390

116-3519
(Superseded to 116-3519)

$261.99

$

Usually ships in 3-6 days

0

48

Exmark 1-808289

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

49

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

50

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-0325-03

TUBE,SPACER

Note: Used in Adapter Kit 103-0328 for Lazer HP model LHP4818KC below Serial Number 176621 only.

$

$

Not available

52

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

53

Exmark 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0
