YT 2448 F (960430293-00) - RedMax 48" Yard Tractor, 24hp (2018-10) ENGINE Parts Diagram

48" Yard Tractor, 24hp

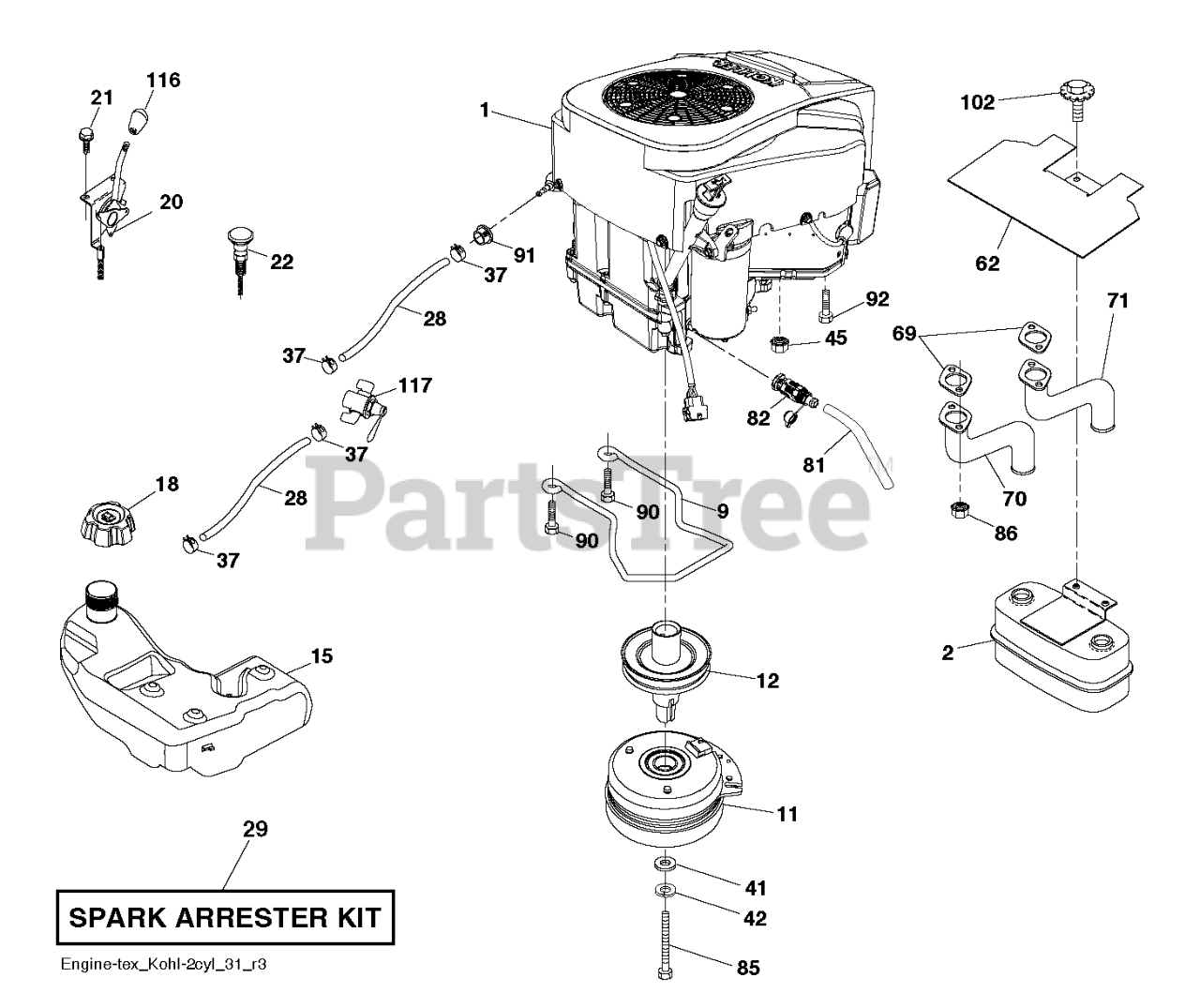

ENGINE Parts Diagram

  • Title

1

RedMax 000000000

Note: Engine Kohl Model No. KT75-3011 (585453201)

$

$

Not available

2

RedMax 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET

$44.99

$

Usually ships in 3-10 days

0

9

RedMax 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$7.49

$

In Stock, Qty 9

0

11

RedMax 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

In Stock, only 1 left!

0

12

RedMax 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$30.99

$

Usually ships in 3-10 days

0

15

RedMax 532438024

Tanks

$

$

Not available

18

RedMax 585124802

CAP ASSY FUEL 3" BLACK

$18.99

$

In Stock, only 1 left!

0

20

RedMax 587631703

THROTTLE.KOHL.PRO.#88PAD_46"

$31.99

$

Usually ships in 3-10 days

0

21

RedMax 532438562

SCREW.#10X.750
(Superseded to 583533301)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, Qty 7

0

28

RedMax 587044864

HOSE 1/4" LOW PERMEATION FUEL

$18.99

$

Usually ships in 3-10 days

0

29

RedMax 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

RedMax 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

RedMax 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 20+

0

45

RedMax 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

RedMax 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

RedMax 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

70

RedMax 583954501

PIPE.EXHAUST.LH.CV18/20

$17.99

$

In Stock, Qty 10

0

71

RedMax 583954801

PIPE.EXHAUST.RH.CV18/20
(Superseded to 532146700)

$17.99

$

In Stock, Qty 9

0

81

RedMax 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 19

0

82

RedMax 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 16

0

85

RedMax 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$4.99

$

Usually ships in 3-10 days

0

86

RedMax 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0

90

RedMax 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

91

RedMax 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0

92

RedMax 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

102

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

116

RedMax 539132624

KNOB - SHIFT

$7.49

$

In Stock, Qty 12

0

117

RedMax 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 1 left!

0
