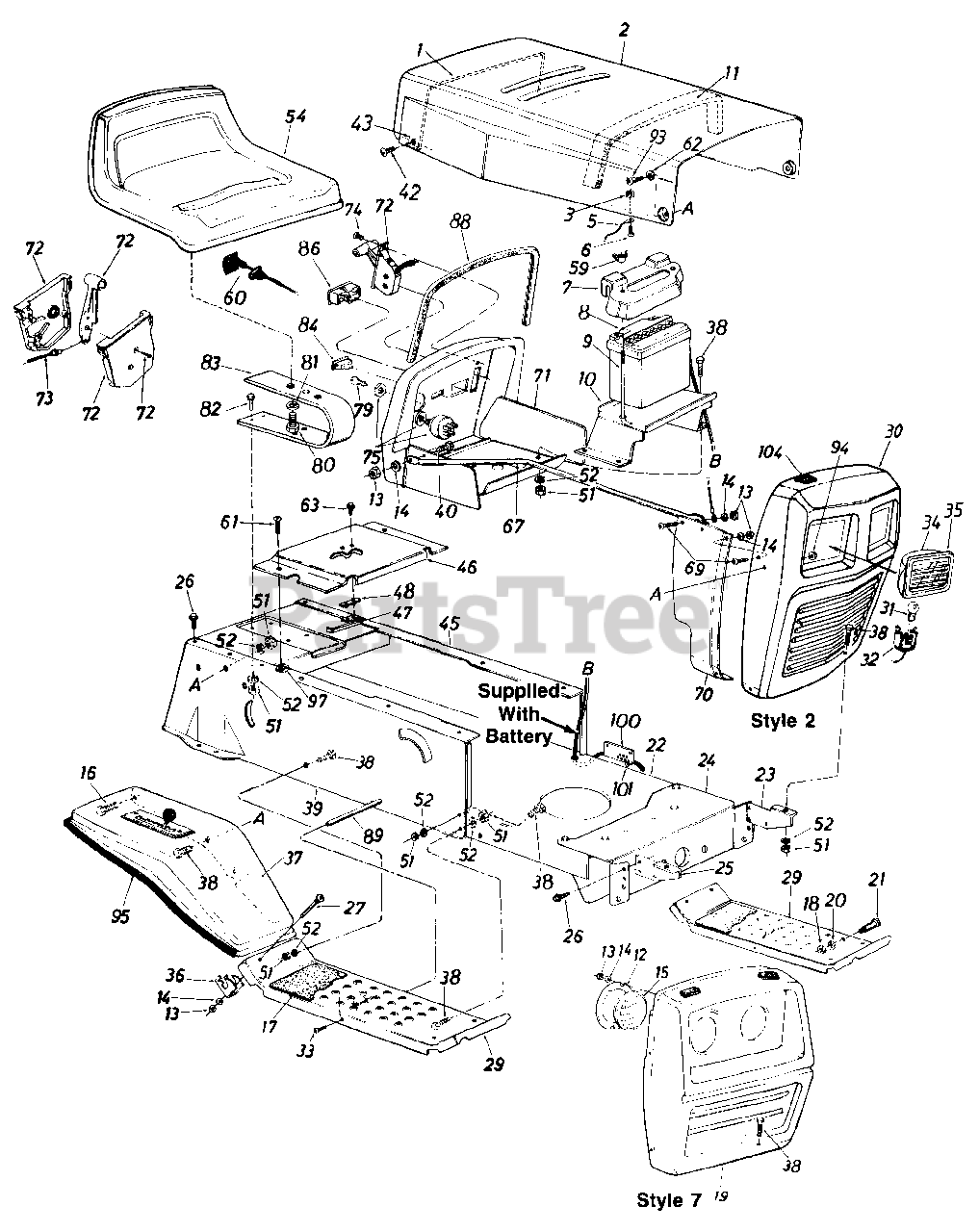

1052A (137-582-101) - Grass Handler Lawn Tractor (1987) (J.C. Penney)

Lawn Tractor

1052A (137-582-101) - Grass Handler Lawn Tractor (1987) (J.C. Penney) > Parts Diagrams (2) > Style 2), (577, 587, 667, 677, 687, 697

  • Title
732-0559

1

Hood Spring

Part# 732-0559

OEM Warranty Repair Part for MTD

Not available

732-0477

Hood Spring [Used with Grille Ref No. 19

Part# 732-0477

Note: (Style 7)]

OEM Warranty Repair Part for MTD

Not available

16207

2

Hood

Part# 16207

OEM Warranty Repair Part for MTD

Currently unavailable

712-0272

3

Hex Sems Nut #10-24 Thd.

Part# 712-0272

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.63

726-0154

Push Mount Tie

Part# 726-0154 (Superseded to 926-0154)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.08

723-0302

5

Hood Stop 7" Lg.

Part# 723-0302

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $8.24

710-0473

6

Truss Hd. Scr. #10-24 x 1/2"

Part# 710-0473

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

731-0707

7

Battery Cover

Part# 731-0707

OEM Warranty Repair Part for MTD

Not available

725-0453

8

12 Volt Battery

Part# 725-0453

OEM Warranty Repair Part for MTD

Not available

711-0222

9

Battery Hold Down Rod

Part# 711-0222 (Superseded to 911-0222A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.31

12747

10

Battery Bracket

Part# 12747

OEM Warranty Repair Part for MTD

Not available

722-0138

11

PVC Foam-Strip

Part# 722-0138

OEM Warranty Repair Part for MTD

Not available

09960

12

Headlight Retainer [Used with Grille Ref No. 19

Part# 09960

Note: (Style 7)]

OEM Warranty Repair Part for MTD

Not available

712-0287

13

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

14

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

725-0222

15

Headlight [Used with Grille Ref No. 19

Part# 725-0222 (Superseded to 925-0222)

Note: (Style 7)]

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.07

710-0653

16

Hex Wash. Hd. Tap Scr. 1/4 x 3/8" Lg.

Part# 710-0653

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

723-0360

17

Foot Pad

Part# 723-0360

OEM Warranty Repair Part for MTD

Not available

712-0798

18

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

14781

19

Grille

Part# 14781

Note: (Style 7)

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available GRILLE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

CUB BEIGE (0499)

No Longer Available GRILLE

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available GRILLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

736-0169

20

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

738-0145

21

Shld. Bolt .50" Dia. x .84

Part# 738-0145 (Superseded to 938-0145)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

14606

22

Lower Frame

Part# 14606

OEM Warranty Repair Part for MTD

Currently unavailable

16643

Not available

13863

Not available

14619

24

Front Pivot Brkt.

Part# 14619

OEM Warranty Repair Part for MTD

Currently unavailable

16644

Not available

13862

Not available

710-0726

26

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-0495

27

Carr. Bolt 1/4-20 x 2.00" Lg.

Part# 710-0495

OEM Warranty Repair Part for MTD

Not available

14604

29

Running Board

Part# 14604

Note: (R.H. & L.H.)

OEM Warranty Repair Part for MTD

Currently unavailable

17025

30

Grille

Part# 17025

Note: (Style 2)

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available GRILLE

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

CUB BEIGE (0499)

No Longer Available GRILLE

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available GRILLE

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available GRILLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

CO-OP GREEN (0640)

No Longer Available GRILLE

Part# CO-OP GREEN (0640)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available GRILLE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

No Longer Available GRILLE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

725-0963

31

Lamp

Part# 725-0963 (Superseded to 925-0963)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.94

725-1058

32

Lamp Socket

Part# 725-1058 (Superseded to 925-1058A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.58

710-0323

33

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

731-0705

34

Headlight Housing

Part# 731-0705 (Superseded to 931-0705)

OEM Warranty Repair Part for MTD

Not available

731-0706

35

Lens

Part# 731-0706 (Superseded to 931-0706)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.07

14671

36

Fender Clamp

Part# 14671

OEM Warranty Repair Part for MTD

Not available

16197

37

Fender

Part# 16197

Note: (R.H .) -Used w/Side Discharge Deck

OEM Warranty Repair Part for MTD

Currently unavailable

14666

Fender

Part# 14666

Note: (L.H.) -Used w/Side Discharge Deck

OEM Warranty Repair Part for MTD

Variations

SILVER FLAKE (0629)

No Longer Available FENDER

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

16198

Fender

Part# 16198

Note: (R.H.) -Used w/Rear Discharge Deck

OEM Warranty Repair Part for MTD

Not available

15350

Fender

Part# 15350

Note: (L.H.) -Used w/Rear Discharge Deck

OEM Warranty Repair Part for MTD

Variations

MTD/TROY-BILT RED (0638)

No Longer Available FENDER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

710-0118

38

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

14602

39

R.H. Side Frame

Part# 14602 (Superseded to 14602G-0637)

OEM Warranty Repair Part for MTD

Not available

710-0258

40

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.66

722-0157

Foam Strip

Part# 722-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.84

710-0697

42

Self-Tap Scr. .5" Lg.

Part# 710-0697

OEM Warranty Repair Part for MTD

Not available

731-0895

43

Hood Spring Retainer

Part# 731-0895

OEM Warranty Repair Part for MTD

Not available

14603

45

L.H. Side Frame

Part# 14603

OEM Warranty Repair Part for MTD

Not available

16433

46

Shift Cover

Part# 16433

OEM Warranty Repair Part for MTD

Currently unavailable

725-0759

47

Reverse Safety Switch

Part# 725-0759 (Superseded to 753-0579)

OEM Warranty Repair Part for MTD

Not available

726-0222

48

Insulator Nut Plate

Part# 726-0222 (Superseded to 926-0320)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

712-0267

51

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

52

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

757-0318

54

Seat Ass'y.

Part# 757-0318

OEM Warranty Repair Part for MTD

Not available

712-0113

59

Wing Nut 1/4-20 Thd.-Plastic

Part# 712-0113 (Superseded to 912-0113)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

746-0613

60

Choke Control 44 on Lg.

Part# 746-0613 (Superseded to 946-0613A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.81

710-0351

61

Truss Mach. Tap Scr. #10 x .50" Lg.

Part# 710-0351

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0413

62

Washer .39" I.D. x .62" O.D.

Part# 736-0413

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.45

710-0227

63

Hex Wash. Hd. AB-Tap Scr. #8 x .50

Part# 710-0227

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.85

749-0716

67

Grille Support Rod-R.H.

Part# 749-0716

OEM Warranty Repair Part for MTD

Not available

749-0674

Grille Support Rod-R.H.

Part# 749-0674

OEM Warranty Repair Part for MTD

Currently unavailable

749-0717

Grille Support Rod-L.H.

Part# 749-0717

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available ROD-GRILLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

749-0673

Grille Support Rod-L.H.

Part# 749-0673

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available ROD-GRILLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0255

69

Truss Hd. Scr. 1/4-20 x .75" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

16622

70

R.H.-Grille Side Panel

Part# 16622

Note: [Used with Grille Ref No. 30

OEM Warranty Repair Part for MTD

Not available

14748

R.H. Grille Side Panel

Part# 14748

Note: [Used with Grille Ref No. 19

OEM Warranty Repair Part for MTD

Currently unavailable

16621

L.H. Grille Side Panel

Part# 16621

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Not available

14749

L.H. Grille Side Panel

Part# 14749

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Currently unavailable

16184

71

Dash Panel Ass'y.

Part# 16184

OEM Warranty Repair Part for MTD

Currently unavailable

831-0823

72

Throttle Control Box Ass'y.

Part# 831-0823 (Superseded to 831-0823A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.59

746-0634

73

Throttle Control Wire-35"

Part# 746-0634 (Superseded to 946-0634)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.58

710-0779

74

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

Part# 710-0779 (Superseded to 710-0779A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.84

725-0267

75

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.44

725-0201

79

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.71

710-0865

80

Hex Bolt 1/2-13 x 1.00" Lg. (Grade 5)

Part# 710-0865

OEM Warranty Repair Part for MTD

Not available

736-0921

81

L-Wash. 1/2" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0376

82

Hex Bolt 5/16-18 x 1.0"

Part# 710-0376

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

732-0458

83

Seat Spring 5.5" High

Part# 732-0458

OEM Warranty Repair Part for MTD

Not available

725-0634

84

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.81

725-0925

86

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.19

731-0511

88

Molding Strip 27" Lg.

Part# 731-0511

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.61

738-0526

89

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for MTD

Not available

738-0724

93

Shld. Bolt .375 Dia. x .125

Part# 738-0724 (Superseded to 938-0952A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.57

712-0380

94

L-Nut 1/4-28 Thd.

Part# 712-0380

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.60

731-0511

95

Trim Strip 31.0" Lg.

Part# 731-0511

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.61

726-0139

97

Speed Nut #10Z

Part# 726-0139

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.40

16371

100

Brake Cable Bracket

Part# 16371

OEM Warranty Repair Part for MTD

Currently unavailable

726-0197

101

Cable Tie

Part# 726-0197

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.39

722-0157

104

Foam Strip 3/8 x 1-1/8 x 1-1/2

Part# 722-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.84
