3414 H (990980) - Simplicity Baron Lawn Tractor, 14hp CLUTCH AND BRAKE GROUP Parts Diagram

Baron Lawn Tractor, 14hp

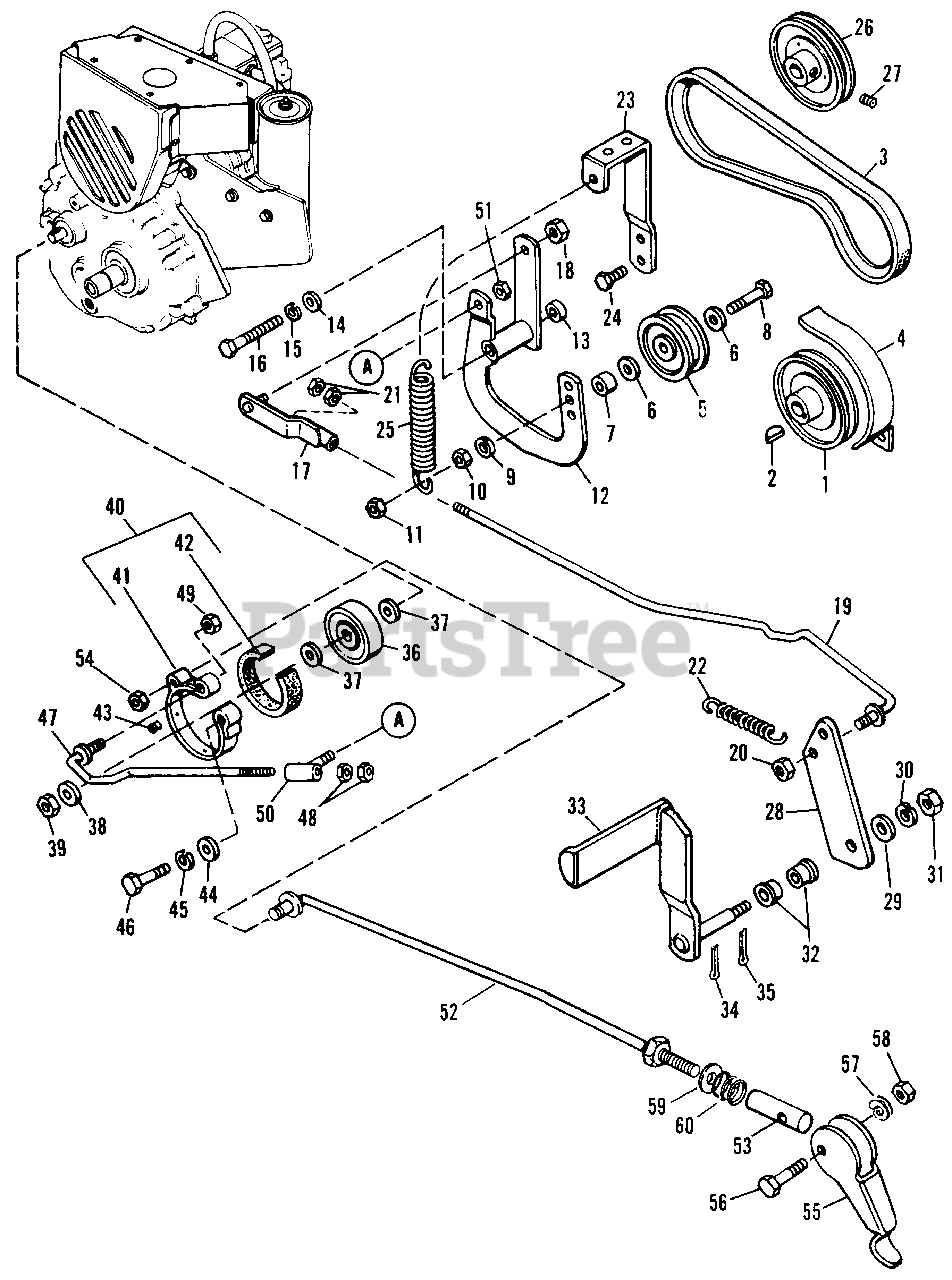

CLUTCH AND BRAKE GROUP Parts Diagram

  • Title

1

Simplicity 2157121SM

Driver Pulley

$55.99

$

Usually ships in 2-12 days

0

2

Simplicity 2725003

Woodruff Key, 3/16" x 3/4"

$

$

Not available

3

Simplicity 2166172SM

BELT, A-Sect, 47.30

$30.99

$

Usually ships in 2-12 days

0

4

Simplicity 2166122SM

Belt Guard Assy.

$

$

Not available

5

Simplicity 2164268

Idler Pulley

$

$

Not available

6

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

7

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, Qty 13

0

8

Simplicity 2705003

Hex Cap Screw, 3/8"-16 x 2-1/4"

$

$

Not available

9

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

10

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

11

Simplicity 2717524

Jam Hex Lock Nut, 3/8"-16

$

$

Not available

12

Simplicity 2166126SM

Idler Lever Assy.

$

$

Not available

13

Simplicity 2166130SM

Spacer

$14.99

$

Usually ships in 2-12 days

0

14

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

15

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

16

Simplicity 2715063

Hex Cap Screw, 7/16"-14 x 3-3/4"

$

$

Not available

17

Simplicity 2166157SM

Rod Guide Assembly
(Superseded to 2166157ASM)

$53.99

$

Usually ships in 2-12 days

0

18

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

19

Simplicity 174104

Clutch Rod Assy.

$

$

Not available

20

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

21

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

22

Simplicity 2121037SM

Front Tension Spring

$

$

Not available

23

Simplicity 2166156

Spring Bracket, 1/4" x 1 x 11-1/4"

$

$

Not available

24

Simplicity 2714027

Hex Hd. Cap Screw, 3/8" x 3/4"

$

$

Not available

25

Simplicity 2154369SM

Idler Pulley Spring

$17.99

$

In Stock, only 1 left!

0

26

Simplicity 2166173SM

Driven Pulley
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

27

Simplicity 2713503

Cup Pt. Socket Hd. Set Screw, 5/16"-18 x 5/16"

$

$

Not available

28

Simplicity 2157300SM

Foot Pedal Arm, 1/4" x 1-3/4" x 5-7/8"

$13.99

$

Usually ships in 2-12 days

0

29

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

30

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

31

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

32

Simplicity 2108419

Bushing

$

$

Not available

33

Simplicity 2171178

Foot Pedal Assy.

$

$

Not available

34

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

35

Simplicity 2722009

Cotter Pin, 1/8" x 3/4"

$

$

Not available

36

Simplicity 2166176SM

Brake Drum

$14.99

$

Usually ships in 2-12 days

0

37

Simplicity 2158196SM

Washer

$5.49

$

Usually ships in 2-12 days

0

38

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

39

Simplicity 2717519

Lock Nut, 7/16"-14

$

$

Not available

40

Simplicity 2172234

Brake Band & Lining Assy.

$

$

Not available

41

Simplicity 1679354SM

Brake Band

$57.99

$

Usually ships in 2-12 days

0

42

Simplicity 2172237

Brake Lining

$

$

Not available

43

Simplicity 2724502

Rivet No. 7 x 1/4"

$

$

Not available

44

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

45

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

46

Simplicity 2705010

Hex Cap Screw, 3/8"-16 x 1-3/4"

$

$

Not available

47

Simplicity 172460

Brake Rod Assy.

$

$

Not available

48

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

49

Simplicity 2717505

Full Hex Lock Nut, 3/8"-16

$

$

Not available

50

Simplicity 2166119SM

Rod Guide Assy.

$51.99

$

In Stock, only 1 left!

0

51

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18 N.C.

$

$

Not available

52

Simplicity 2172461

Parking Brake Rod Assy.

$

$

Not available

53

Simplicity 2171994SM

Rod End

$15.99

$

In Stock, only 1 left!

0

54

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

55

Simplicity 2172108SM

Parking Brake Lever

$

$

Not available

56

Simplicity 2715062

Hex Cap Screw, 1/4"-20 x 1-1/4" Grade 8

$

$

Not available

57

Simplicity 721702

Double Lock Washer, 1/4"

$

$

Not available

58

Simplicity 2717509

Hex Nut, Full, Lock 1/4"-20

$

$

Not available

59

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

60

Simplicity 2121037SM

Spring

$

$

Not available
