Craftsman 580.328251 (8649-1) - Craftsman 5,000 Watt Portable Generator Carburetor No. 632255 Parts Lookup and Diagrams

Back to Generators

Search within parts diagrams

All Diagrams (11) Alternator Auxiliary Fuel Tank Carburetor No. 632255 Craftsman 4-Cycle Engine 143.756112 Dual Fuel Supply & Oil Make-Up Electric Start Schematic And Wiring Diagram Mounting Base Panel Rewind Starter No. 590479 Sheet Metal & Voltage Regulator Wiring Diagram & Schematic

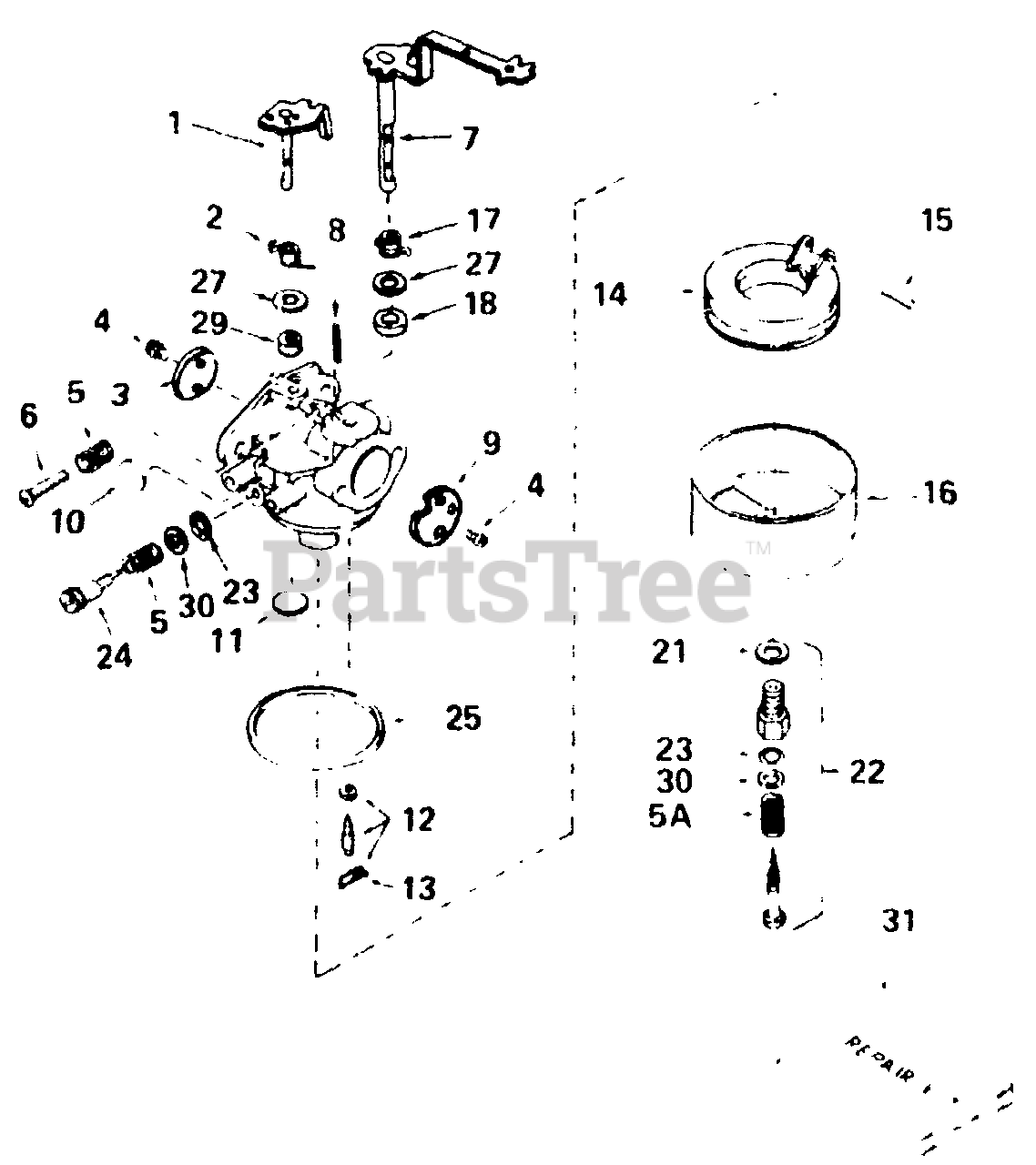

Carburetor No. 632255 Parts

Briggs & Stratton 632255

Carburetor

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632243

THROTTLE SHAFT AND LEVER ASSEMBLY

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632244

Spring, Throttle return

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632245

Shutter, Throttle

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 650506

Screw, Rd. washer hd., 4-40 x 3/16

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630766

Spring, Idle regulating screw

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 650417

Throttle Crack Screw/Idle Speed Screw

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632249

Shaft & Lever Assy., Choke

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630735

Spring, Choke positioning

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632248

Shutter, Choke

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630748

Welch Plug, Idle Mixture Well

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631027

Welch Plug, Atmospheric Vent.

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631021

Inlet Needle, Seat & Clip Assembly

(Incl. No. 13) and Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631022

Clip, Inlet needle

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632019

Float, Carburetor

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631024

Shaft, Float

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631867

Bowl, Float

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632043

Spring, Choke return

Before ordering call Generac for quantity required.

Usually ships in 3 - 12 days

$1.99

Briggs & Stratton 631183

Dust Seal (Throttle)

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 27110

U-BOLT, Exhaust Muffler - 4-5/8" Diameter

Before ordering call Generac for quantity required.

Superseded toBriggs & Stratton 7027110YP

Usually ships in 2 - 12 days

$12.99

Briggs & Stratton 632239

HIGH SPEED MIXTURE SCREW ASSY.

(Incl. Nos 5A, 21, 23 & 30). Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630740

"O" RING, HIGH SPEED MIXTURE SCREW

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630898

Screw, Idle adjustment

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631028

"O" Ring, Float Bowl-to-body

Included in Repair Kit, P/N 632240. Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631184

Dust Seal Washer (Choke)

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 631971

DUST SEAL (THROTTLE)

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630739

WASHER, HIGH SPEED MIXTURE SCREW

Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 632240

Repair Kit

(Includes items 10-12, 15, 16, 22, 24, & 25). Before ordering call Generac for quantity required.

Currently unavailable

Briggs & Stratton 630738

TENSION SPRING, HIGH SPEED MIXTURE SCREW

Before ordering call Generac for quantity required.

Currently unavailable
