629114x85A - Murray 29" Snow Thrower (2002) Engine Parts Diagram

29" Snow Thrower

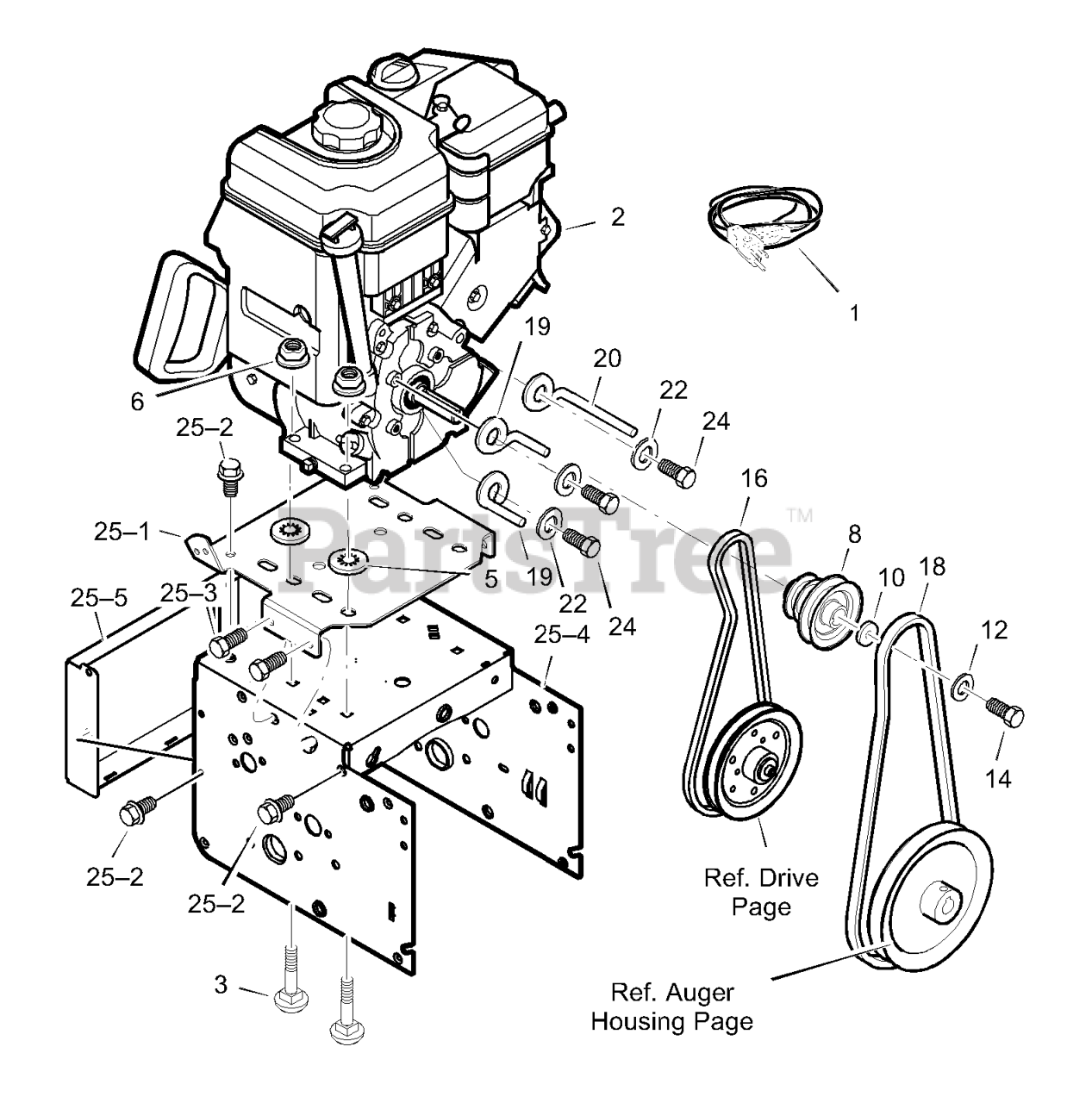

Engine Parts Diagram

  • Title

1

Murray 761332

CORD, STARTER
(Superseded to 761332MA)

$24.99

$

Usually ships in 2-12 days

0

2

ENGINE

$

$

Not available

--

Murray 695756

KEY, ENGINE
(Superseded to 794696)

$7.49

$

In Stock, Qty 7

0

3

Murray 002X97MA

BOLT, CARRIAGE
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

5

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

8

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, Qty 6

0

10

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

12

Murray 71063

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71015

SCREW

$

$

Not available

16

Murray 37X127MA

BELT, HYDRO DR

$23.99

$

Usually ships in 2-12 days

0

18

Murray 585416MA

BELT, V 4L 38.1

$22.99

$

In Stock, Qty 12

0

19

Murray 1501368

GUIDE, BELT -HYDRO
(Superseded to 1501368MA)

$35.99

$

Usually ships in 2-12 days

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

22

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

24

Murray 710097

SCREW

$10.99

$

In Stock, only 1 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E012

PLATE, ENGINE

$64.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, TAP
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

25-3

Murray 780055MA

SCREW, TAP
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

25-4

Murray 1501295E012

FRAME, MOTORBOX

$106.99

$

Usually ships in 2-12 days

0

25-5

Murray 1501333E012

PANEL, BACK - HY

$34.99

$

Usually ships in 2-12 days

0

--

Murray F-021047L

OWNER'S MANUAL

$

$

Currently unavailable
