White Outdoor R-10 (134B561B190) - White Outdoor 30" Rear-Engine Riding Mower (1994) Deck Lift Assembly Parts Lookup and Diagrams | PartsTree

Need guidance? Find by Model

Back to Riding Mowers

Search within parts diagrams

All Diagrams (7) Complete Assembly Deck & Drive Deck & Guard Assembly Deck Lift Assembly Steering Assembly Transaxle Wiring Diagram

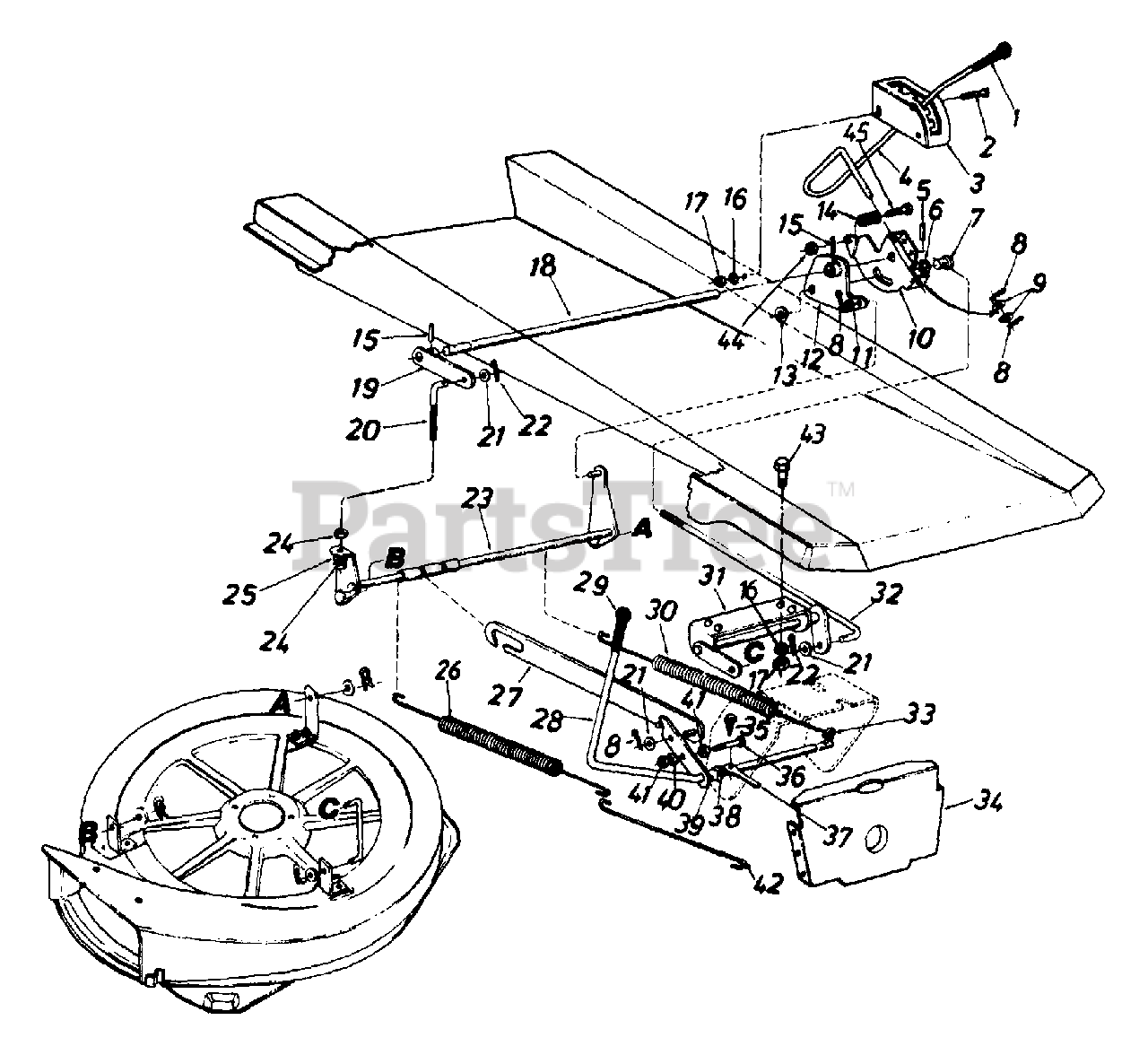

Deck Lift Assembly Parts

Grip

In stock, only 2 left!

$15.99

Truss Machines Screw, 5/16"-18 X .75

In stock, only 2 left!

$4.99

Deck Index Bracket

NLA

Unavailable

Deck Lift Handle

NLA

Unavailable

Spiral Spring Pin

Unavailable

Flat Washer, .640" X 1.24" X .06"

In stock, 20+ on hand

$4.99

FERRULE

Unavailable

Cotter Pin, 1/8 Dia

Superseded toMTD 714-0115

In Stock, Qty 13

$4.49

Flat Washer

Superseded toMTD 736-0160

Usually ships in 3 - 6 days

$4.49

Deck Lift Handle Retainer

NLA

Unavailable

Flat Washer, .406" X .875" X .059"

Superseded toMTD 736-0300

Usually ships in 3 - 6 days

$4.99

Deck Lift Brkt. Ass'y.-L.H.

NLA

Unavailable

Flat Washer, .635" X .93"

In stock, 20+ on hand

$4.49

Compression Spring .5" Dia. x .9" Lg.

NLA

Unavailable

Roll Pin

Superseded toMTD 715-0114

Unavailable

Lock Washer, .03125"

In stock, 20+ on hand

$4.99

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

Rear Hgt. Adj. Shaft

NLA

Unavailable

Deck Lift Brkt. Ass'y.-R.H.

NLA

Unavailable

Deck Adj. Scr. 3/8-16 Thd.

NLA

Unavailable

Flat Washer, .406" X .875" X .059"

Superseded toMTD 736-0300

Usually ships in 3 - 6 days

$4.99

Internal Cotter Pin

Superseded toMTD 714-0145

In Stock, Qty 13

$5.49

Deck Link Ass'y.-Rear

NLA

Currently unavailable

Hex Nut, 3/8-16

In stock, 20+ on hand

$4.49

Lock Washer, .375"

Superseded toMTD 736-0169

Unavailable

Extension Spring .73" O.D. x 13.84" Lg.

Unavailable

MTD 15644A-0637

Deck Drive Control Bracket

Unavailable

LEVER ASSY-BLADE E

Unavailable

Grip

In stock, only 2 left!

$15.99

Extension Spring .73" O.D. x 13.84" Lg.

Unavailable

Deck Lift Ass'y.-Front

NLA

Unavailable

Deck Lift Connecting Rod

Unavailable

Clevis Pin Special .250" Dia.

NLA

Unavailable

Pivot Bar Bracket

NLA

Unavailable

Hex TT-Tap Scr. #12 - 24 x .5" Lg.

NLA

Currently unavailable

Hex Capscrew, 5/16"-18 X 1.5"

Superseded toMTD 710-0805A

In Stock, Qty 11

$4.99

Switch Actuator

Unavailable

Flat Washer

Superseded toMTD 736-0160

Usually ships in 3 - 6 days

$4.49

Spacer .511" I.D. x .70" O.D. x .38" Lg.

NLA

Unavailable

Lock Washer, .03125"

In stock, 20+ on hand

$4.99

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

SPRING-HOOK

Unavailable

Hex Screw, .313" X .75"

In Stock, Qty 11

$4.49

Hex Lock Nut, 1/4-20

Superseded toMTD 712-0291

Unavailable

Hex Screw, 1/4-20 X 1.25

In Stock, Qty 8

$4.49
