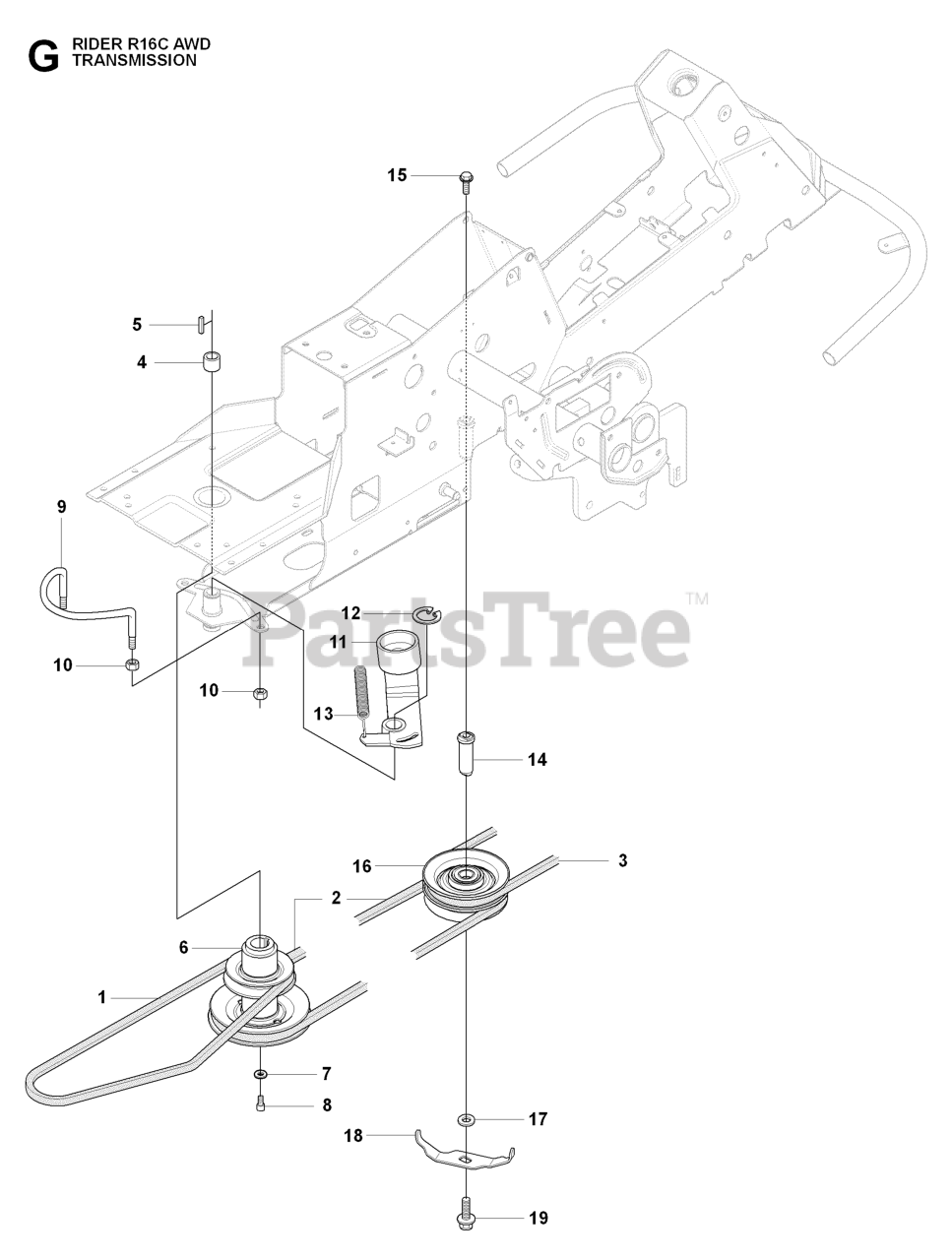

R 16 C AWD (966830301) - Husqvarna Swedish Riding Mower (2009-04) TRANSMISSION 4 Parts Diagram

Swedish Riding Mower

TRANSMISSION 4 Parts Diagram

  • Title

6

Husqvarna 535482401

PULLEY

$83.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589530401

BELT

$

$

Not available

19

Husqvarna 506570105

BOLT
(Superseded to 506597401)

$7.49

$

In Stock, Qty 5

0

18

Husqvarna 544405301

BELT GUIDE

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506665601

SPRING

$47.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589530001

BELT
(Superseded to 594977801)

$21.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506556002

SCREW

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 506555901

KEY

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506509201

SPACER

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 535482201

PULLEY

$74.99

$

In Stock, only 2 left!

0

10

Husqvarna 731232051

NUT
(Superseded to 731232001)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 535484401

TENSIONER

$71.99

$

In Stock, only 2 left!

0

9

Husqvarna 506664501

BELT GUIDE

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544426101

SHAFT
(Superseded to 581916401)

$27.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506675402

BOLT

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 735312600

RETAINING RING SGA 25

$3.99

$

In Stock, Qty 10

0

7

Husqvarna 506597501

WASHER

$

$

Not available

17

Husqvarna 506775701

WASHER

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589531201

BELT

$33.99

$

In Stock, Qty 7

0
