MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Deck Drive System Parts Diagram

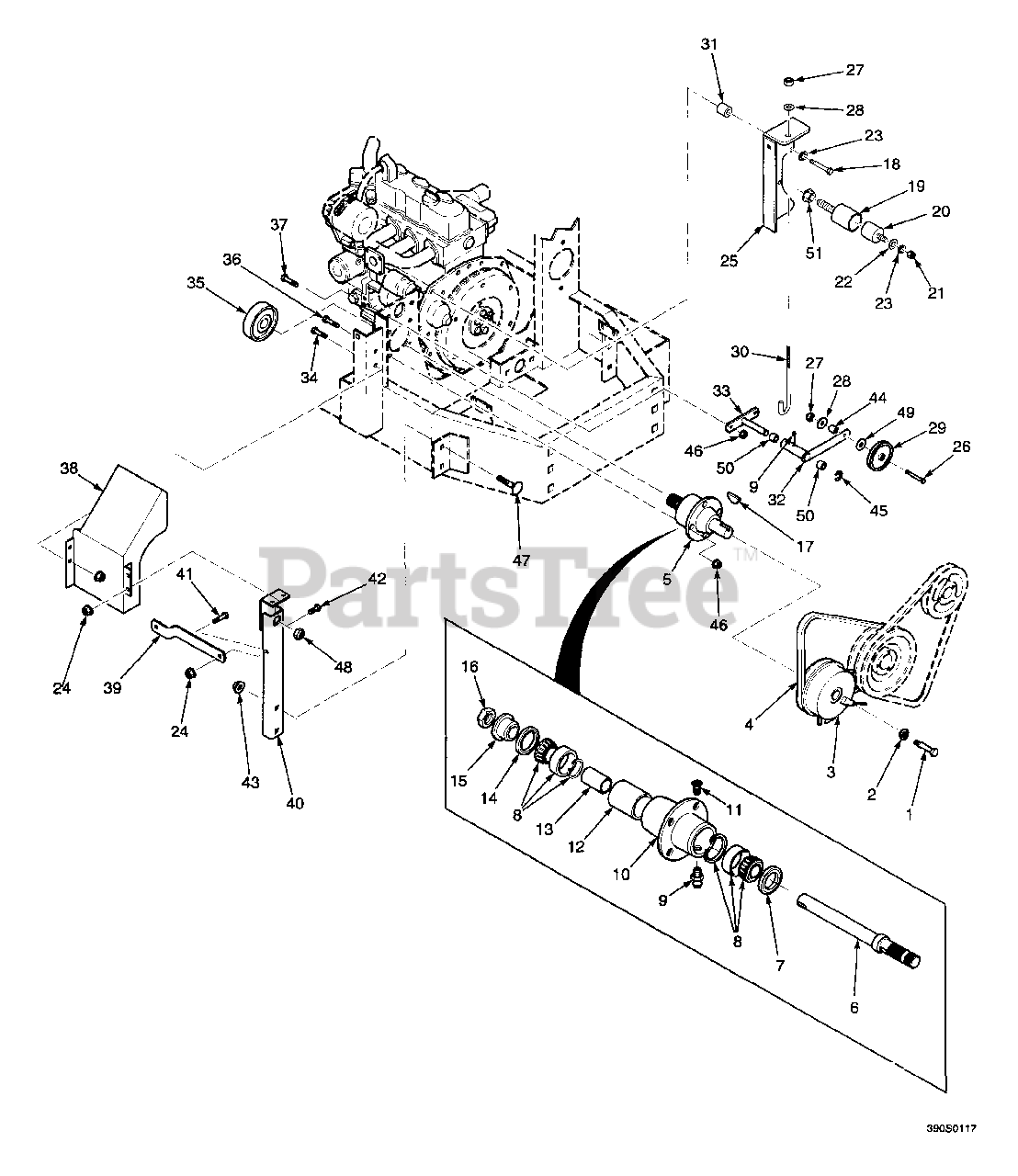

Magnum III 61" Three-Wheel Riding Mower

Deck Drive System Parts Diagram

  • Title

1

Scag 04001-101

Bolt, Hex Head, 7/16-20 x 2-1/2

$2.49

$

In Stock, Qty 5

0

2

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, Qty 14

0

3

Scag 481204

Clutch, Electric

$526.99

$

Usually ships in 2-12 days

0

4

Scag 481104

Belt, Deck Drive

$46.99

$

In Stock, only 1 left!

0

5

Scag 46827

Spindle, Deck Drive

Note: Includes 6-16

$505.99

$

Usually ships in 2-12 days

0

6

Scag 43321

Shaft, Deck Drive

$214.99

$

Usually ships in 2-12 days

0

7

Scag 481024

Seal, 2.00 O.D. 1-1/2 Bore

$4.99

$

In Stock, Qty 20+

0

8

Scag 481022

Roller Bearing

Note: Replace as a set only

$61.99

$

In Stock, Qty 11

0

9

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

10

Scag 43294

Housing, Spindle
(Superseded to 43644)

$60.99

$

Usually ships in 2-12 days

0

11

Scag 48677

Relief Fitting

$9.49

$

In Stock, only 1 left!

0

12

Scag 43296

Spacer, Outside

$8.49

$

In Stock, only 3 left!

0

13

Scag 43312

Spacer, Inside

$19.99

$

In Stock, only 1 left!

0

14

Scag 481025

Seal, 2.00 O.D. x 1-5/8 Bore

$4.99

$

In Stock, Qty 20+

0

15

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

16

Scag 481112

Nut, 1-1/16-18

$32.99

$

Usually ships in 2-12 days

0

17

Scag 04063-21

Key, #807 Woodruff, 1/4 x 7/8

$1.99

$

Usually ships in 2-12 days

0

18

Scag 04002-13

Bolt, Hex Head, M8-1.25 x 40

$

$

Currently unavailable

19

Scag 43428

Base, Anti-Rotation-Clutch

$46.99

$

Usually ships in 2-12 days

0

20

Scag 481469

Isolator, Rubber

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04020-03

Nut, Hex,5/16-18

$0.99

$

In Stock, only 3 left!

0

22

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 9

0

23

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

25

Scag 45873

Anchor Bracket, J-Bolt

$143.99

$

Usually ships in 2-12 days

0

26

Scag 04001-46

Bolt, Hex Head, 3/8-16 x 2-1/4

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 15

0

30

Scag 43028

Rod, J-Hook

$4.99

$

In Stock, only 2 left!

0

31

Scag 43336

Spacer

$9.99

$

Usually ships in 2-12 days

0

32

Scag 46871

Idler Arm, Clutch

$107.99

$

Usually ships in 2-12 days

0

33

Scag 45212

Bracket, Idler Pivot

$36.99

$

Usually ships in 2-12 days

0

34

Scag 04017-16

Serr. Fl. Hex Head Capscrew, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

35

Scag 43330

Hub, Brake

$90.99

$

Usually ships in 2-12 days

0

36

Scag 04001-10

Bolt, Hex Head, 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 20+

0

37

Scag 04017-19

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1-1/2

$1.49

$

Usually ships in 2-12 days

0

38

Scag 45792

Belt Guard, Electric Clutch

$

$

Not available

39

Scag 422018

Brace, Fan Support - LH

$11.99

$

Usually ships in 2-12 days

0

40

Scag 45712

Upright, Fan Support - LH

$103.99

$

Usually ships in 2-12 days

0

41

Scag 04017-27

Serr. Fl. Hex Head Capscrew, 3/8-16 x 1

$1.49

$

In Stock, Qty 20+

0

42

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 15

0

43

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

44

Scag 43282

Spacer, J Pull Rod

$7.99

$

Usually ships in 2-12 days

0

45

Scag 04050-02

Retaining Ring, 75 Ext

$0.99

$

In Stock, Qty 10

0

46

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

47

Scag 04003-19

Carriage Bolt, 1/2-13 x 1-1/4

$1.99

$

Usually ships in 2-12 days

0

48

Scag 04021-07

Lock Nut, Elastic Stop, 1/2-13

$0.99

$

In Stock, Qty 20+

0

49

Scag 04041-11

Flat Washer, 3/8 (.406 x 1.50 x .179)

$1.99

$

In Stock, Qty 20+

0

50

Scag 48100-05

Bushing, Oilite - .753 I.D.

$0.99

$

In Stock, Qty 18

0

51

Scag 04019-05

Nut, 7/16-14 Serr Flg

$0.99

$

In Stock, Qty 12

0
