425605x683A - Stanley 42" Lawn Tractor (2001)

42" Lawn Tractor

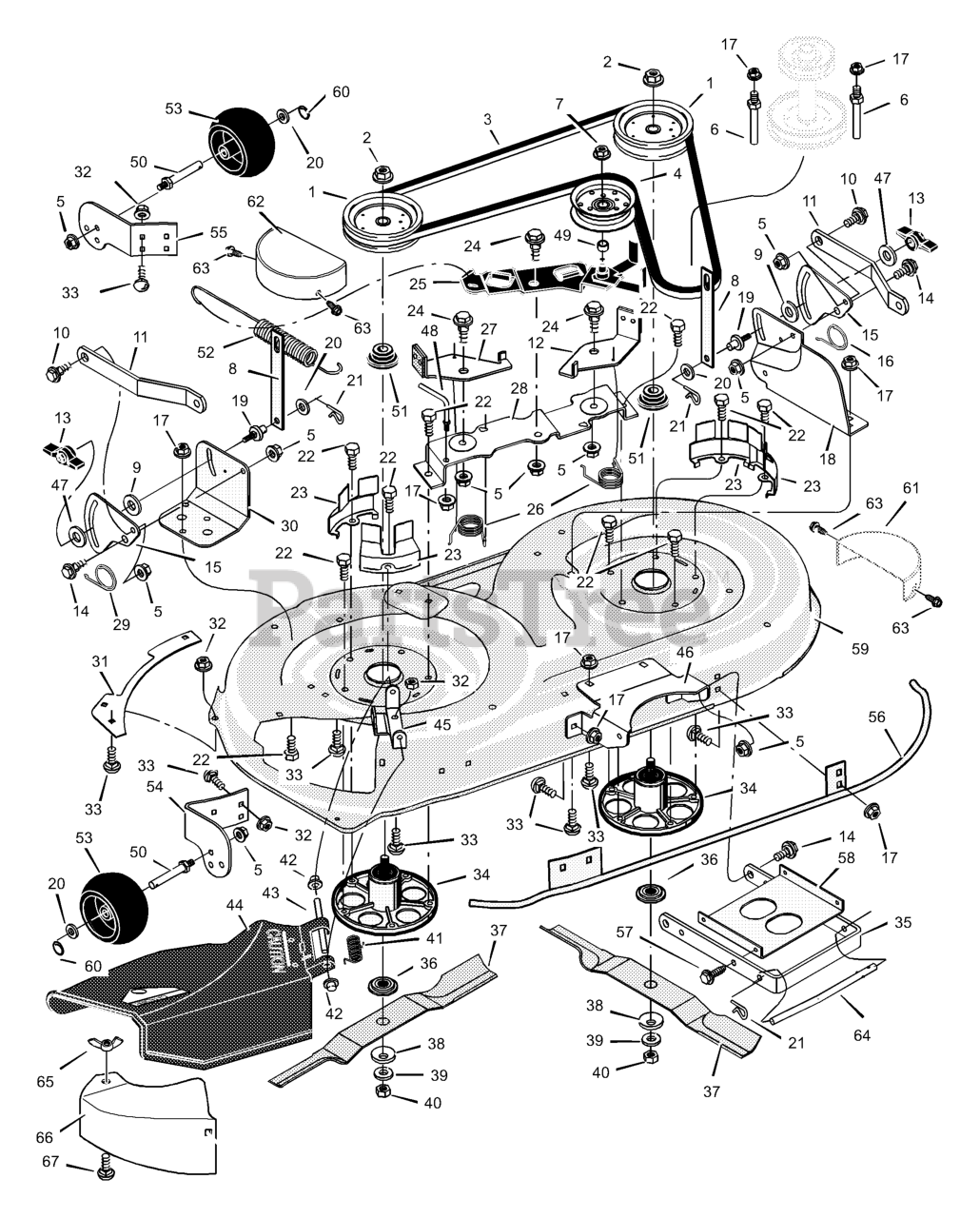

425605x683A - Stanley 42" Lawn Tractor (2001) > Parts Diagrams (10) > Mower Housing

  • Title
7769222MA

1

Pulley, Jackshaft

Part# 7769222MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $22.05

15X121

2

Nut, Hex

Part# 15X121

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.18

7769210

3

Belt, Mower Drive

Part# 7769210

OEM Warranty Repair Part for Murray

Not available

690387MA

4

Pulley, Idler

Part# 690387MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.97

015X84MA

5

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

094066MA

6

Guide, Belt

Part# 094066MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.57

015X98MA

7

Nut, Flange

Part# 015X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

690212E700

8

Link, Lift

Part# 690212E700

OEM Warranty Repair Part for Murray

Currently unavailable

094137MA

9

Pad, Friction

Part# 094137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.13

009X52MA

10

Bolt, Shoulder

Part# 009X52MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.78

094055E701MA

11

Bracket, Suspension

Part# 094055E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.86

094049E701MA

12

Pad Assembly, Left Brake

Part# 094049E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $25.03

095004MA

13

Knob

Part# 095004MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.26

009X51MA

14

Bolt, Shoulder

Part# 009X51MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

094128E700MA

15

Plate, Suspension

Part# 094128E700MA (Superseded to 094128E701MA)

OEM Warranty Repair Part for Murray

Not available

166X43MA

16

Spring

Part# 166X43MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

015X79MA

17

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

094192E700

18

Bracket, Suspension

Part# 094192E700

OEM Warranty Repair Part for Murray

Currently unavailable

095194

19

Pin, Hanger

Part# 095194 (Superseded to 095194MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.38

017X91MA

20

Washer

Part# 017X91MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.91

0031X4MA

21

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

0025X7MA

22

Bolt

Part# 0025X7MA (Superseded to 2828635SM)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

094051E701MA

23

Cover, Pulley

Part# 094051E701MA (Superseded to 7300859BMYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $19.37

009X39MA

24

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.43

690408E701MA

25

Arm, Idler

Part# 690408E701MA (Superseded to 7400245BMYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $153.88

166X41MA

26

Spring

Part# 166X41MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

094047E701MA

27

Pad Assembly, Right Brake

Part# 094047E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $36.40

094193E701MA

28

Bracket, Brake

Part# 094193E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $39.38

166X42MA

29

Spring

Part# 166X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

094191E700

30

Bracket, Suspension

Part# 094191E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $32.26

092426E701MA

31

Plate

Part# 092426E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.58

015X88MA

32

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

002X53MA

33

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.63

1001200MA

34

Mandrell Housing

Part# 1001200MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $66.15

690539

35

Bracket, Suspension

Part# 690539

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $279.07

7769213MA

36

Adapter, Blade

Part# 7769213MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $13.71

7769203

37

Blade

Part# 7769203

OEM Warranty Repair Part for Murray

Not available

17X166MA

38

Washer

Part# 17X166MA

Note: (Included with Ref. No. 36)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

17X165MA

39

Washer

Part# 17X165MA

Note: (Included with Ref. No. 36)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $13.01

15X100MA

40

Nut

Part# 15X100MA

Note: (Included with Ref. No. 36)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

0166X4MA

41

Spring

Part# 0166X4MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.49

028X23MA

42

Cap, Push On

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

094957  Z

43

Rod, Deflector

Part# 094957 Z

Not available

094707MA

44

Deflector Assembly

Part# 094707MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $64.05

094956E701MA

45

Bracket, Deflector Hinge

Part# 094956E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $15.98

094190E700

46

Bracket, Front Hanger

Part# 094190E700

OEM Warranty Repair Part for Murray

Not available

017X45MA

47

Washer

Part# 017X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

094781MA

48

Guide, Belt

Part# 094781MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $39.26

690369MA

49

Spacer

Part# 690369MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

094025MA

50

Bolt, Axle

Part# 094025MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.98

1001197MA

51

Spacer, Pulley

Part# 1001197MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.57

165X119MA

52

Spring, Extension

Part# 165X119MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

092265MA

53

Wheel, Gauge

Part# 092265MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $12.89

1001260E701MA

54

Bracket, Right Wheel

Part# 1001260E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.01

092423E700

55

Bracket, Left Wheel

Part# 092423E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001205E701

56

Reinforcement Assembly

Part# 1001205E701

OEM Warranty Repair Part for Murray

Currently unavailable

26X249MA

57

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Not available

094604E700

58

Stiffener

Part# 094604E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001209E701

59

Housing, Blade

Part# 1001209E701

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56)

OEM Warranty Repair Part for Murray

Currently unavailable

031X11MA

60

Ring, Locking

Part# 031X11MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

094668E701MA

61

GUARD, Pulley L.H.

Part# 094668E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.17

94669E701MA

62

GUARD, Belt R.H.

Part# 94669E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $35.76

26X263MA

63

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

094158  Z

64

Rod, Front Hanger

Part# 094158 Z

Not available

014X86MA

65

Wingnut

Part# 014X86MA (Superseded to 703141)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

095080E701MA

66

Plate, Mulch

Part# 095080E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $65.80

002X64MA

67

Bolt, Carriage

Part# 002X64MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92
