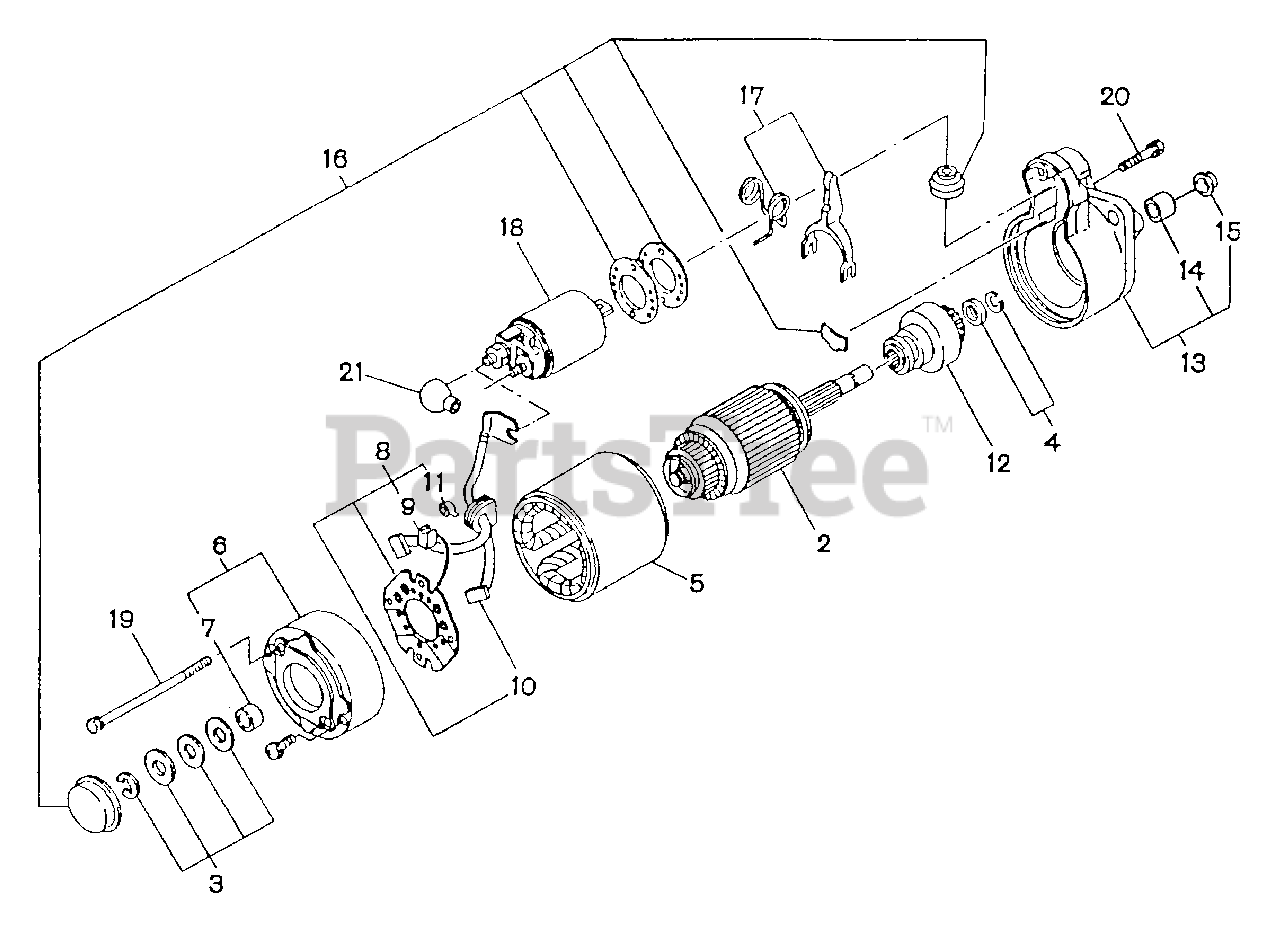

580.328301 (1335-1) - Craftsman 10,000 Watt Portable Generator Starter Motor Assembly Parts Diagram

10,000 Watt Portable Generator

Starter Motor Assembly Parts Diagram

  • Title

1

Briggs & Stratton 26370502A0

STARTING MOTOR ASSY

Note: (Includes items 1 thru 21)

$

$

Currently unavailable

2

Briggs & Stratton 2637051008

ARMATURE ASSY

$

$

Currently unavailable

3

Briggs & Stratton 2637055008

THRUST WASHER KIT

$

$

Currently unavailable

4

Briggs & Stratton 2107053408

PINION STOPPER SET

$

$

Currently unavailable

5

Briggs & Stratton 2557058008

YOKE ASSY

$

$

Currently unavailable

6

Briggs & Stratton 2637050508

REAR COVER ASSY

Note: (Includes item 7)

$

$

Currently unavailable

7

-----

UNKNOWN

$

$

Not available

8

Briggs & Stratton 2557053108

BRUSH HOLDER ASSY

Note: (Includes items 9 thru 11)

$

$

Currently unavailable

9

Briggs & Stratton 2287051408

BRUSH (-)

$

$

Currently unavailable

10

Briggs & Stratton 2557055108

BRUSH SET

$

$

Currently unavailable

11

Briggs & Stratton 2287051608

BRUSH SPRING

$

$

Currently unavailable

12

Briggs & Stratton 2557052108

PINION ASSY

$

$

Currently unavailable

13

Briggs & Stratton 2637050008

GEAR CASE ASSY

Note: (Includes items 14 and 15)

$

$

Currently unavailable

14

-----

UNKNOWN

$

$

Not available

15

-----

UNKNOWN

$

$

Not available

16

Briggs & Stratton 2557057008

DUST COVER KIT

$

$

Currently unavailable

17

Briggs & Stratton 2437052508

SHIFT LEVER KIT

$

$

Currently unavailable

18

Briggs & Stratton 2637051508

MAGNETIC SWITCH ASSY

$

$

Currently unavailable

19

Briggs & Stratton 2077052408

THROUGH BOLT

$

$

Currently unavailable

20

Briggs & Stratton 2637055108

BOLT

$

$

Currently unavailable

21

Briggs & Stratton 2637055208

M TERMINAL COVER

$

$

Currently unavailable
