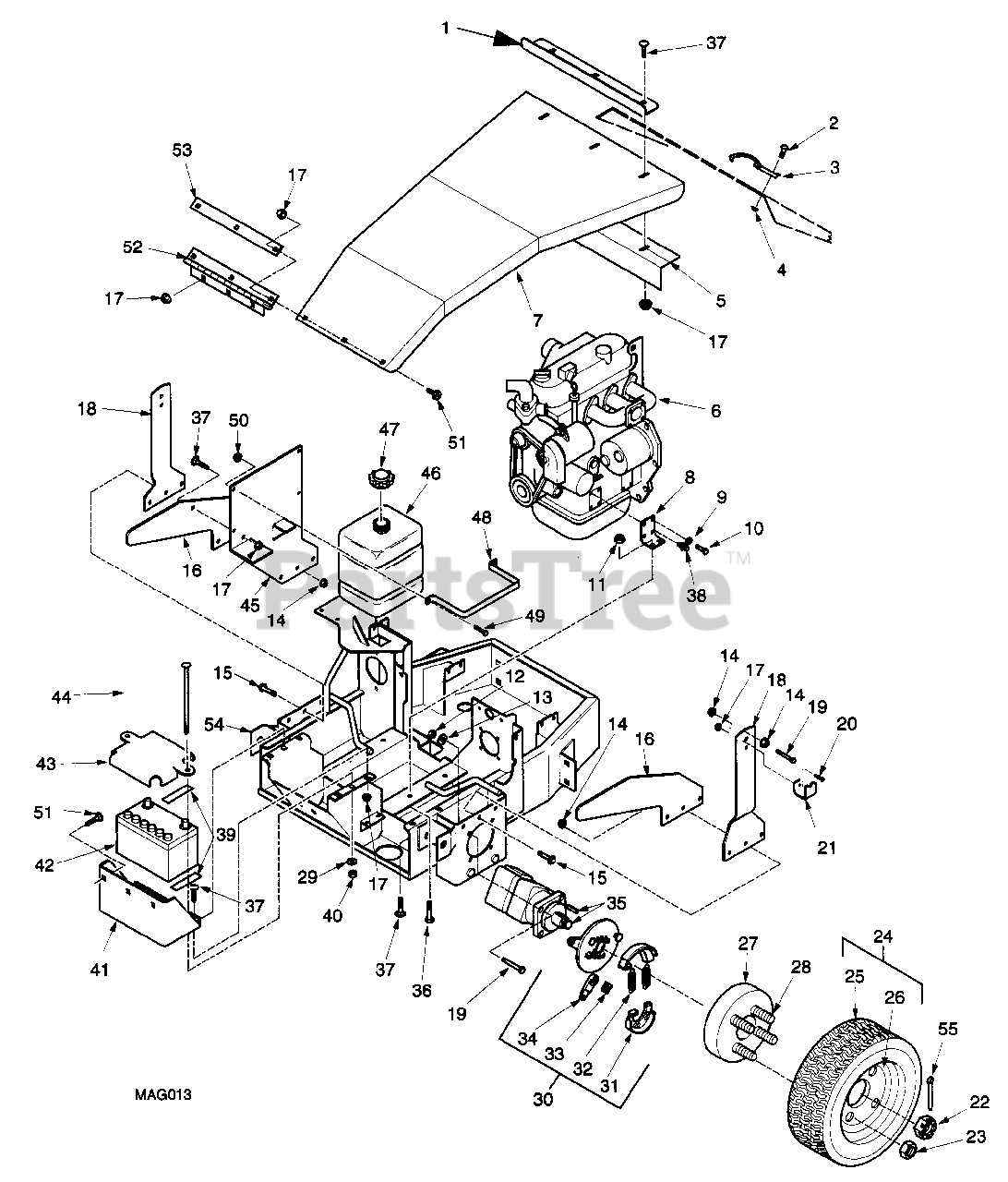

MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) ENGINE DECK Parts Diagram

Magnum III Three-Wheel Riding Mower

ENGINE DECK Parts Diagram

  • Title

1

Scag 422002

CATCH, HOOD LATCH

$

$

Not available

2

Scag 04010-01

SCREW, ROUND HEAD WASHER, #10-32 X 1/2

$0.99

$

In Stock, Qty 20+

0

3

Scag 481309

LATCH, HOOD

$59.99

$

In Stock, only 1 left!

0

4

Scag 04020-01

HEX NUT, #10-32

$8.99

$

In Stock, Qty 20+

0

5

Scag 421801

STIFFENER, HOOD

$12.99

$

Usually ships in 2-12 days

0

6

ENGINE, KUBOTA, 28 HP DIESEL

Note: AVAILABLE THROUGH THE ENGINE MANUFACTURER ONLY.

$

$

Not available

7

Scag 421800

HOOD

$

$

Not available

8

Scag 421802

MOUNTING PLATE, ENGINE

$58.99

$

Usually ships in 2-12 days

0

9

Scag 04030-05

LOCKWASHER, 7/16

$0.99

$

In Stock, Qty 14

0

10

Scag 04002-10

BOLT, HEX HEAD, M10 - 1.25 X 25

$0.99

$

Usually ships in 2-12 days

0

11

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 9

0

12

Scag 04020-07

HEX NUT, 1/2-13

$0.99

$

In Stock, only 3 left!

0

13

Scag 04030-06

LOCKWASHER, 1/2

$0.99

$

In Stock, only 2 left!

0

14

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 20+

0

15

Scag 04017-38

SERR. FL. HEX HEAD CAPSCREW, 1/2-13 X 1-1/2

$3.49

$

Usually ships in 2-12 days

0

16

Scag 421782

STOP, CUTTER DECK

$25.99

$

Usually ships in 2-12 days

0

17

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

18

Scag 421806

ANCHOR, DECK SPRING

$

$

Not available

19

Scag 04001-52

BOLT, HEX HEAD, 1/2-13 X 2-1/2

$1.99

$

In Stock, only 1 left!

0

20

Scag 04017-16

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

21

Scag 422027

RETAINER, SPRING

$

$

Not available

22

Scag 48680

CASTLE NUT, 1.0-20 UNEF

$17.99

$

In Stock, only 2 left!

0

23

Scag 04028-01

NUT, WHEEL

$1.49

$

In Stock, Qty 14

0

24

Scag 481205

WHEEL ASSEMBLY(INCLUDES 25, 26)

$578.99

$

Usually ships in 2-12 days

0

25

Scag 481205-02

TIRE, 23 X 1050 - 12, 4-PLY

$

$

Not available

26

Scag 481205-03

RIM

$215.99

$

Usually ships in 2-12 days

0

27

Scag 46825

HUB, WHEEL(INCLUDES 28)

$454.99

$

Usually ships in 2-12 days

0

28

Scag 04008-01

BOLT, HUB

$3.99

$

In Stock, Qty 20+

0

29

Scag 04040-15

FLAT WASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 9

0

30

Scag 48461

PARKING BRAKE ASSEMBLY(INCLUDES 31,32,33,34)

$318.99

$

Usually ships in 2-12 days

0

31

Scag 48461-02

BRAKE PADS - PAIR

$149.99

$

Usually ships in 2-12 days

0

32

Scag 48461-03

SPRINGS - PAIR

$14.99

$

Usually ships in 2-12 days

0

33

Scag 48461-05

CLIP

$4.99

$

Usually ships in 2-12 days

0

34

Scag 48461-04

ACTUATING ARM

$149.99

$

Usually ships in 2-12 days

0

35

Scag 48769

MOTOR, HYDRAULIC - WHITE(INCLUDES 22)

$2963.99

$

Usually ships in 2-12 days

0

36

Scag 04001-28

BOLT, HEX HEAD, 7/16-14 X 1-1/4

$0.99

$

In Stock, Qty 12

0

37

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

38

Scag 43394

STUD, METRIC

$17.99

$

Usually ships in 2-12 days

0

39

Scag 48205

PAD, RUBBER

$4.49

$

Usually ships in 2-12 days

0

40

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

41

Scag 421798

BATTERY BOX

$

$

Not available

42

Scag 481177

BATTERY

$

$

Not available

43

Scag 421799

HOLD DOWN, BATTERY

$44.99

$

Usually ships in 2-12 days

0

44

Scag 04003-20

CARRIAGE BOLT, 5/16-18 X 10

$14.99

$

Usually ships in 2-12 days

0

45

Scag 421781

SUPPORT BRACKET, HYDRAULIC TANK

$54.99

$

Usually ships in 2-12 days

0

46

Scag 48711

HYDRAULIC TANK

$386.99

$

Usually ships in 2-12 days

0

47

Scag 481164

CAP, HYDRAULIC TANK

$18.99

$

In Stock, only 4 left!

0

48

Scag 421288

STRAP, HYDRAULIC TANK

$25.99

$

Usually ships in 2-12 days

0

49

Scag 04017-05

SERR. FL. HEX HEAD CAPSCREW, 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

51

Scag 04003-14

CARRIAGE BOLT, 5/16-18- 1/2

$0.99

$

In Stock, Qty 8

0

52

Scag 481165

HINGE

$

$

Not available

53

Scag 421783

PLATE, HINGE

$9.99

$

Usually ships in 2-12 days

0

54

Scag 45692

ENGINE DECK

$

$

Not available

55

Scag 04061-04

PIN, COTTER, 5/32 X 1-1/2

$

$

Currently unavailable
